Stellar Technology MIN802 Series

Stellar Technology MIN802 Series
Stellar Technology MIN802 Series
Stellar Technology MIN802 Series
  • Stellar Technology

Product Features

  • Miniature compression load cell
  • Shock and vibration resistant
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.005% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Renewables

Description

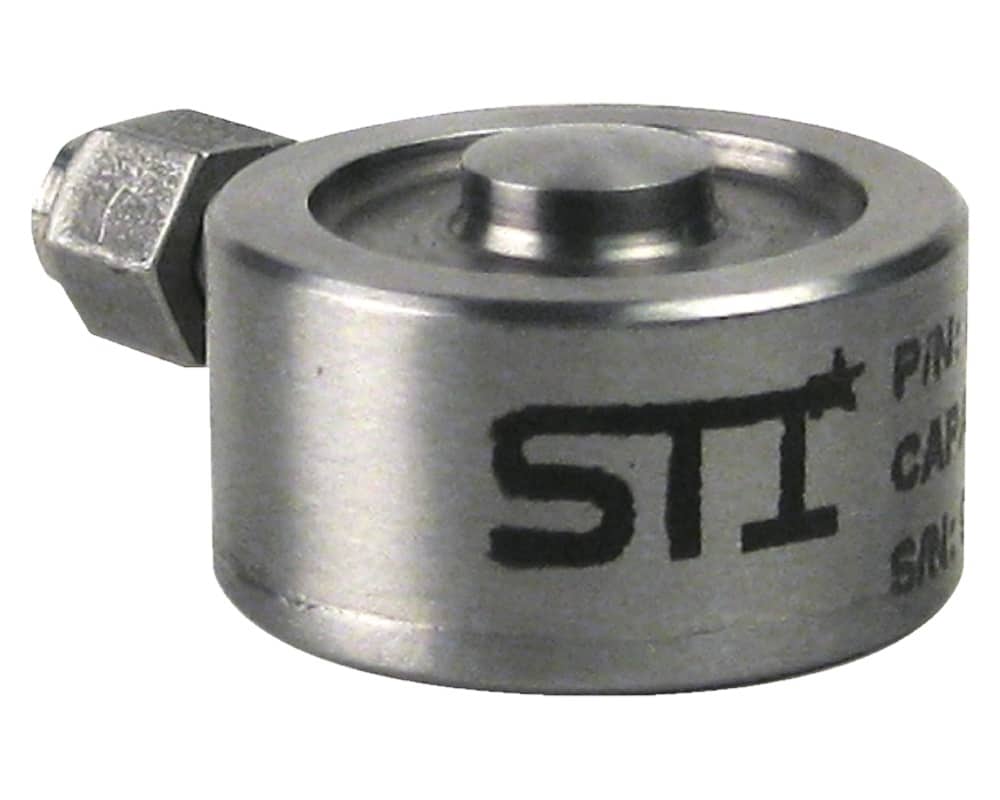

The MIN802 miniature compression load cell from Stellar Technology offers maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs with accuracy of ±0.25% BFSL. These compact-sized bonded foil strain gauged force sensors provide reliable performance for demanding application conditions. They are constructed of all welded stainless steel and have a machined load button that is an integral part of the sensing element.

  • Miniature compression load cell
  • Maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • Accuracy of ±0.25% BFSL
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.005% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±1% FSO
  • Shock and vibration resistant
  • Each unit comes with 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN802 series include:

  • Multiple mounting configurations
  • Customer specified cable lengths
  • Metric versions
  • Special calibration
  • Temperature range (mV/V unit) −65°F (-53.9°C) to +400°F (+121.1°C)

Potential markets for the Stellar Technology MIN802 series include:

  • Aerospace
  • Industrial automation
  • Defence systems
  • Alternative energy

Specifications

Weight 0.00000 kg
Dimensions 1.63 × 1.63 × 0.73 mm
Accuracy

Options

Series / Model

Output

Temperature Range (°C)

Capacity

, , , ,

Stellar Technology MIN802 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology MIN802 miniature compression load cell datasheet
