Stellar Technology MIN835 Series

Stellar Technology MIN835 Series
Stellar Technology MIN835 Series
Stellar Technology MIN835 Series
  • Stellar Technology

Product Features

  • High capacity miniature tension and compression load cell
  • Shock and vibration resistant
  • Variety of mounting configurations
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.005% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Subsea

Description

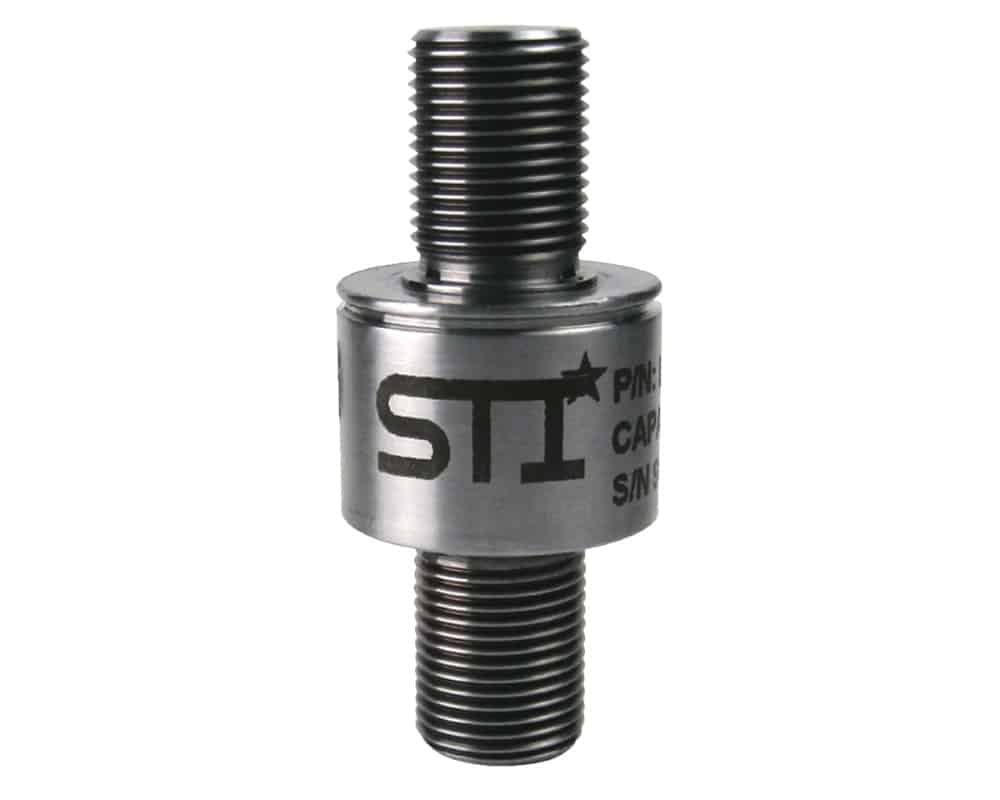

The MIN835 high capacity miniature tension and compression load cell from Stellar Technology offers maximum load ranges of 2k lbs, 3k lbs, 5k lbs, 7.5k lbs and 10k lbs with an accuracy of ±0.2% BFSL. Constructed of all welded stainless steel, these bonded foil strain gauged force sensors provide reliable performance for demanding applications and come in a variety of mounting configurations. The MIN835 series from Stellar Technology are ideal for high capacity applications where size constraints limit many load cell configurations.

  • High capacity miniature tension and compression load cell
  • Maximum load ranges of 2k lbs, 3k lbs, 5k lbs, 7.5k lbs and 10k lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • Accuracy of ±0.2% BFSL
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.005% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±1% FSO
  • Shock and vibration resistant
  • Each unit comes with a 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN835 series include:

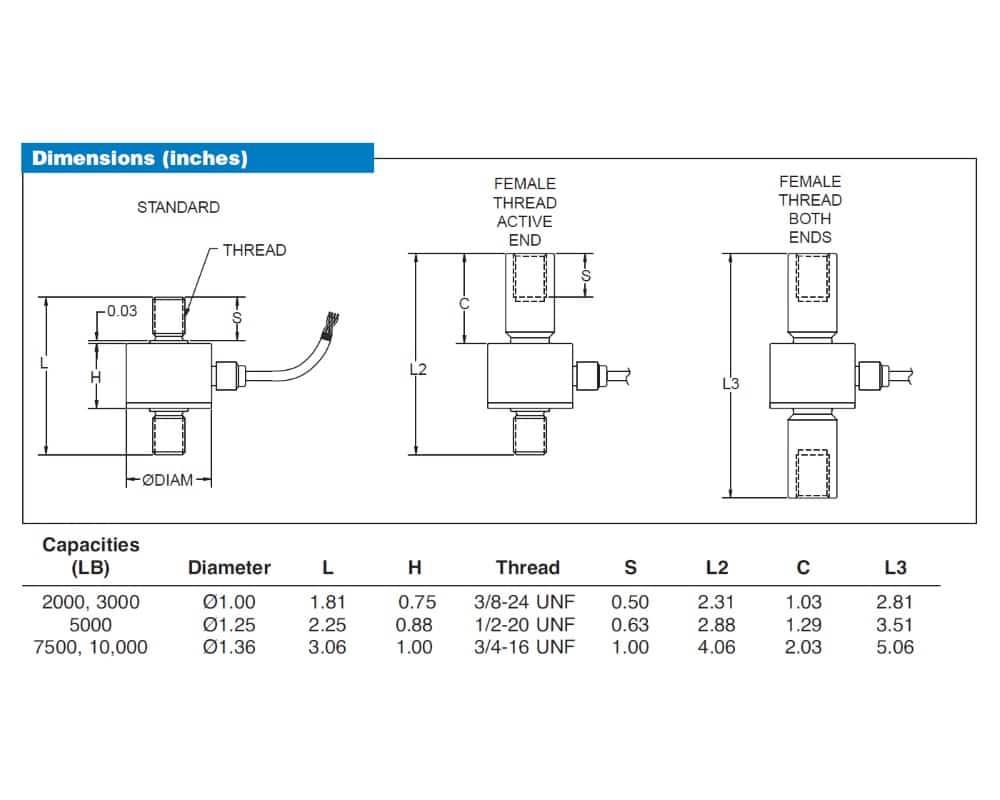

  • Multiple mounting configurations
  • Metric versions
  • Special calibration
  • Customer mounting threads and cable lengths
  • Operating Temperature range (mV/V unit) −65°F (-53.9°C) to +400°F (+204.4°C)

Potential markets for the Stellar Technology MIN835 series include:

  • Defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Oil and Gas, process
  • Subsea, test and measurement
  • Transportation and automotive

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Output

Temperature Range (°C)

Capacity

, , , ,

Stellar Technology MIN835 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology MIN835 high capacity miniature tension and compression load cell datasheet
