Stellar Technology MIN840 Series

Stellar Technology MIN840 Series
Stellar Technology MIN840 Series
Stellar Technology MIN840 Series
  • Stellar Technology

Product Features

  • High accuracy miniature tension or compression load cell
  • Shock and vibration resistant
  • Variety of mounting configurations available
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.005% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Subsea

Description

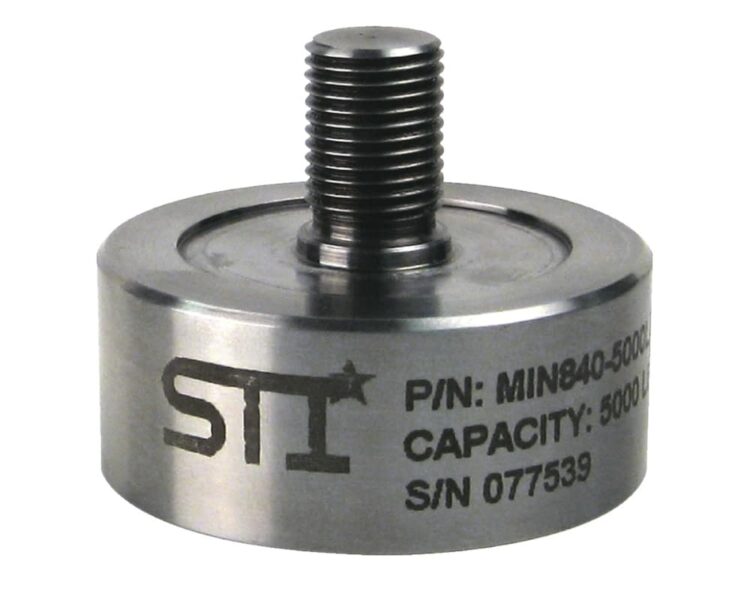

The MIN840 high accuracy miniature tension or compression load cell from Stellar Technology offers maximum load ranges of 250lbs, 500lbs, 1000lbs, 2500lbs and 5000lbs with an accuracy of ±0.15% BFSL. Constructed of all welded stainless steel, these bonded foil strain gauged force sensors provide reliable performance for demanding application environments and come in a variety of mounting configurations. The MIN835 series from Stellar Technology come with internal modules which provide high level analog or digital outputs.

  • High accuracy miniature tension or compression load cell
  • Maximum load ranges of 250lbs, 500lbs, 1000lbs, 2500lbs and 5000lbs
  • Temperature range −40°F (-40°C) to +250°F (+121.1°C)
  • Accuracy of ±0.2% BFSL
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.005% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±1% FSO
  • Shock and vibration resistant
  • Each unit comes with a 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN840 series include:

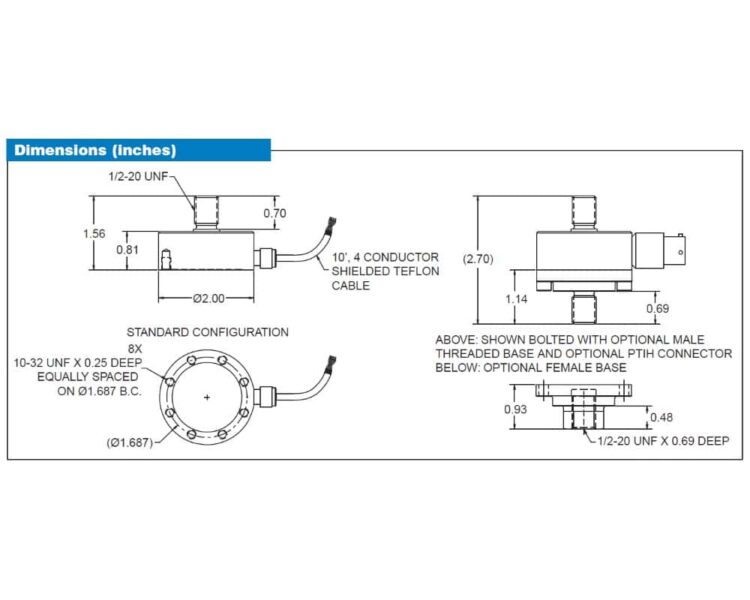

  • Multiple mounting configurations
  • Metric versions
  • Analog (4-20mA, 0-5Vdc, 0-10Vdc) and Digital (RS232, RS485, MODbus, CANbus) outputs
  • Special calibration
  • Customer specified cable lengths
  • Operating Temperature range −40°F (-53.9°C) to +400°F (+204.4°C)

Potential markets for the Stellar Technology MIN840 series include:

  • Aerospace, defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Process
  • Subsea, test and measurement
  • Transportation and automotive

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Output

Temperature Range (°C)

Capacity

, , , , ,

Stellar Technology MIN840 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology MIN840 high accuracy miniature tension or compression load cell datasheet
