Product Features

  • Miniature tension and compression load cell
  • Shock and vibration resistant
  • All welded stainless steel construction
  • Standard calibration (tension only) of 5 points (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.005% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±3% FSO

Applications

  • Renewables

Description

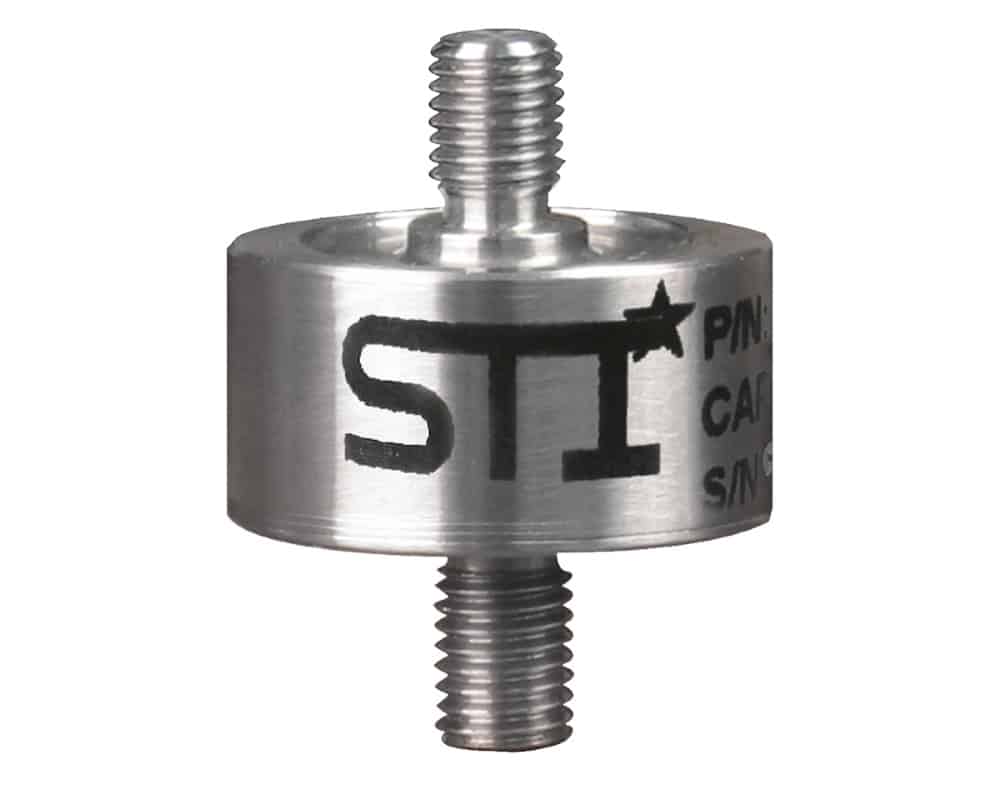

The MIN800 miniature tension and compression load cell from Stellar Technology offers maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs with accuracy of ±0.25% BFSL. The MIN800 series from Stellar Technology are general purpose load cells being compact sized for both tension and compression applications, these miniature load cells are designed to minimise the effects of off-axis loading. Constructed of all welded stainless steel and are also configured as through-hole load washers which makes these highly adaptable.

  • Miniature tension and compression load cell
  • Maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • Accuracy of ±0.25% BFSL
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.005% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±3% FSO
  • Shock and vibration resistant
  • 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN800 series include:

  • Multiple mounting configurations
  • Customer specified cable lengths
  • Metric versions
  • Special calibration
  • Female threads, custom interface
  • Temperature range (mV/V unit) −65°F (-53.9°C) to +400°F (+121.1°C)

Potential markets for the Stellar Technology MIN800 series include:

  • Aerospace
  • Industrial automation
  • Defence systems
  • Alternative energy

Specifications

Weight 0.00000 kg

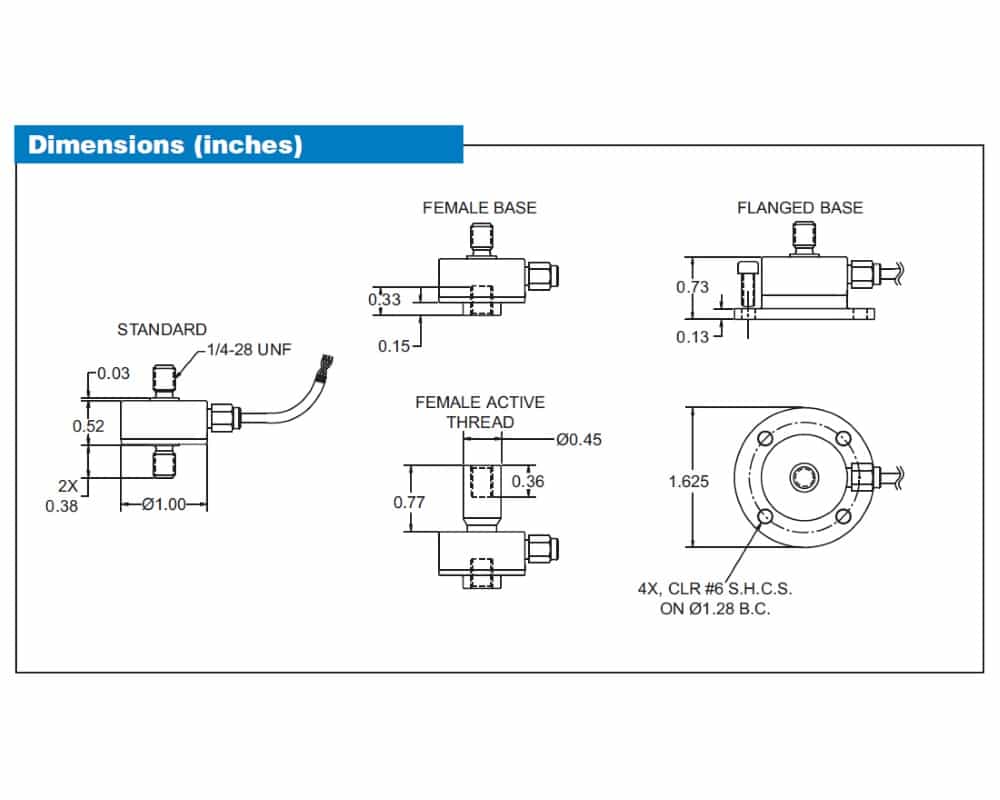

Dimensions 1.63 × 1.63 × 0.73 mm
Accuracy

Options

Series / Model

Additional Features

Miniature tension and compression load cellShock and vibration resistantAll welded stainless steel constructionStandard calibration (tension only) of 5 points (0, 50%, 100%, 50%, 0)Temperature effect

Temperature Range (°C)

Output

Capacity

, , , ,

Stellar Technology MIN800 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology MIN800 miniature tension and compression load cell datasheet
