Compression Load Washer Load Cells

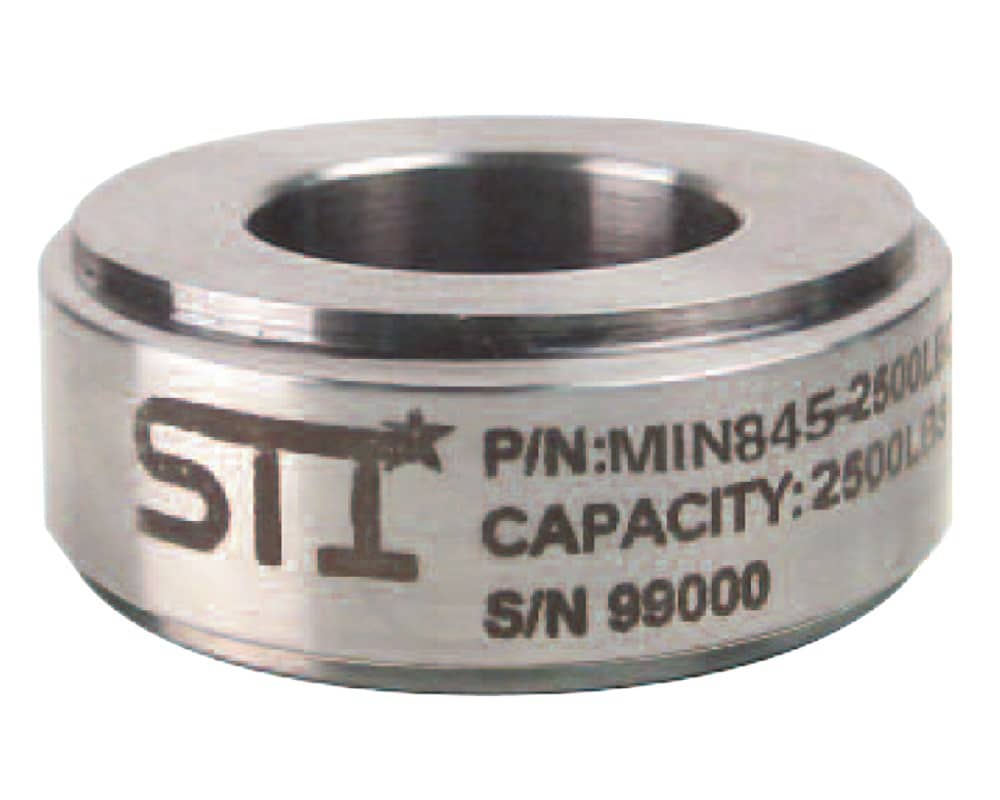

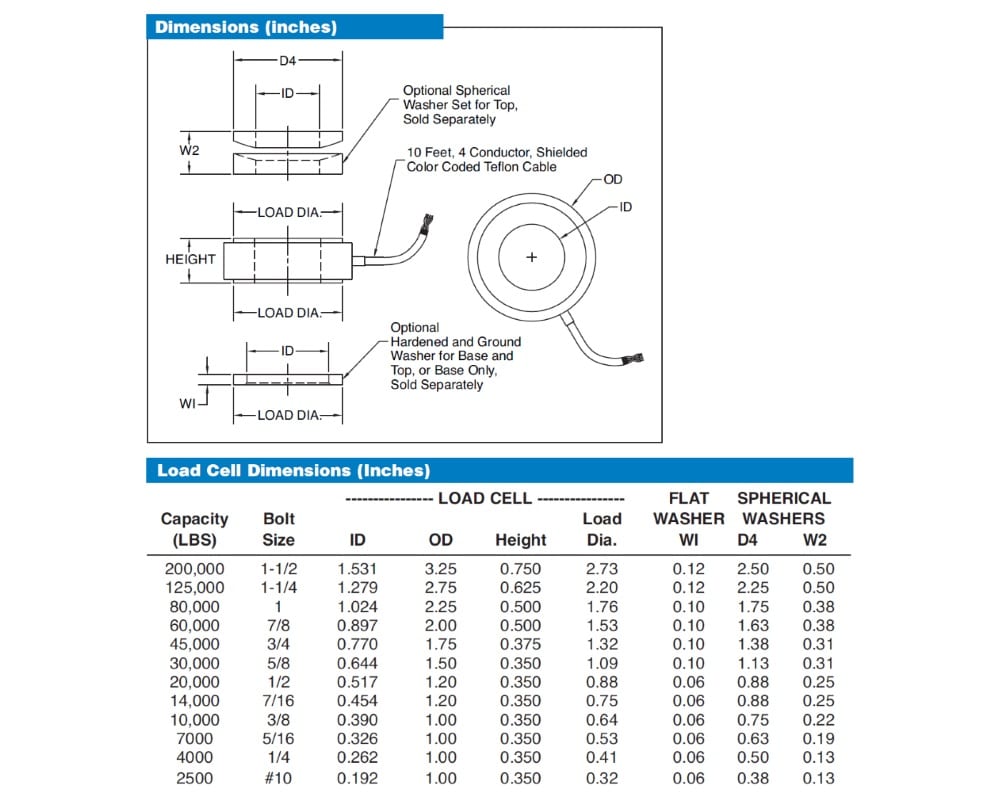

The MIN845 miniature compression load washer from Stellar Technology offers maximum load ranges from 2.5k lbs to 200k lbs with an accuracy of ±2% BFSL. These miniature through-hole configurations are often used for measuring tension on fasteners. Constructed of stainless steel, these bonded foil strain gauge force sensors are available in a wide selection of both standard and special outside/inside diameters. The MIN845 series from Stellar Technology can be used with Stellar Technology’s selection of in-line and DIN rail mount signal conditioners to provide current or voltage outputs.

• Miniature compression load washer
• Maximum load ranges from 2.5k lbs to 200k lbs
• Temperature range −40°F (-40°C) to +250°F (+121.1°C)
• Accuracy of ±2% BFSL
• Electrical output of 2mV/V (nominal)
• All stainless steel construction
• Temperature effect on zero of ±0.01% FSO/°F
• Temperature effect on span of ±0.01% reading/°F
• Zero balance of ±3% FSO
• Shock and vibration resistant
• Each unit comes with a 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN845 series include:

• Custom sizes
• Metric versions
• Special calibration
• Custom cable lengths
• Operating Temperature range −65°F (-53.9°C) to +400°F (+204.4°C)

Potential Markets for the Stellar Technology MIN845 series include:

• Aerospace, defence systems
• Alternative energy, industrial automation
• Medical and pharmaceutical, power generation
• Oil and Gas, process
• Subsea, test and measurement
• Transportation and automotive
