Coto CT10 Series

  • Coto Technology

Product Features

  • Surface mount moulded switch
  • Carry current DC 0.5A (max)
  • Ideal for SMD pick and place
  • Rugged encapsulation

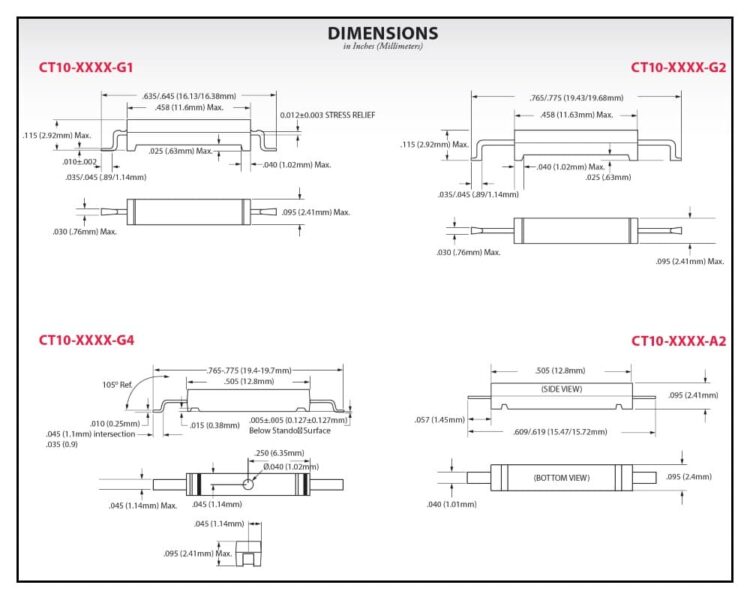

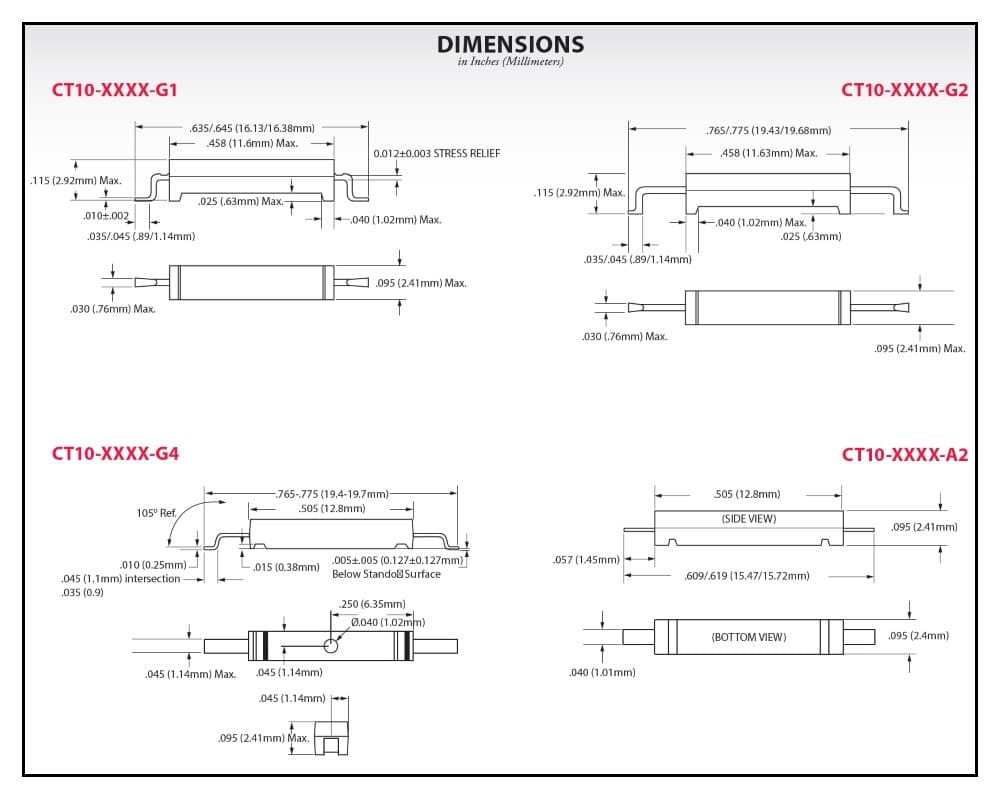

  • Available in gull wing and axial configurations
  • Tape and reel packaging available
  • Temperature range −40°C to +125°C

Applications

  • Compliant

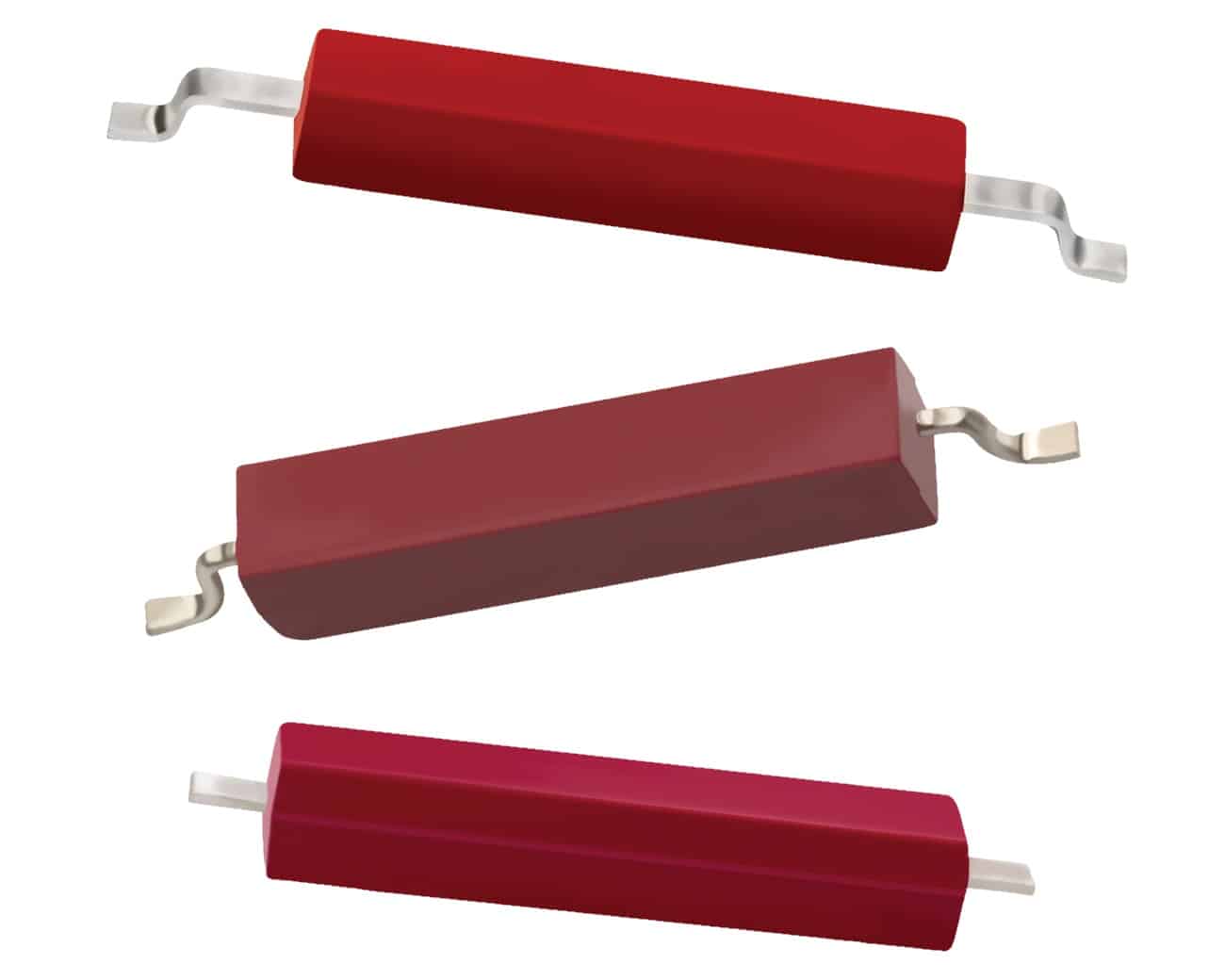

The CT10 is a moulded dry reed switch from Coto. It is single-pole, single throw (SPST) type, having normally open ruthenium contacts. It has a total operating range of 10AT to 40AT with a release range of 3AT to 35AT and a switched power of 10W (max). The CT10 series is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The device is designed with rugged encapsulation, excellent life and reliability, SMD mounting and is available in axial or gull wing configurations. The CT10 series is ideally suited to the needs of proximity sensing, security alarm sensor, level sensor, flow sensor and pulse counter.

  • Moulded dry reed switch
  • Total operating range 10AT to 40AT
  • Switched power 10W (max)
  • Release range 3AT to 35AT
  • Switched voltage DC 200V (max) and AC RMS value 140V (max)
  • Switched current DC 500mA (max) and AC RMS value 500mA (max)
  • Ideal for SMD pick and place
  • Temperature range −40°C; to +125°C
  • Available in axial or gull wing configurations
  • Tape and reel packaging



Typical Applications include:

  • Proximity sensing
  • Security alarm sensor
  • Level sensor
  • Flow sensor
  • Pulse counter



The below table gives the full specifications of the Coto CT10 magnetic sensor series:

Coto CT10 Specifications



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
AT Range

, , , , , , , , ,

Operating Current

Operating Range

Power Rating

Release Range

Series / Model

Switching Voltage

,

Termination / Connection

, ,
