NVE AHT923-14E

  • NVE

Product Features

  • Low voltage, nanopower TMR digital switch
  • In-plane direction of sensitivity
  • Omnipolar – output is activated if magnetic field of either polarity is applied
  • Continuous operation for low noise and high-speed
  • Ultrasensitive operate point, as low as 3.2mT

Applications

  • Compliant

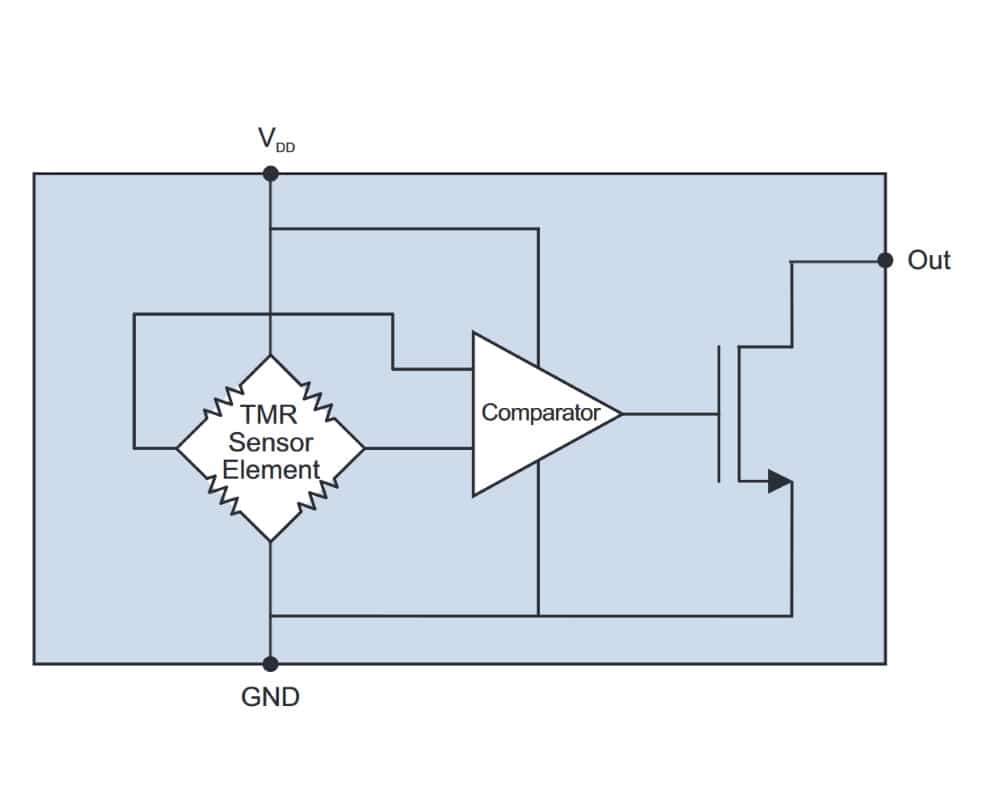

The revolutionary AHT923-14E TMR magnetic digital switch from NVE combines low voltage, nanopower and high speed, designed for continuous operation for low noise and high speed applications. It utilises Tunneling Magnetoresonance (TMR) technology and features low supply voltage of 0.9 – 1.8V for single-cell operation, the lowest quiescent current available in a continuous-duty solid state magnetic switch of 1μA typical and sensitive and extremely stable operate points as low as 3.2mT. These sensor devices have the output configured as a “switch” – the output turns on when the magnetic field of any polarity is applied and turned off when the magnetic field is removed. The AHT923-14E digital switches are available in a leadless ultraminiature ULLGA package size 1.1×1.1mm.

  • Low voltage, nanopower TMR digital switch
  • Omnipolar magnetic switch with output turning on when magnetic field is applied
  • 0.9 – 1.8V operating voltage for single-cell operation
  • Quiescent current as low as 1μA typical
  • Continuous operation for low noise and high speed
  • Operate points offering sensitivity as low as 3.2mT, and stability over supply voltage and temperature
  • Temperature range of −40°C to +85°C

Typical applications for the AHT series include:

  • Single-cell battery or harvested power applications
  • Gas and water meters
  • Portable instruments
  • Wearable electronics
  • High speed limit switches
  • Mechatronics
  • Linear and rotary actuation systems

The below table gives the full specifications of the NVE AHT digital TMR switches, including AHT923-14E:

NVE AHT Series Specifications

Specifications

Weight 0.00100 kg
Dimensions 0.40 x 1.10 x 1.10mm
Package / Size

Series / Model

Supply Voltage

0.9 to 1.8V

Temperature Range (°C)

-40 to +85°C

NVE AHT Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
NVE AHT digital TMR switch series datasheet
Package, tape-and-reel and pad layout specifications
Power supply bypass capacitor selection
Pb free and S-Pb solder profiles
Diametrically-Magnetised Magnets – Perfect for magnetic angle & rotation sensing
Glossary terms
