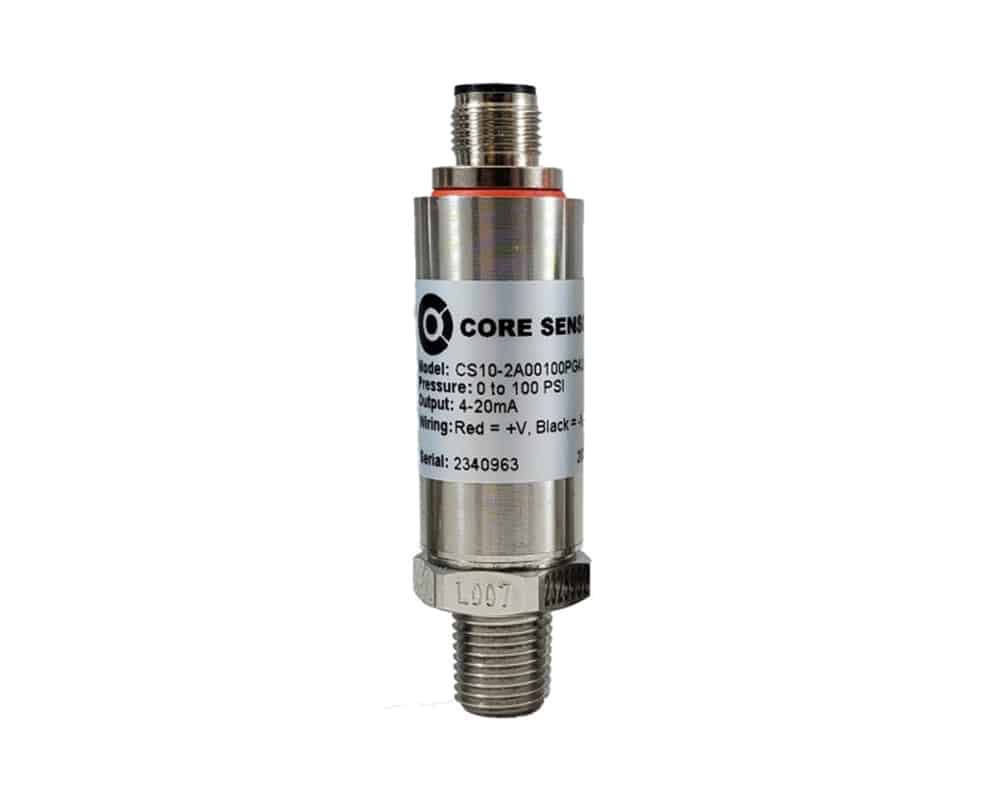

Core Sensors CS10 Series

Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
Core Sensors CS10 Series
  • Core Sensors

Product Features

  • Industrial pressure transducer
  • Pressure ranges from vacuum up to 45,000 PSI
  • Accuracy down to ≤ ±0.25% BFSL
  • Stability (1 year) of ≤ ±0.25% of FS
  • Overpressure of 2x minimum
  • Temperature range from -40°C to +85°C
  • Media Temperature from -40°C to +120°C

Applications

  • Compliant

Description

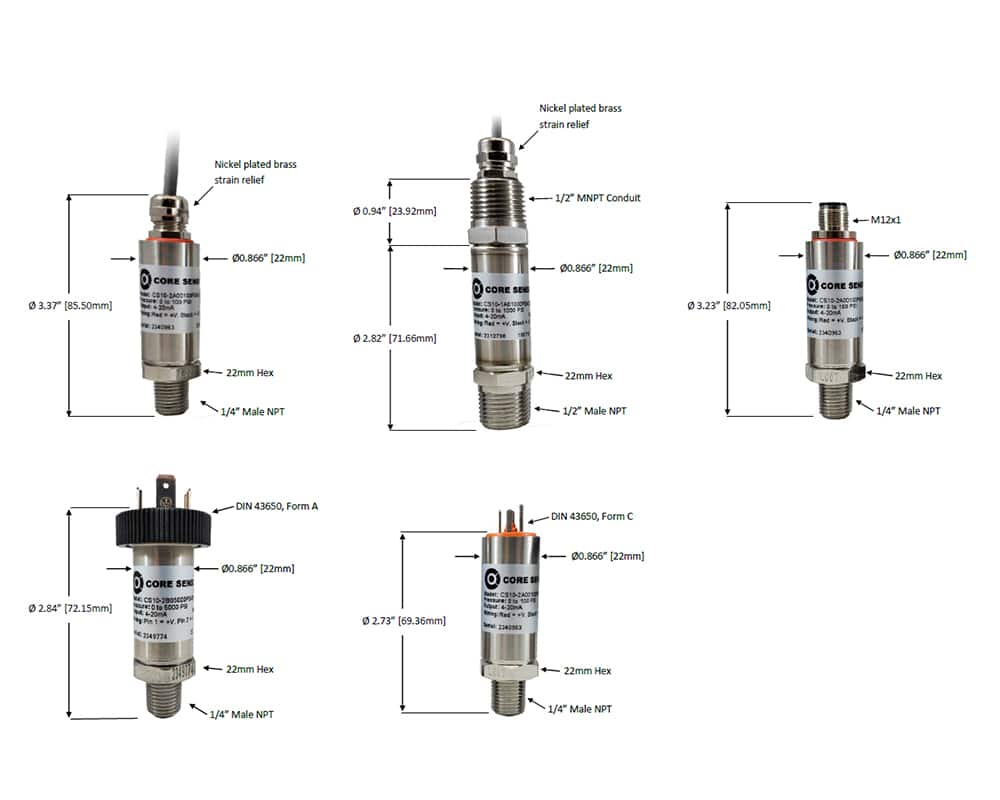

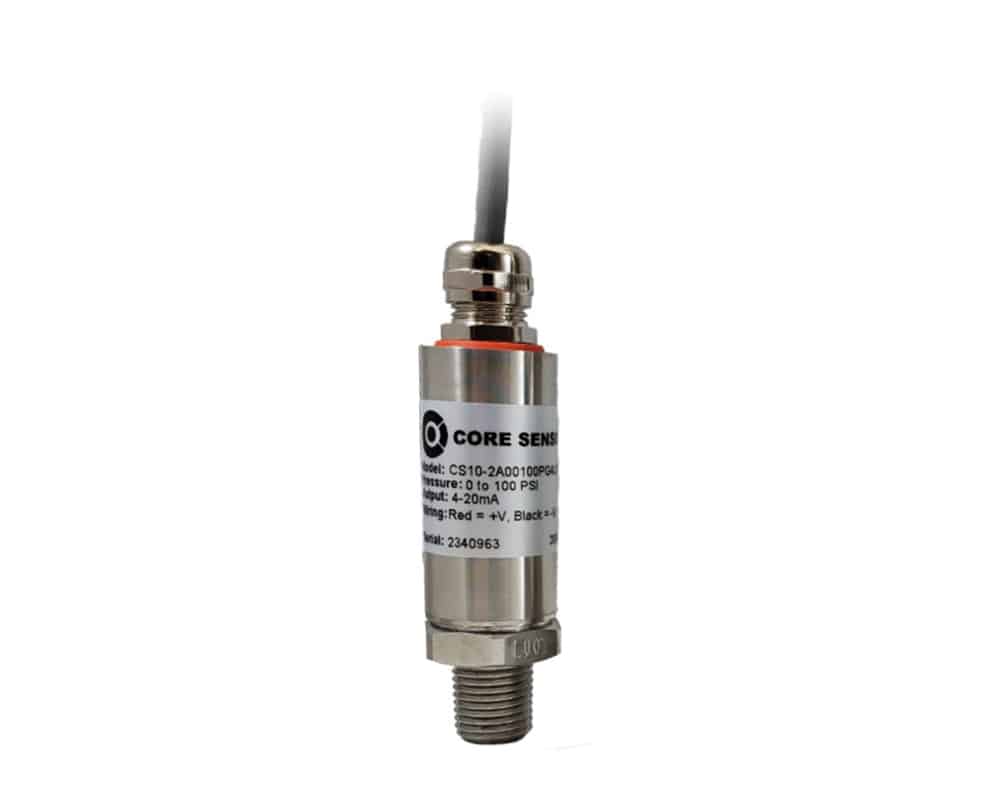

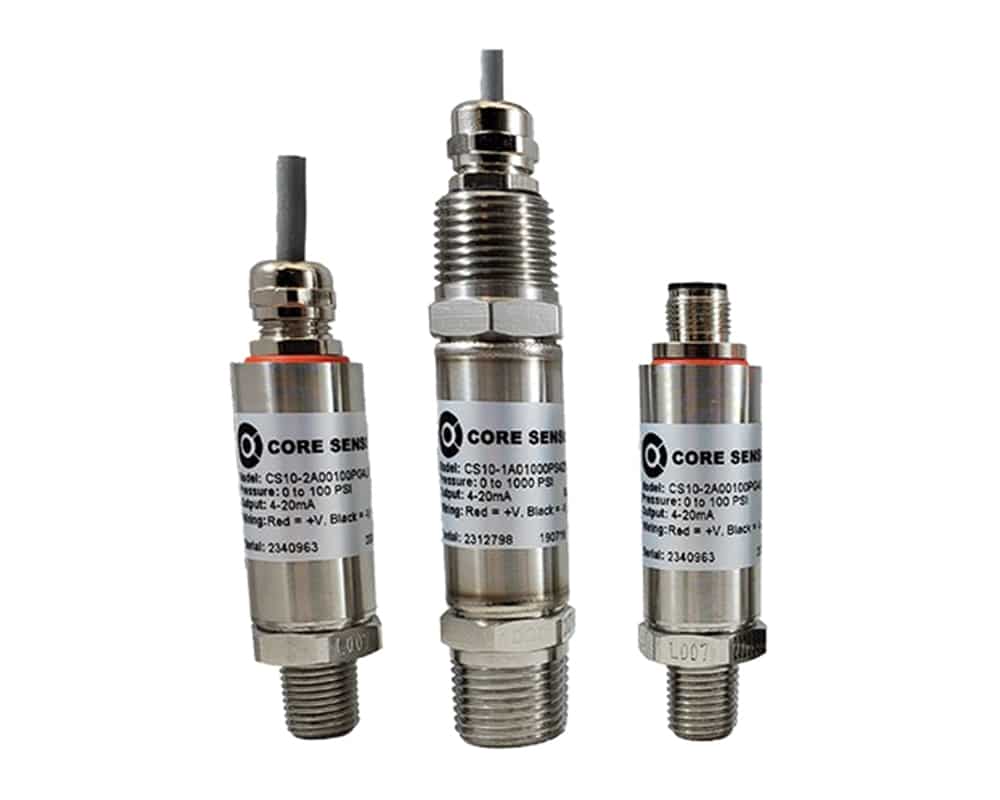

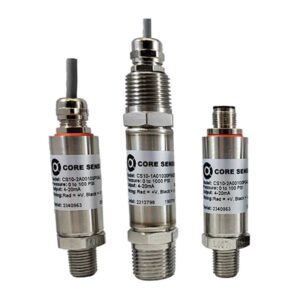

The CS10 industrial pressure transducer series from Core Sensors is designed for demanding applications by offering a robust package and a variety of customisations to suit various requirements. Available pressures from vacuum to 45,000 PSI with an accuracy of ≤±0.25% BFSL. The CS10 utilises MEMS silicon strain gauges mounted to a stainless steel or nickel alloy sensing element as well as ASIC electronics with analog voltage or 4-20mA loop powered output signals. Various process connection wetted materials are available including 17-4PH, 316L SS and nickel alloys (Hastelloy C276 or Inconel 718). This sensor series has an operating temperature range of -40°C to +85°C with a media temperature range of -40°C to +120°.

The CS10 is a highly configurable pressure sensor series making these some of the best options for demanding industrial and hazardous applications, where ruggedness and reliability are top priority. With various threaded connection sizes, pressure ranges, electrical connections including integral cable or connectors, wetted materials to ensure adequate compatibility, and numerous output signal options, allows Core Sensors to customise the CS10 to solve just about any measurement challenge.

  • Industrial pressure transducer
  • Pressure ranges from vacuum up to 45,000 PSI
  • Accuracy down to ≤ ±0.25% BFSL
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 100 million
  • Overpressure of 2x minimum
  • Burst pressure of 5x or 60,000 PSI (whichever is less)
  • Electrical output options of Current, Voltage, Ratiometric Voltage, Low Power Voltage & Millivolt
  • Temperature range from -40°C to +85°C
  • Media Temperature from -40°C to +120°C
  • EMI / RFI protection
  • Oxygen cleaning available
  • Optional integral snubber
  • Wetted materials of 17-4PH, 316L SS or nickel alloys (Hastelloy C276 and Inconel 718)
  • Semi custom and custom designs available

Approvals for the Core CS10 series include:

  • CE

Note: CSA ordinary location available. Contact us for more information

Typical applications for the CS10 industrial pressure transducer series include:

  • Water pressure monitoring
  • Hydraulic/pneumatic equipment
  • HVAC/R controls
  • Building controls
  • Hydrogen (316L SS only)
  • Low pressure external tank level monitoring


Performance, Thermal & Environmental Specifications Table

AttributeValue
Accuracy @ 25°C *≤±0.25% BFSL
≤±0.5% BFSL (≤2 PSI & >10,000 PSI)
Stability (1 Year)≤±0.25% of FS
Pressure Cycles100 million
Overpressure2x minimum
Burst Pressure5x or 60,000 PSI (whichever is less)
Operating Temperature-40°C to +85°C
Media Temperature-40°C to +120°C
Compensated Temperature0°C to +55°C
Storage Temperature-40°C to 125°C
TC Zero≤±1% of FS
≤±2% of FS (2 PSI & below)
TC Span≤±1% of FS
≤±2% of FS (2 PSI & below)
EMI / RFI ProtectionYes
IP Rating **IP65 (minimum)

* Accuracy includes non-linearity, hysteresis and non-repeatability
** IP Rating applies when electrical connector is attached with the appropriate ingress protection and is dependent on electrical termination selected. Contact us for more information.

Electrical Specifications (Current)

AttributeValue
Outputs4 to 20mA
Excitation10 to 28VDC
Current Consumption20mA (typical)
Output Load0 to 800Ω at 10 to 28VDC
Frequency Response~250Hz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Voltage)

AttributeValue
Outputs1 to 5V
0 to 5V (3-wire)
1 to 6V
0 to 10V (3-wire)
Excitation10 to 28VDC
15 to 28VDC (0 to 10V output)
Current Consumption<10mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum


Electrical Specifications (Low Power Voltage)

AttributeValue
Outputs0.5 to 2.5V non-ratiometric
Excitation3 to 5VDC unregulated
Current Consumption≤3mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Millivolt)

AttributeValue
Outputs10mV/V
Excitation5VDC (typical)
Current Consumption<5mA
Output Impedance >1MΩ
Frequency Response~5kHz (minimum)
Zero Offset (of FS)≤±2% (maximum)
Span Tolerance (of FS)≤±2% (maximum)

Core Sensors design and manufacture high quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allows Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.com for more information.

Specifications

Series / Model

Process Connection

, , , , ,

Wetted Material

, , ,

Pressure Range

Pressure Unit

, , , ,

Pressure Type

, , , ,

Output

, , , , , , , ,

Electrical

, , , , , , , ,

Options

, ,

Lead Length

, , ,

Accuracy

,

Temperature Range (°C)

Ingress Protection

Core Sensors CS10 Series Ordering Info

Below is the model number configuration for the CS10 series from Core Sensors.

Ordering example: CS10-2A01000PS4A000-00
CS10XXXXXXXXXXXXXXXX

Series / Model (CS10)

CS10

Process Connection (X)

1
1/2” Male NPT
2
1/4” Male NPT
3
1/8” Male NPT
4
7/16-20 Male UNF
8
F250C Female Autoclave
9
1/2” Male NPT Flush Diaphragm

Wetted Material (X)

A
316L SS
B
17-4PH
C
Hastelloy® C276
D
Inconel® 718

Pressure Range (XXXXX)

Insert 5-digit pressure code, max 40,000 PSI
i.e. 00100 = 100 PS

Pressure Unit (X)

B
Bar
K
KG/CM2
M
Millibar
P
PSI
W
Inches of H2O

Pressure Type (X)

A
Absolute
C
Vacuum (sealed gauge)
G
Gauge
S
Sealed gauge
V
Vacuum (gauge)

Output (X)

1
1 to 5V
2
0.5 to 4.5V ratiometric
3
1 to 6V
4
4 to 20mA
5
0 to 5V (3-wire)
7
0 to 10V (3-wire)
8
0.5 to 2.5V non-ratiometric
9
10mV/V

Electrical (X)

A
M12x1
B
Deutsch DT04-4P
C
Packard 3-Pin
D
Mini-DIN, Form C
E
Deutsch DT04-3P
F

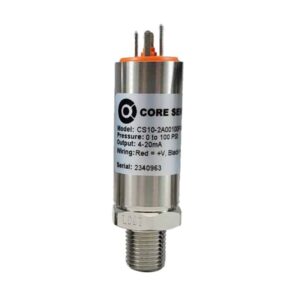

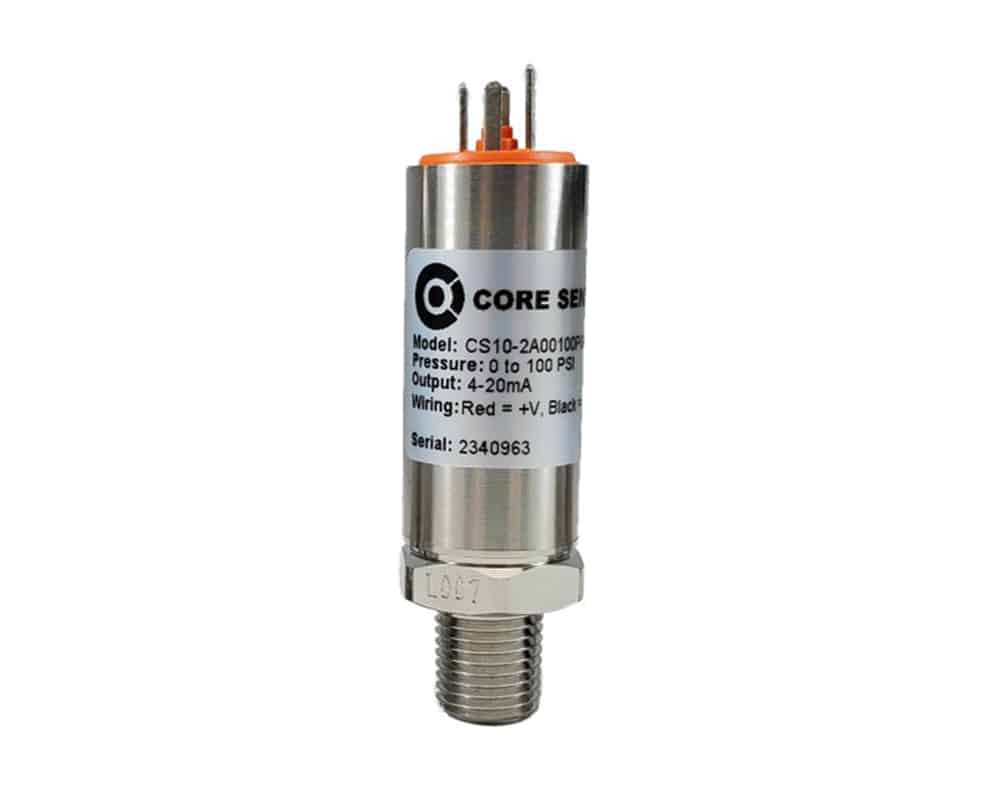

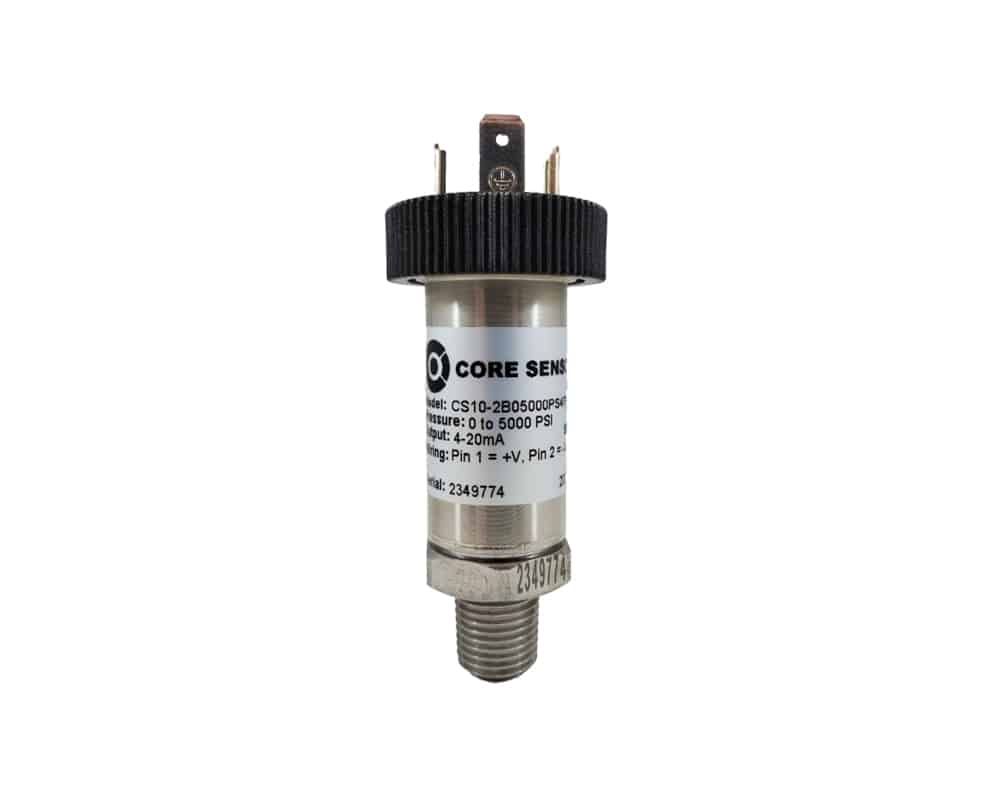

DIN 43650, Form A
G
6-Pin Bendix
L
Cable
Z

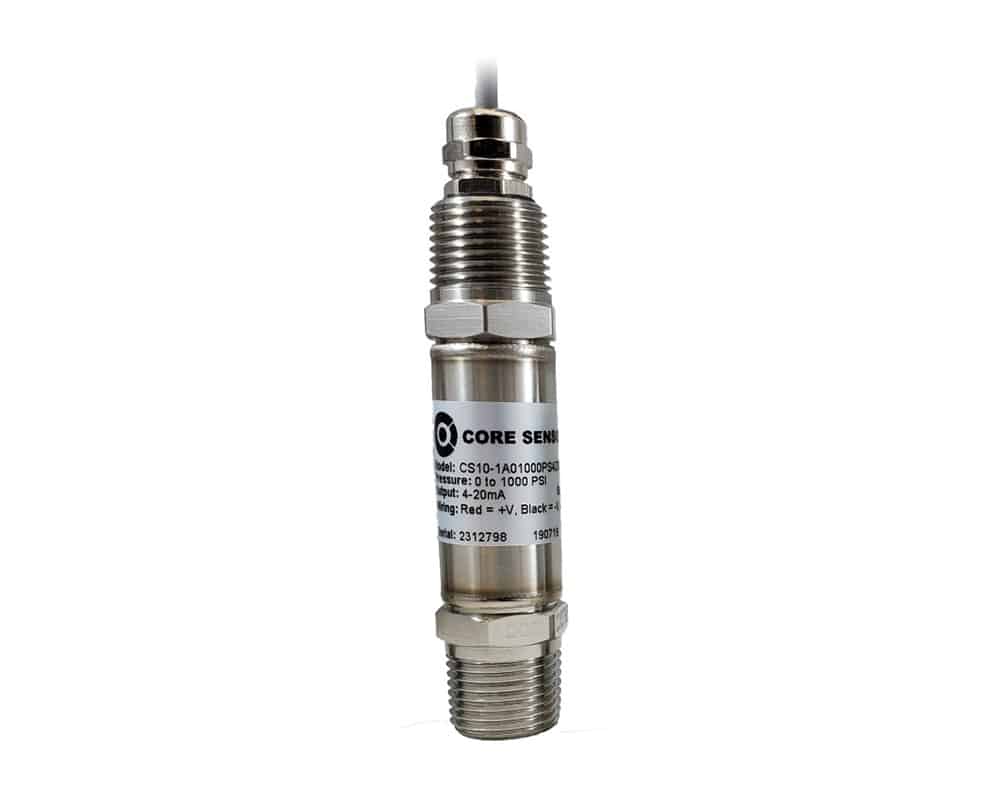

1/2″ MNPT conduit with cable

Options (XXX)

000
No special options
001
Snubber
002
2X header

Lead Length (XX)

00
No cable
01
1m
02
2m
03
3m
