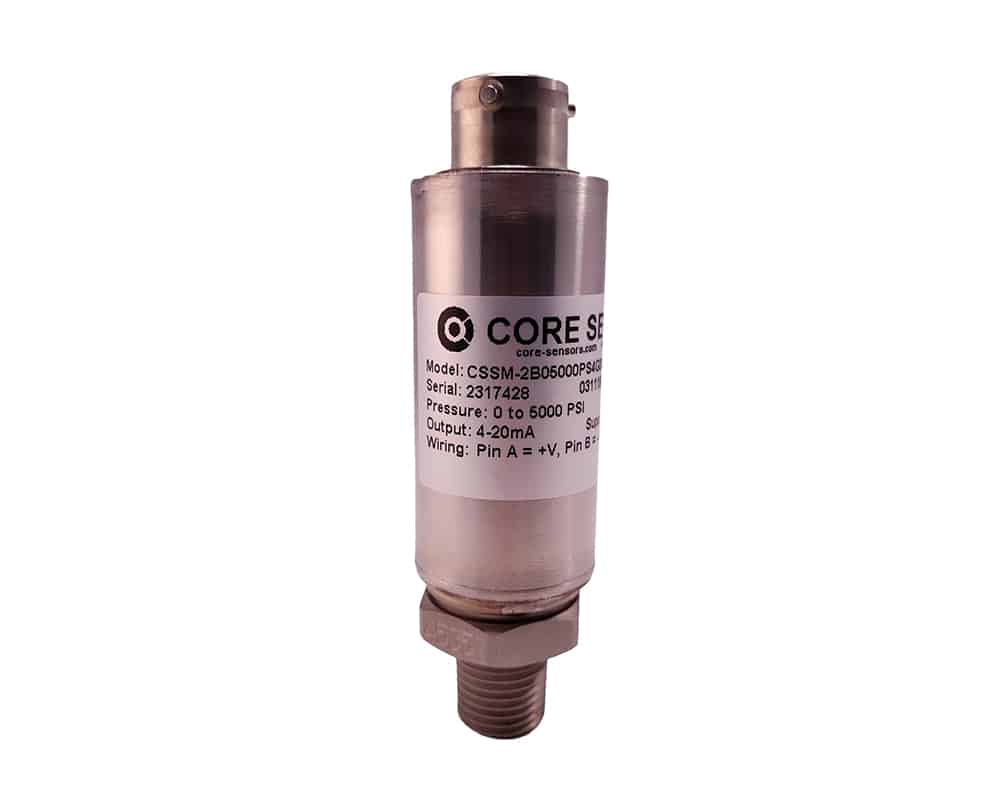

Core Sensors CS-SM Series

  • Core Sensors

Product Features

  • Steel mill pressure transducer
  • Pressures up to 350 Bar
  • Accuracy down to ≤±0.25% BFSL
  • Pressure cycles of >100 million
  • Burst pressure of 10X or 20,000 PSI (whichever is less)
  • IP69 protection against high pressure washdown
  • Integral snubber protects against pressure transients

Applications


The CS-SM steel mill pressure transducer is designed to withstand the rugged demands of the steel mill industry. Standard configuration includes a stainless steel body welded to a high-strength stainless steel sensing element offering 4X overpressure protection, an integral snubber to protect against pressure transients and an IP69 rating. Electrical connections include an integral cable or a 6-Pin Bendix with a variety of output signals and process connections.

The CS-SM has been designed and built for the toughest environments. An integral snubber (or restrictor plug) is standard on the CS-SM, dampening the pressure spikes that are common in steel and rolling mill applications. Even with the addition of the snubber, the CS-SM is still capable of responding to pressure quickly; ~1kHz for voltage outputs and ~250Hz for 4-20mA current output. By carefully selecting the appropriate diaphragm thickness, the CS-SM is capable of achieving 4X overpressure protection and 10X (or 20,000 PSI) burst pressure protection. These protections are critical in applications such as stamping and roll forming as the sudden pressure events can easily exceed the intended application pressure. Transducers without high overpressure and burst pressure protection run the risk of permanent damage and potential damage to other equipment if the pressure cannot be monitored and controlled properly. A 6-Pin Bendix electrical connector is precision tig welded onto the sensor’s body, providing an IP69 rating. This ensures the sensor will continue operating, even during high-pressure washdown events.

  • Steel mill pressure transducer
  • Pressures up to 350 Bar
  • Accuracy down to ≤±0.25% BFSL
  • Stability (1 year) of ≤±0.25% of FS
  • Pressure cycles of >100 million
  • Overpressure of 4x minimum
  • Burst pressure of 10X or 20,000 PSI (whichever is less)
  • IP69 protection against high pressure washdown
  • Electrical output options of 4-20mA, 1-5V or 1-6V
  • Operating Temperature range of -40°C to +100°C
  • Media Temperature range of -40°C to +120°C
  • EMI / RFI protection
  • Integral snubber protects against pressure transients
  • Wetted material of 17-4PH

Typical applications for the CS-SM steel mill pressure transducer series include:

  • Stamping
  • Roll forming
  • Rolling mill
  • Pumps


Performance, Thermal, Environmental & Physical Specifications Table

AttributeValue
Accuracy at 25°C *≤±0.25% BFSL
Stability (1 Year)≤±0.25% of FS
Pressure Cycles>100 million
Overpressure4x minimum
Burst Pressure10x or 20,000 PSI (whichever is less)
Operating Temperature-40°C to +100°C
Media Temperature-40°C to +120°C
Compensated Temperature+20°C to +90°C
Storage Temperature-40°C to +120°C
TC Zero≤±1% of FS
TC Span≤±1% of FS
EMI / RFI ProtectionYes
IP RatingIP69
Vibration20g, 20 to 2400Hz
Shock100g, 11msec, 1/2 sine

* Accuracy includes non-linearity, hysteresis and non-repeatability

Electrical Specifications (Current)

AttributeValue
Outputs4 to 20mA
Excitation10 to 28VDC
Current Consumption20mA (typical)
Output Load0 to 800Ω at 10 to 28VDC
Frequency Response~250Hz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum

Electrical Specifications (Voltage)

AttributeValue
Outputs1 to 5V
1 to 6V
Excitation10 to 28VDC
Current Consumption<10mA
Output Load5kΩ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)≤±0.5% (typical)
±1% maximum
Span Tolerance (of FS)≤±0.5% (typical)
±1% maximum


Core Sensors design and manufacture high quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allows Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.com for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

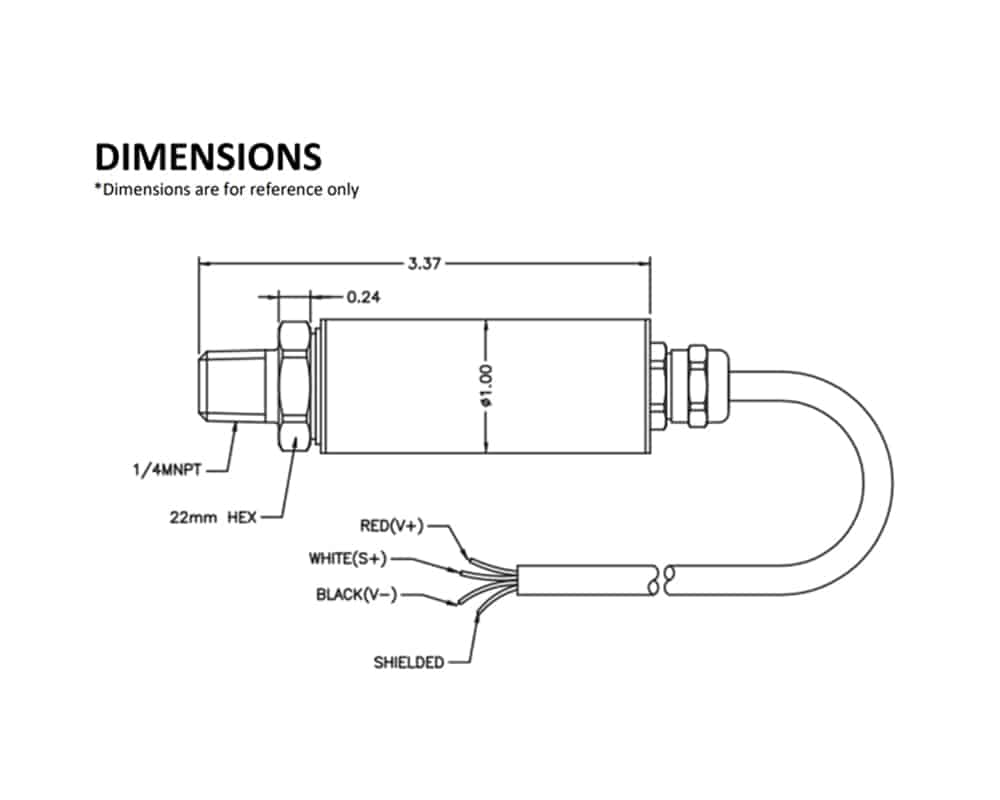

Specifications

Product Type

Series / Model

Process Connection

,

Wetted Material

Pressure Range

Pressure Unit

,

Pressure Type

Output

, ,

Electrical

,

Options

Lead Length

, , ,

Accuracy

,

Temperature Range (°C)

Ingress Protection

Core Sensors CS-SM Series Ordering Info

Below is the model number configuration for the CS-SM series from Core Sensors.

Ordering example: CSSM-2B01000PS4G000-00
CSSMXXXXXXXXXXXXXXXX

Series / Model (CSSM)

CSSM
CS-SM

Process Connection (X)

2
1/4” Male NPT
D
1/4” Male BSPP

Wetted Material (X)

B
17-4PH

Pressure Range (XXXXX)

Insert 5-digit pressure code, max 350 Bar
i.e. 00100 = 100 PSI

Pressure Unit (X)

B
Bar
P
PSI

Pressure Type (X)

S
Sealed gauge

Output (X)

1
1 to 5V
3
1 to 6V
4
4 to 20mA

Electrical (X)

G
6-Pin Bendix
L
Cable

Options (XXX)

000
No special options

Lead Length (XX)

00
No cable
01
1m
02
2m
03
3m
