The VLP resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. Developed with a small chip size of 1020, selective resistance range between 0.001Ω and 0.200Ω, with a 2W permanent power rating at +130°C. The VLP series from Isabellenhütte offers excellent long term stability and high pulse power rating.
  • 2-terminal surface-mount precision resistor
  • Suitable for 4 pad layout
  • 1020 chip size
  • Constant current up to 45A (0.001Ω)
  • Selective resistance range between 0.001Ω and 0.200Ω (see specifications table below)
  • TCR value <50 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance ±1.0%, ±2.0% and ±5.0% (depending on resistance value required)
  • Excellent long term stability
  • Power rating 2W (at +130°C)
  • Mounting: Reflow and IR soldering
  • AEC-Q200 qualified

Typical applications for the VLP series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters, power modules and switch mode power supplies

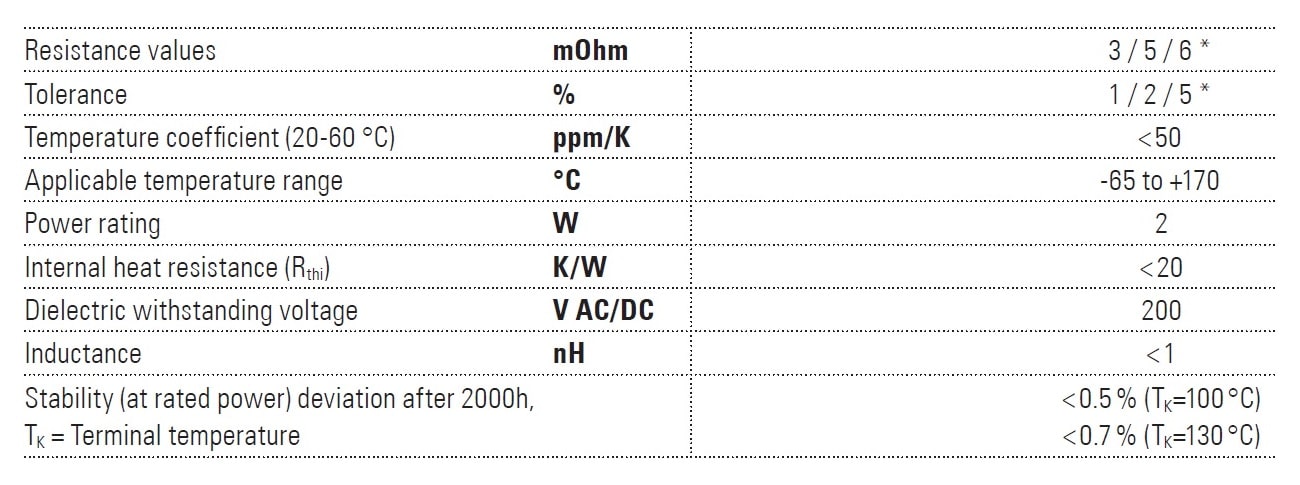

The below table gives an overview of the specifications for the Isabellenhütte VLP series:

Isabellenhütte VLP Specifications
Specifications
Additional Features
  • 1020 chip size
  • 2-terminal surface-mount resistor
  • Suitable for 4 pad layout
  • AEC-Q200 qualified
  • Applicable temperature range -65°C to +170°C
  • Excellent long term stability
  • Continuous current up to 45A (0.001Ω)
  • Mounting: Reflow and IR soldering
  • High pulse power rating
Maximum Power Rating
  • up to 2W (at +130°C)
Maximum Resistance
  • 0.2Ω
Minimum Resistance
  • 0.001Ω
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±2.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte VLP long-sided terminals surface-mount precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

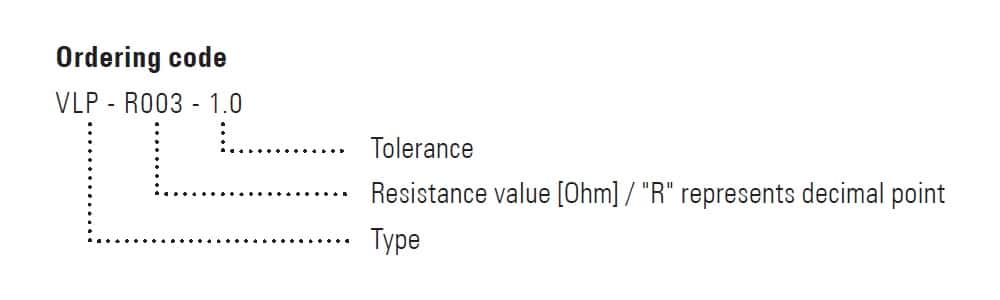

Below is an example of the part number break down for the VLP resistor series:

VLP Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
