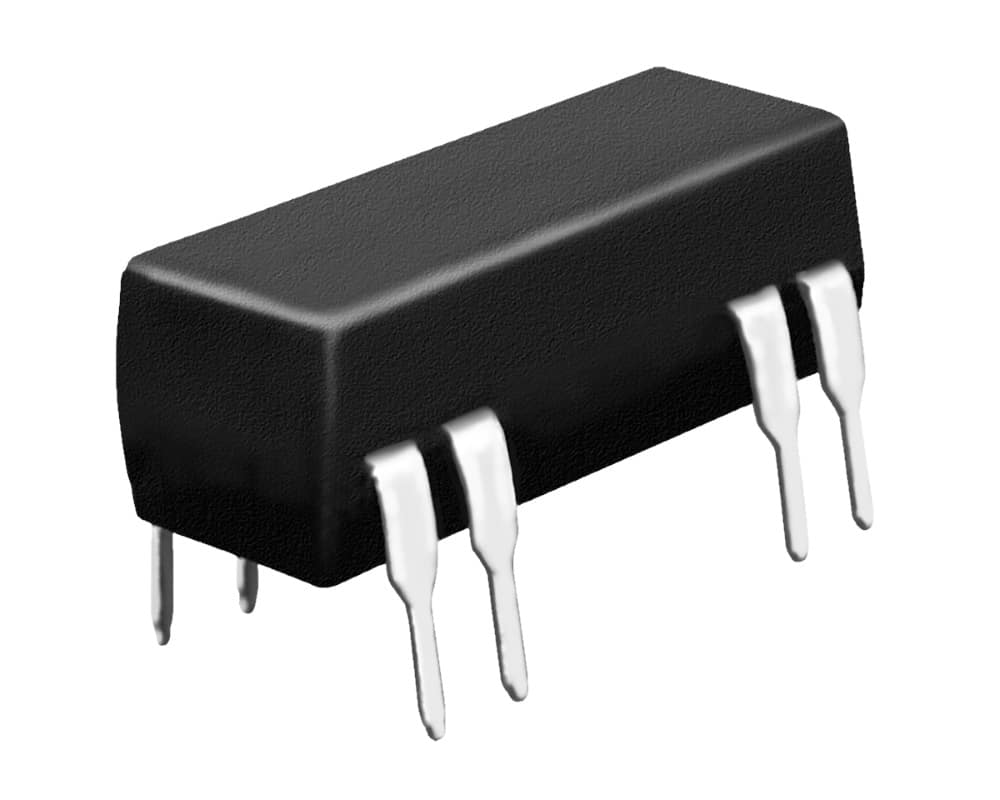

The 8L02 surface-mount economy DIP reed relay series from Coto features available coil voltage options of 5VDC, 12VDC and 24VDC with a switching voltage of 200V and switching current of 0.5A. The 8L02 series is designed as a drop-in low cost replacement for industry standard DIP packages with a moulded thermostat body on integral lead frame design, hermetically sealed contacts, with optional electrostatic shield and coil suppression diode. The 8L02 series is ideally suited to the needs of telecom, security and other general purpose applications.
Surface-mount economy DIP reed relay
Nominal coil voltage options of 5VDC, 12VDC and 24VDC
Contact form of 2A
Switching voltage of 200V
Dielectric strength of 250VDC
Contact rating 10W
Switching current 0.5A
High insulation resistance of 1010Ω minimum
Temperature range −20°C to +85°C
Moulded DIP package
Typical Applications include:
Telecom
Security
Other general purpose applications
For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
