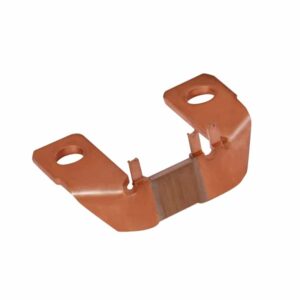

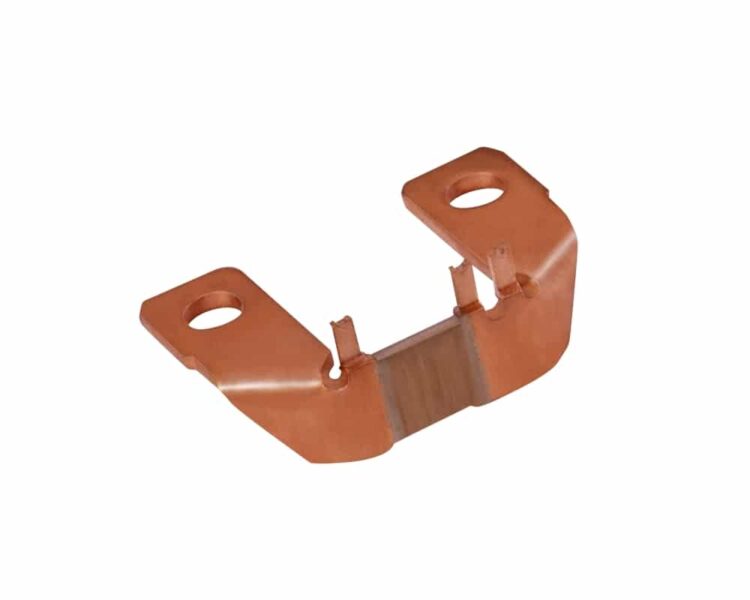

Isabellenhütte BKW Series

  • Isabellenhütte

Product Features

  • Current sensing resistor
  • 4-terminal surface-mount design
  • Resistance range from 0.0003Ω to 0.0005Ω
  • Tolerance ±5.0%
  • TCR of <±20 ppm/°C
  • Power rating of 3W
  • Temperature range from -55°C to +140°C

Applications

The BKW 4-terminal current sensing precision shunt resistor series from Isabellenhütte has been designed for use in energy meters and other battery management and current sensing applications. These resistors are qualified for 20A, 40A, 60A and 80A energy meters. The BKW series is available with resistance values from 0.0003Ω to 0.0005Ω as well as excellent long-term stability, meaning energy meters do not require any recalibration. Other benefits include very high reproducibility of R-value and TCR.

  • 4-terminal current sensing resistor
  • Resistance values of 0.0003Ω, 0.0004Ω and 0.0005Ω
  • Tolerance of ±5.0%
  • TCR of <±20 ppm/°C (+20°C to +60°C)
  • Temperature range from -55°C to +140°C
  • Constant current up to 100A (0.0003Ω)
  • Inductance of <3nH
  • Massive copper terminals
  • Mounting: screwed on terminals of kWh-meter
  • Qualified for 20A, 40A, 60A and 80A energy meters



Typical applications for the BKW current sensing precision shunt resistor series include:

  • Ideal for single and three-phase energy meters
  • Battery current sensing

Isabellenhütte BKW Series Specification Table

AttributesValue
Resistance value0.3mΩ / 0.4mΩ / 0.5mΩ
Tolerance±5%
TCR ±20 ppm/°C (20-60 °C)
Temperature range-55°C to +140°C
Power rating3W
Internal heat resistance<10°C/W (Rthi)
Inductance<3nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 110°C with heatsink)
Tᴋ = Terminal Temperature

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Dimensions 11 x 19 x 29mm
Series / Model

Current Rating

Material Type

Maximum Resistance

Minimum Resistance

Package / Size

Power Rating

Product Type

Resistance Value

, ,

Temperature Coefficient

Temperature Range (°C)

Tolerance

Isabellenhütte BKW Series Ordering Info

Below is the model number configuration for the BKW series from Isabellenhütte.

Ordering example: BKW-M-R0003-5.0
BKWXXXXXXX.X

Series / Model (BKW)

BKW
BKW

Material Type (X)

M
MANGANIN®

Resistance Value (XXXXX)

Resistance value, in ohms, is expressed by a series of 5 characters, 4 of which represent significant digits. R (ohms) designates the location of the decimal point.

Tolerance (X.X)

5.0
±5%

Isabellenhütte BKW Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 5% Tolerance
0.0003Ω R0003
0.0004Ω R0004
0.0005Ω R0005
