±20 ppm/°C series

  • Caddock
  • Precision radial leaded film through-hole resistor
  • Caddock’s non-inductive performance
  • Maximum working voltage of 200V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Tetrinox® resistance films
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Temperature range from -40°C up to +150°C
  • Caddock
  • Precision radial leaded film through-hole resistor
  • Caddock’s non-inductive performance
  • Maximum working voltage of 300V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Tetrinox® resistance films
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Temperature range from -40°C up to +150°C

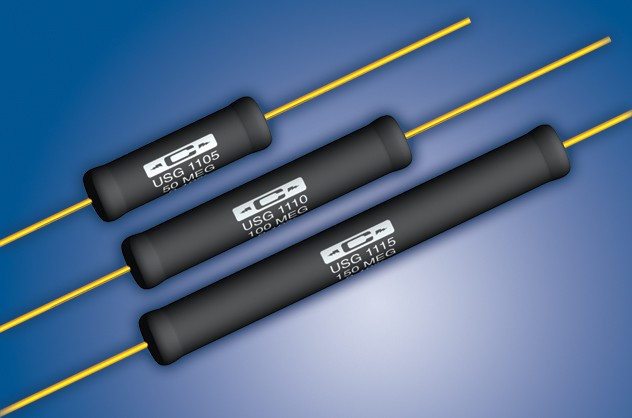

  • Caddock
  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.
  • Caddock
  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.
  • Caddock
  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.
  • Isabellenhütte
  • Current sensing resistor
  • 4-terminal surface-mount design
  • Resistance range from 0.0003Ω to 0.0005Ω
  • Tolerance ±5.0%
  • TCR of <±20 ppm/°C
  • Power rating of 3W
  • Temperature range from -55°C to +140°C
  • Isabellenhütte
  • Current sensing resistor
  • 2725 package size
  • Resistance range from 0.0002Ω to 0.005Ω
  • Tolerances of ±1% and ±5%
  • TCR of <±20ppm/°C or <±50ppm/°C
  • Power rating 12W (at 70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Current sensing resistor
  • 4-terminal surface-mount 4026 package
  • Resistance range from 0.0002Ω to 0.003Ω
  • Tolerance ±1.0% or ±5.0%
  • TCR of <20 ppm/°C or <50 ppm/°C
  • Power rating up to 12W (at 70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 1206 chip size
  • Resistance range from 0.01Ω to 0.47Ω
  • Tolerance range from ±1% to ±5%
  • TCR of <±20 ppm/°C
  • Power rating up to 1.5W
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Current sensing precision resistor
  • Gold plated 2-terminal surface-mount 1206 chip size
  • Resistance value of 0.1Ω
  • Tolerance of ±1%
  • TCR value <±20 ppm/°C
  • Power rating of 1.5W (at 80°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Current sensing precision resistor
  • 2-terminal surface-mount 2010 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerances of ±1% or ±5%
  • TCR value of <±20 ppm/°C
  • Power rating 3W (at +70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Current sensing precision resistor
  • Gold plated 2-terminal surface-mount design in a 2010 chip size
  • Resistance values of 0.025Ω and 0.08Ω
  • Tolerances of ±1% or ±5%
  • TCR value of <±20 ppm/°C
  • Power rating of 2W (at +90°C)
  • Temperature range from -55°C to +170°
  • Isabellenhütte
  • Current sensing precision resistor
  • 2-terminal surface-mount 2512 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerance range from ±1% to ±5%
  • TCR of <±20 ppm/°C
  • Power rating 4W (at +70°C)
  • Temperature range from -65°C to +170°C
  • Riedon
  • Through-hole, precision, wirewound resistor
  • Long term stability of 100ppm/year (20ppm/year version available upon request)
  • 100% acceptance tested / traceable to NIST
  • Temperature range of -55°C to 145°C
  • Fast rise time version available
  • Matched resistance sets to ±0.001% and ±0.5ppm/°C available
  • Riedon
  • Through-hole, precision, wirewound resistor
  • Long term stability of 100ppm/year (20ppm/year version available upon request)
  • 100% acceptance tested / traceable to NIST
  • Temperature range of -55°C to 145°C
  • Fast rise time version available
  • Matched resistance sets to ±0.001% and ±0.5ppm/°C available
  • Riedon
  • Through-hole, precision, wirewound resistor
  • Long term stability of 100ppm/year (20ppm/year version available upon request)
  • 100% acceptance tested / Traceable to NIST
  • Temperature range of -55°C to 145°C
  • Fast rise time version available
  • Matched resistance sets to ±0.001% and ±0.5ppm/°C available
Please be advised that due to the ongoing supply issues with raw materials affecting the global electronics industry, as well as an increase in orders received by our manufacturing partners, a large number of products are facing increased lead times in recent months. For the latest lead time and stock availability, please contact one of our engineers who will be happy to discuss lead times further and the potential for alternative parts.
