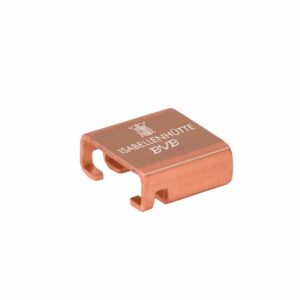

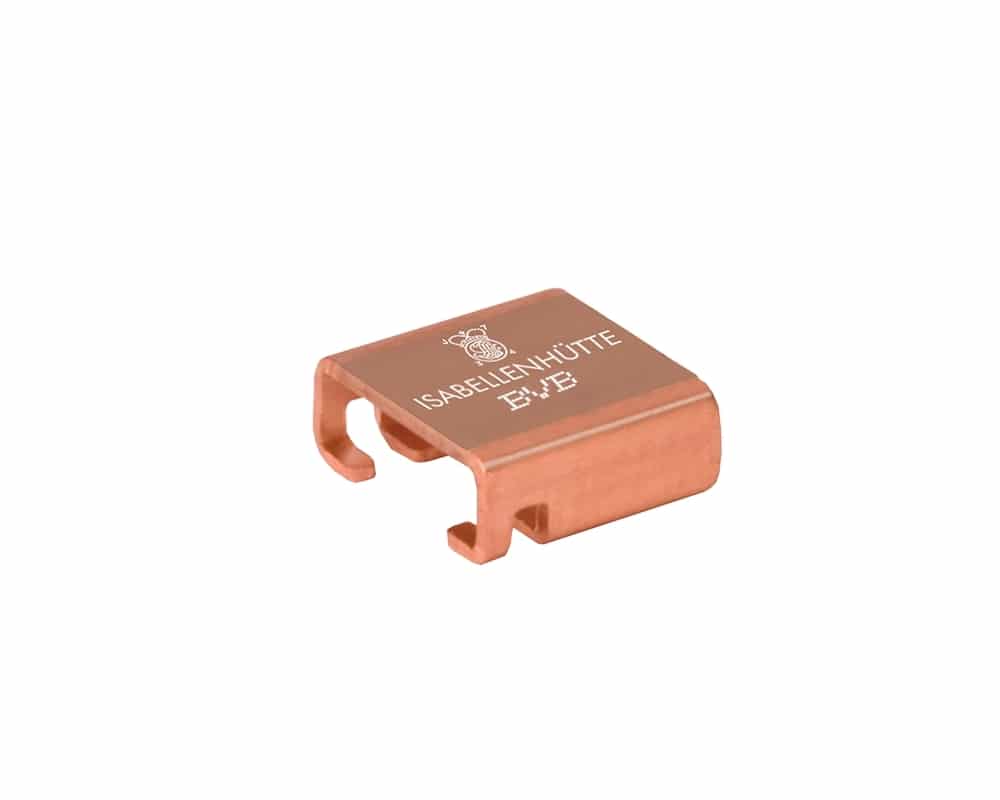

Current Sensing Precision Resistor

Isabellenhütte BVB Series

  • Current sensing resistor
  • 2725 package size
  • Resistance range from 0.0002Ω to 0.005Ω
  • Tolerances of ±1% and ±5%
  • TCR of <±20ppm/°C or <±50ppm/°C
  • Power rating 12W (at 70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant

Specifications

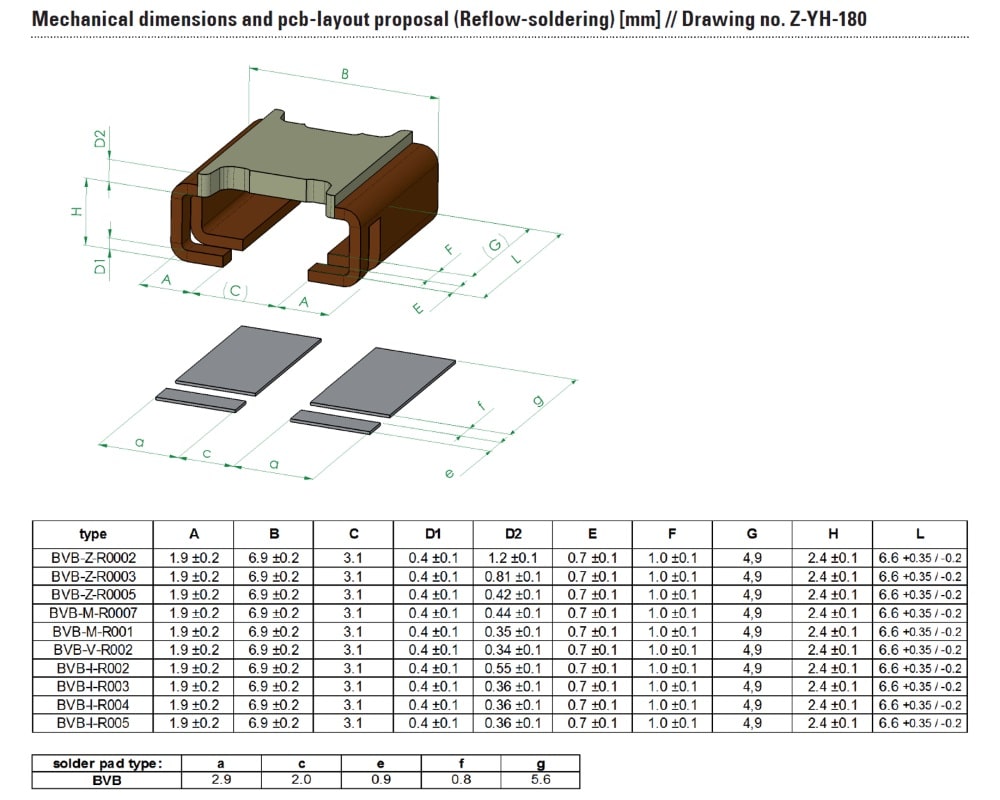

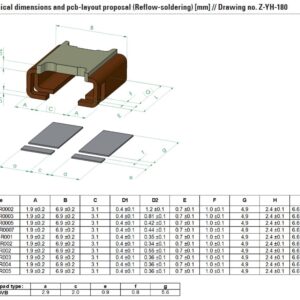

Dimensions 6.9 x 6.9mm
Product Type

Mounting / Size

,

Material Type

, , ,

Resistance Value

-

Minimum Resistance

200µΩ
Maximum Resistance

0.005Ω
Tolerance

,

Temperature Coefficient

,

Power Rating

,

Series / Model

Temperature Range

-65 to +170°C
Download Datasheet

Current Sensing Precision Resistor

Isabellenhütte BVB Series

  • Current sensing resistor
  • 2725 package size
  • Resistance range from 0.0002Ω to 0.005Ω
  • Tolerances of ±1% and ±5%
  • TCR of <±20ppm/°C or <±50ppm/°C
  • Power rating 12W (at 70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant
Download Datasheet

Request a Quote

Sample Request
Email Datasheet

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related Current Sensing & Low Resistance Resistors items

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Current Sensing & Low Resistance Resistors Components

Isabellenhütte BAN Series

Isabellenhütte BAN Series Precision Shunt
  • ISA-WELD® precision resistor, a shunt with tinned terminals
  • Resistance value of 25µΩ, manufactured to 5% tolerance
  • Continuous current load up to 1200A at 25µΩ
  • Permanent power up to 36W at 25µΩ
  • Temperature coefficient from 0±20ppm/K, depending on version
  • Applicable temperature range from -40°C to +170°C
  • AEC-Q200 qualified
Isabellenhütte BAN ISA-WELD precision shunt, two copper terminals with a resistance alloy strip welded between them and one mounting hole per terminal
View Product
Download Datasheet

Resi HRES6918BL025MST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 25µΩ resistance, 600A rated current and 15mV output for BMS, ESS, EV and eVTOL applications.
View Product
Download Datasheet

Resi SRES6918BL100VST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 100µΩ resistance, 400A current rating and ±0.1% accuracy for EV, BMS and energy storage systems.
View Product
Download Datasheet

Isabellenhütte 25003/VMI (0805)

DLA | Precision Current Sense Resistor
  • Current sensing precision resistor
  • Constant current up to 7A (10mOhm)
  • Resistance range from 0.01Ω to 0.05Ω
  • Tolerance of ±1%
  • Two-terminal configuration
  • Power rating up to 0.5W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte 25004/VMK (1206)

DLA | Precision Current Sense Resistor
  • DLA-qualified precision current sense resistor
  • Constant current up to 8.5A (10mOhm)
  • Resistance range from 0.01Ω to 0.47Ω
  • Tolerance of ±0.5% or ±1%
  • Two-terminal configuration
  • Power rating up to 0.75W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte 25005/VMP (2010)

DLA | Precision Current Sense Resistor
  • DLA-qualified precision current sense resistor
  • Constant current up to 17A (5mOhm)
  • Resistance range from 0.005Ω to 1Ω
  • Tolerance of ±0.5% or ±1%
  • Two-terminal configuration
  • Power rating up to 1.5W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

The BVB current sensing precision resistor series from Isabellenhütte is made of composite material considered ideal for use on DBC or ceramic substrate. The BVB series offers a surface-mount, 4-terminal connection with excellent long term stability. This resistor series offers a range of resistance values from 0.0002Ω to 0.005Ω, with a power rating of up to 12W, all within a 2725 package size

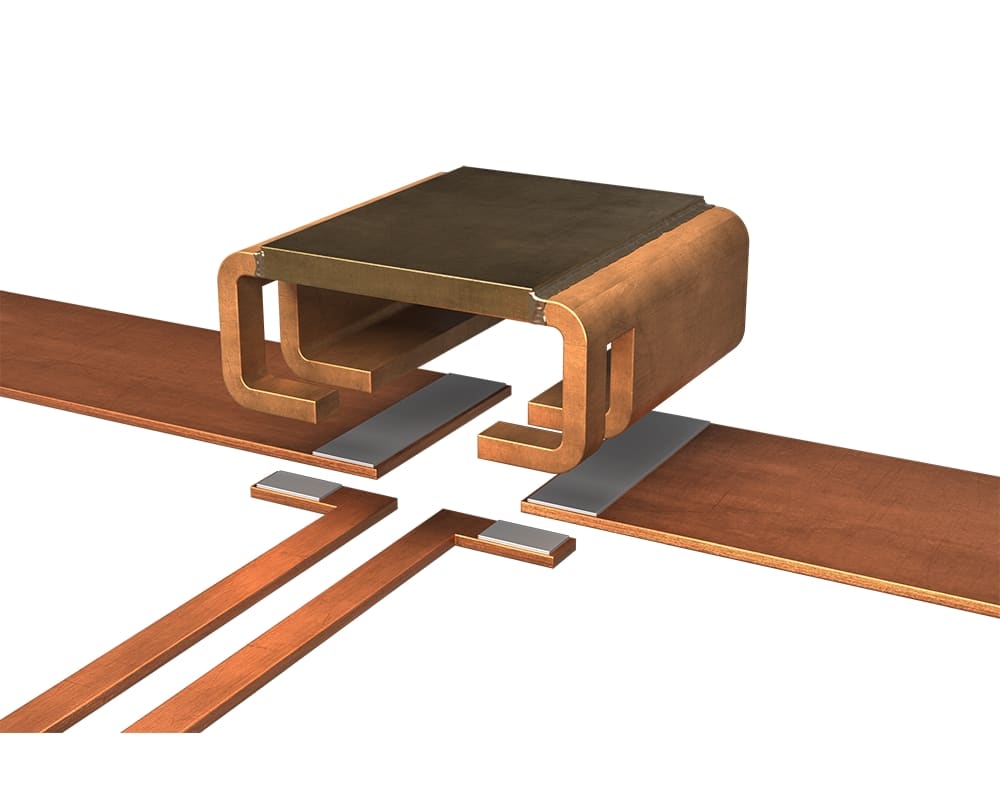

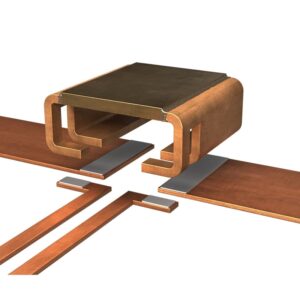

  • 4-terminal current sensing resistor
  • Surface-mount design
  • Resistance values of 0.0002Ω to 0.005Ω
  • Tolerance of ±1% and ±5%
  • TCR of <±20ppm/°C for 0.0002Ω and 0.0005Ω, <±50ppm/°C between 0.001Ω and 0.005Ω (+20°C to +60°C)
  • Temperature range from -65°C to +170°C
  • Power rating 12W (at 70°C) and up to 5W (at 100°C)
  • Inductance of <3nH
  • AEC-Q200 qualified
  • 2725 package size



Typical applications for the BVB current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • Frequency converters
  • Power modules
  • High current applications for the automotive market

Isabellenhütte BVB Series Specification Table

Product Ordering CodeResistance ValueToleranceTCRPower ratingInternal heat resistanceMaterial Type
BVB-Z-R00020.2mΩ±1% / ±5%<±20 ppm/°C12W (P70°C)4°C/W (Rthi)ZERANIN®
BVB-Z-R00030.3mΩ±1% / ±5%<±20 ppm/°C11W (P70°C)5°C/W (Rthi)ZERANIN®
BVB-Z-R00050.5mΩ±1% / ±5%<±20 ppm/°C9W (P70°C)8°C/W (Rthi)ZERANIN®
BVB-M-R00070.7mΩ±1% / ±5%<±20 ppm/°C8W (P70°C)12°C/W (Rthi)MANGANIN®
BVB-M-R0011mΩ±1% / ±5%<±50 ppm/°C 7W (P70°C)14°C/W (Rthi)MANGANIN®
BVB-I-R0022mΩ±1% / ±5%<±50 ppm/°C 6W (P70°C)14°C/W (Rthi)ISAOHM®
BVB-V-R0022mΩ±1% / ±5%<±50 ppm/°C 6W (P70°C)17°C/W (Rthi)NOVENTIN®
BVB-I-R0033mΩ±1% / ±5%<±50 ppm/°C 5W (P70°C)21°C/W (Rthi)ISAOHM®
BVB-I-R0044mΩ±1% / ±5%<±50 ppm/°C 4W (P70°C)28°C/W (Rthi)ISAOHM®
BVB-I-R0055mΩ±1% / ±5%<±50 ppm/°C 3W (P70°C)33°C/W (Rthi)ISAOHM®

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
