Isabellenhütte BVH Series

  • Isabellenhütte

Product Features

  • Current sensing resistor
  • 4-terminal through-hole design
  • Resistance range from 0.0003Ω to 0.002Ω
  • Tolerance ±3.0% or ±5.0%
  • TCR of <100 ppm/°C or <300 ppm/°C
  • Power rating of 5W
  • Temperature range from -55°C to +170°C
  • Automotive

Applications

  • Automotive
  • Compliant

Description

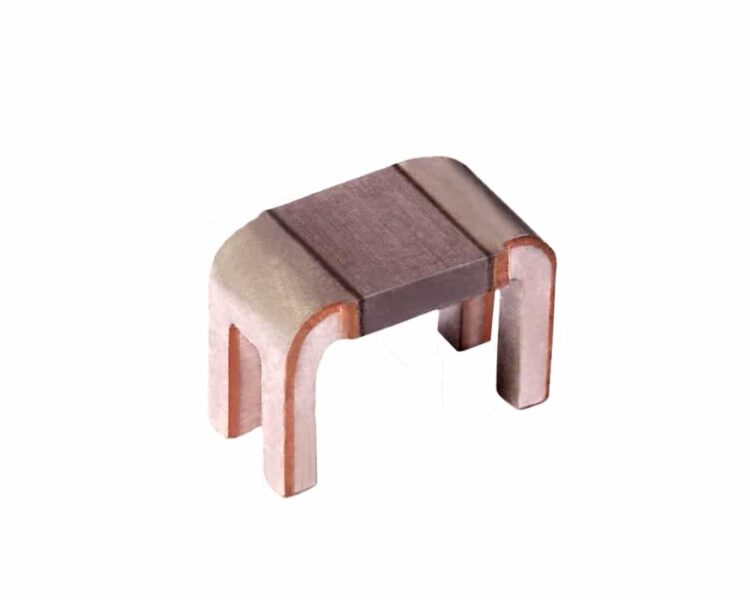

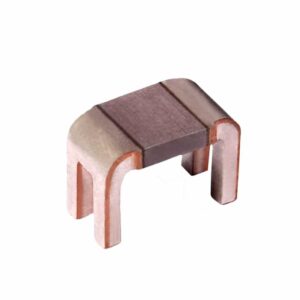

The BVH current sensing precision resistor series from Isabellenhütte has a 4-terminal through-hole design made with solid copper connections in a chip size of 3820. The resistance values available are 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω with a TCR of <100 ppm/°C (0.001Ω and 0.005Ω) and <300 ppm/°C (0.0003Ω and 0.0005Ω). The BVH series offers a continuous current up to 100A (0.0003Ω), with excellent long term stability and is AEC-Q200 qualified.

  • 4-terminal current sensing resistor
  • Resistance values of 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω
  • Tolerance of ±3.0% and ±5.0%
  • TCR from <100 ppm/°C (0.001Ω & 0.005Ω)
  • Temperature range from -55°C to +170°C
  • Maximum solder temperature up to 350°C for 30 seconds
  • Power rating of 5W
  • Constant current up to 100A (0.0003Ω)
  • Inductance of <3nH
  • Excellent long term stability
  • AEC-Q200 qualified



Typical applications for the BVH current sensing precision resistor series include:

  • High current applications for the automotive market
  • Frequency converters, power modules and power tools



Isabellenhütte BVH Series Specification Table

Product Ordering CodeResistance Value*Tolerance*TCRPower ratingInternal heat resistanceMaterial Type
BVH-M-R00030.3mΩ±3% / ±5%<±300 ppm/°C5W4°C/W (Rthi)MANGANIN®
BVH-M-R00050.5mΩ±3% / ±5%<±300 ppm/°C5W7°C/W (Rthi)MANGANIN®
BVH-A-R0011mΩ±3% / ±5%<±100 ppm/°C5W8°C/W (Rthi)Aluchrom
BVH-A-R0022mΩ±3% / ±5%<±100 ppm/°C4W15°C/W (Rthi)Aluchrom

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de/en/ for more information.

Specifications

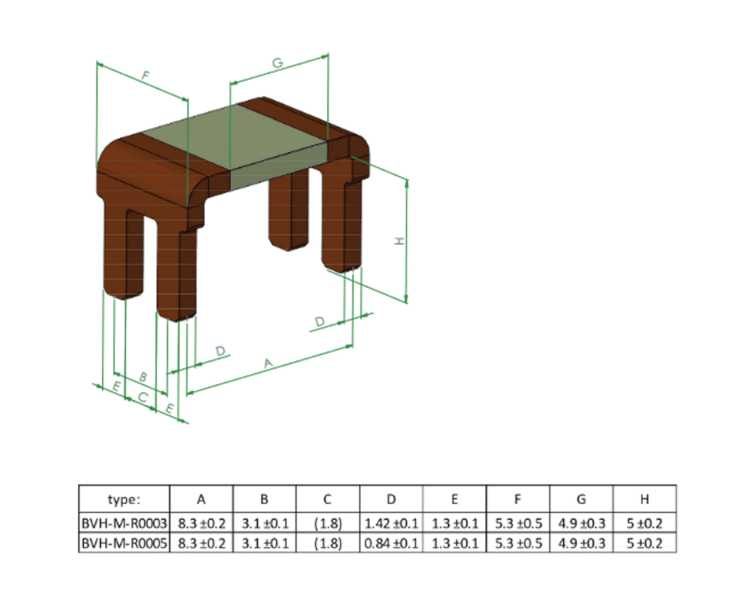

Dimensions 5.3 mm
Product Type

Temperature Coefficient

,

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

Resistance Value

, , ,

Current Rating

Package / Size

Temperature Range (°C)

Isabellenhütte BVH Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Isabellenhütte BVH Series Ordering Info

The BVH resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the BVH resistor series:

BVH Series Ordering Info

Isabellenhütte BVH Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 3% Tolerance 5% Tolerance
0.0003Ω R0003
0.0005Ω R0005
0.001Ω R001
0.002Ω R002
