Isabellenhütte BVM-F Series

  • Isabellenhütte

Product Features

  • Current sensing resistor
  • 3 different terminal types
  • Resistance range from 0.0001Ω to 0.0005Ω
  • Tolerance ±5.0%
  • TCR value <50 ppm/°C
  • Power rating of 5W
  • Temperature range from -55°C to +140°C
  • Automotive

Applications

  • Automotive
  • Compliant

Description

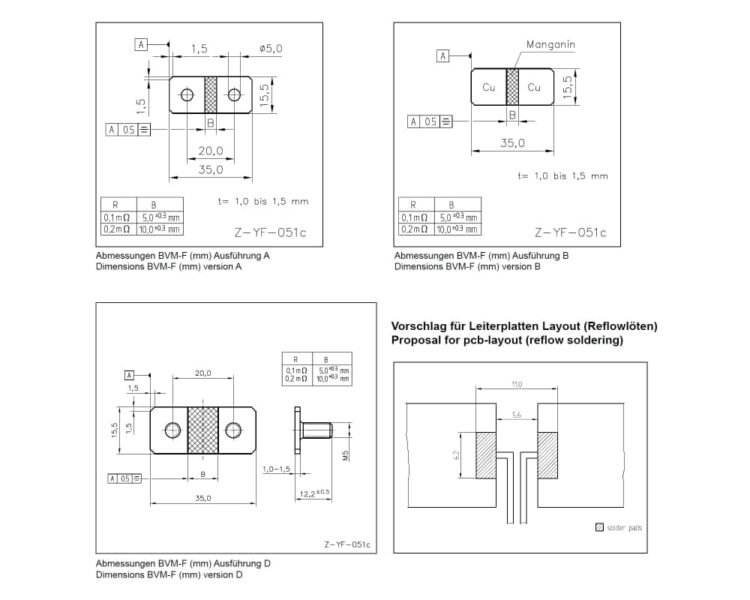

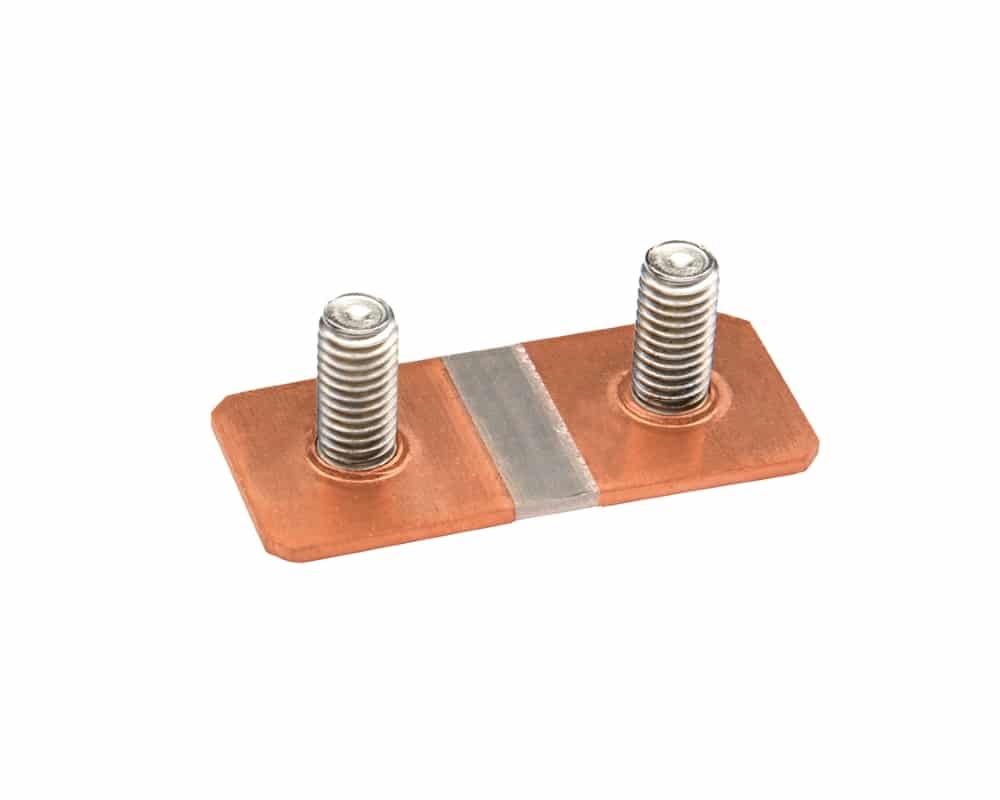

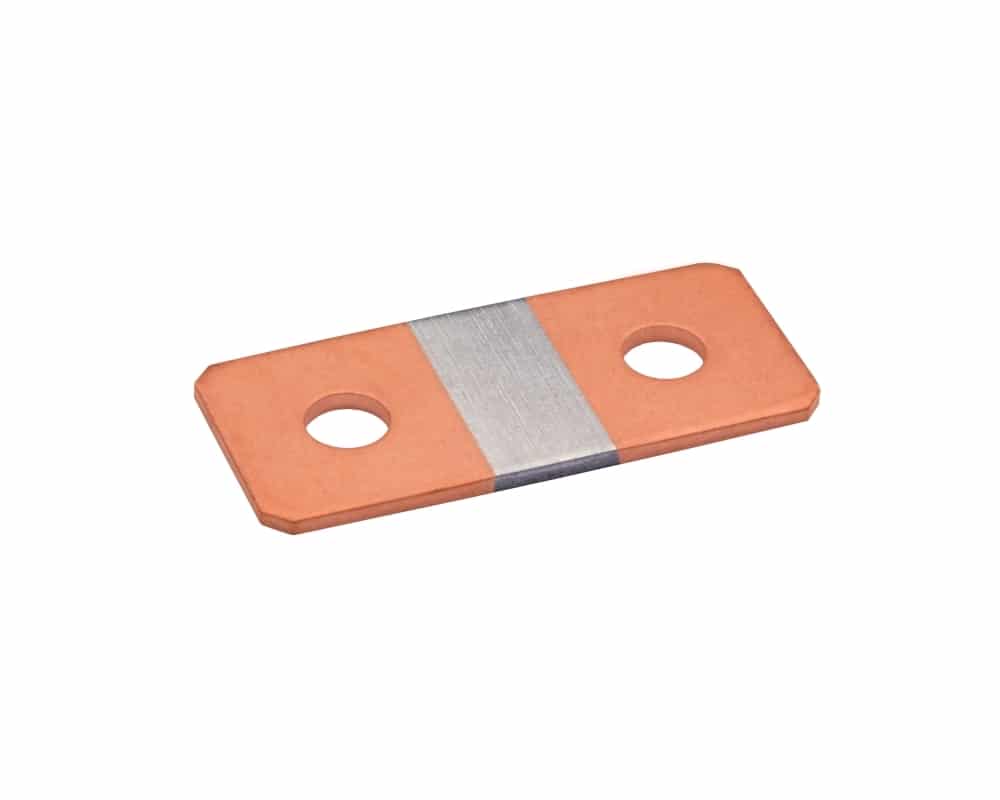

The BVM-F current sensing precision shunt resistor series from Isabellenhütte is designed for high current applications such as kWh meters and battery chargers, with a resistance value range from 0.0001Ω to 0.0005Ω. The BVM-F series from Isabellenhütte has three different power connections with a choice of threaded bolts, bolt down holes or solid terminals, which have a continuous current load up to 200A (0.0001Ω).

  • Current sensing resistor
  • 3 different terminal types
  • Continuous current load up to 200A (0.0001Ω)
  • Resistance values of 0.0001Ω, 0.0002Ω, 0.0003Ω and 0.0005Ω
  • TCR value <50 ppm/°C (between +20°C and +60°C)
  • Temperature range from -55°C to +140°C
  • Tolerance ±5.0%
  • Excellent long term stability
  • Conform to AEC-Q200
  • Permanent power of 5W



Typical applications for the BVM-F current sensing precision shunt resistor series include:

  • Energy metering and kWh-meters
  • Battery current sensing
  • High current sensing in automotive applications
  • High current measurement in welding machines



Isabellenhütte BVM-F Series Specification Table

AttributesValue
Resistance value0.1mΩ / 0.2mΩ / 0.3mΩ / 0.5mΩ
Tolerance±5%
TCR±50 ppm/°C (20-60°C)
Temperature range-55°C to +140°C
Power rating5W
Internal heat resistance<5°C/W (Rth)
Inductance<3nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 90°C)
Tᴋ = Terminal Temperature



Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

Dimensions 35 × 15.5 × 1.5 mm
Product Type

Temperature Coefficient

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

Power Rating

Additional Features

2-terminal surface-mount resistor with three different connector designsConstant current load of up to 200A (0.0001Ω)Excellent long-term stabilityLow inductance value of

Termination / Connection Type

, ,

Resistance Value

, , ,

Current Rating

Package / Size

Temperature Range (°C)

Isabellenhütte BVM-F Series Ordering Info

The BVM-F resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the BVM-F resistor series:

BVM-F Series Ordering Info

Isabellenhütte BVM-F Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 5% Tolerance
0.0001Ω R0001
0.0002Ω R0002
0.0003Ω R0003
0.0005Ω R0005

Isabellenhütte Video Library

We are very pleased to provide you with a range of videos, please see below for the latest content available:

VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples

Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte’s precision and power resistors

VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples

Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte’s precision and power resistors

Isabellenhütte BVM-F Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Isabellenhütte BVM-F Series
