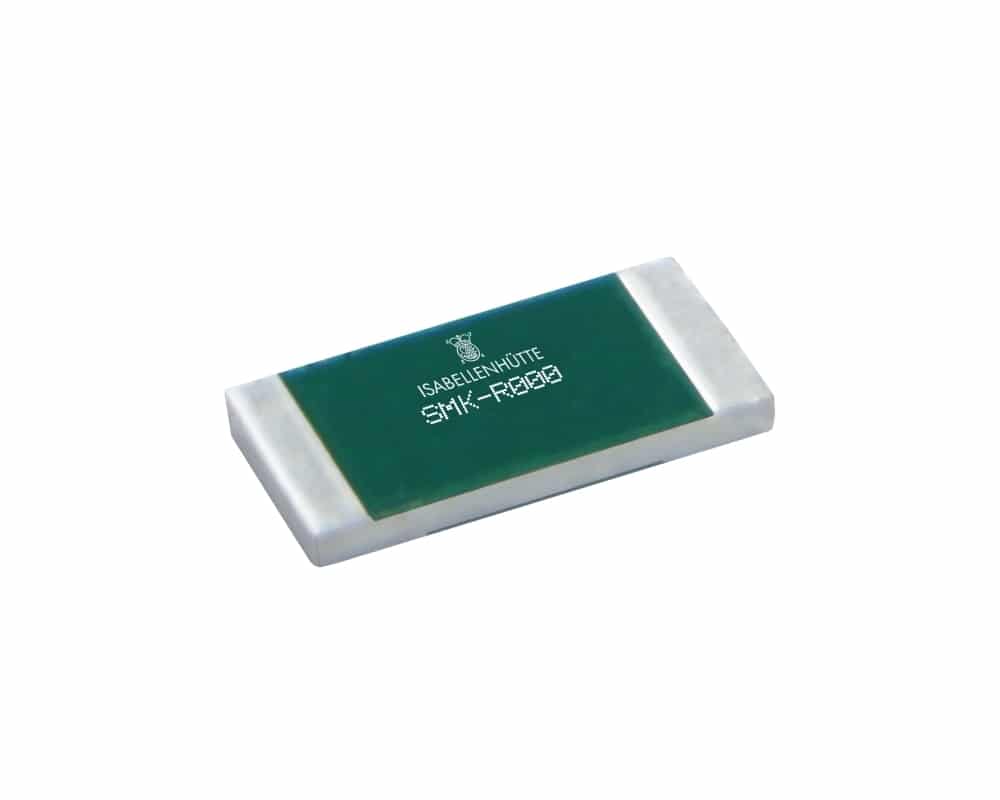

Zero Ohm Jumper

Isabellenhütte SMK-R000 Series

  • Zero ohm jumper / power bridge
  • Surface-mount design in a 1206 chip size
  • Resistance value of less than 200µΩ
  • Power rating of 0.5W (at +120°C)
  • Current rating of 50A DC
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant

Specifications

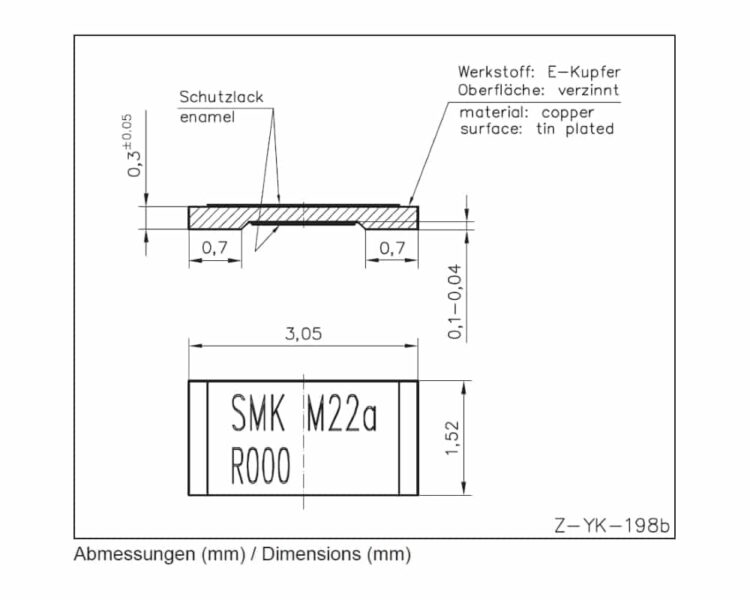

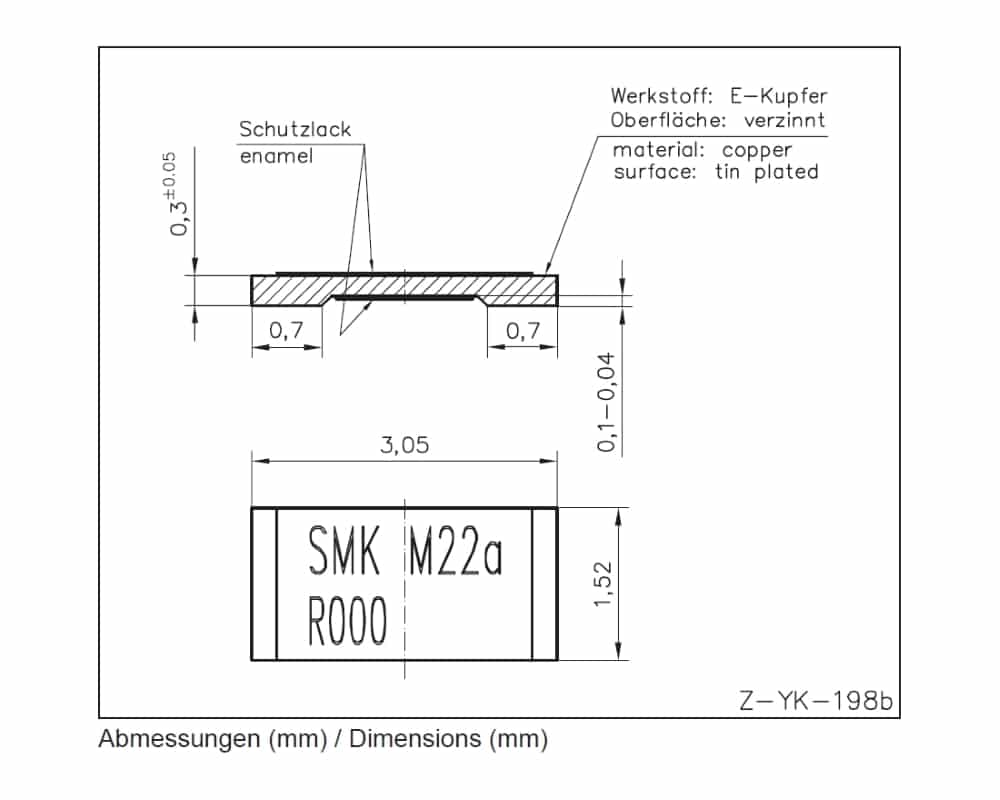

Dimensions 0.30 x 1.52 x 3.05mm
Product Type

Mounting / Size

,

Temperature Coefficient

Current Rating

Power Rating

Series / Model

Temperature Range

-65 to +170°C
Download Datasheet

Zero Ohm Jumper

Isabellenhütte SMK-R000 Series

  • Zero ohm jumper / power bridge
  • Surface-mount design in a 1206 chip size
  • Resistance value of less than 200µΩ
  • Power rating of 0.5W (at +120°C)
  • Current rating of 50A DC
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant
Download Datasheet

Request a Quote

Sample Request
Email Datasheet

Product Datasheet

Supporting Manufacturer Information

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related Current Sensing & Low Resistance Resistors items

Isabellenhütte SMK Series
Isabellenhütte SMP Series
Isabellenhütte SMS Series
Isabellenhütte SMS-R000 Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Isabellenhütte SMK-R000 Series Components

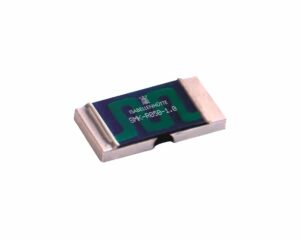

Isabellenhütte SMK Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 1206 chip size
  • Resistance range from 0.008Ω to 0.5Ω
  • Tolerances of 1% and ±5%
  • TCR from <±50ppm/°C
  • Power rating of 1W (at 110°C)
  • Temperature range -65°C to +170°C
View Product
Download Datasheet

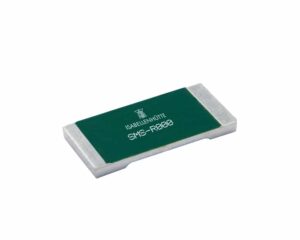

Isabellenhütte SMS-R000 Series

Zero Ohm Jumper
  • Zero ohm jumper / power bridge
  • 2-terminal surface-mount design in a 2512 chip size
  • Resistance value of <200µΩ
  • Power rating of 2W (at +120°C)
  • Current rating of up to 100A DC
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte SMT-R000 Series

Zero Ohm Jumper
  • Zero ohm jumper / power bridge
  • 2-terminal surface-mount design in a 2817 chip size
  • Resistance value of <200µΩ
  • Power rating of 2W (at +120°C)
  • Current rating of 100A
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

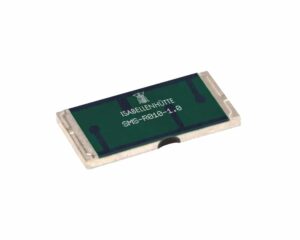

Isabellenhütte SMS Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 2512 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerances from ±0.5% to ±5%
  • TCR of <±50 ppm/°C
  • Power rating of 5W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte SMT Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount 2817 chip size
  • Resistance range from 0.004Ω to 4.7Ω
  • Tolerance range from ±0.5% to ±5%
  • TCR from <±50 ppm/°C
  • Power rating of 5W (at +105°C)
  • Temperature range -65°C to +170°C
View Product
Download Datasheet

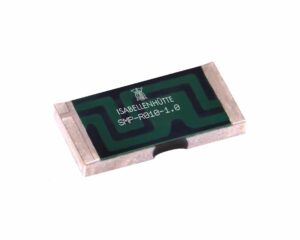

Isabellenhütte SMP Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 2010 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerances of ±0.5% or ±1%
  • TCR of <50 ppm/°C
  • Power rating of 3W (at +70°C)
  • Temperature range -65°C to +170°C
View Product
Download Datasheet

The SMK-R000 zero ohm jumper / power bridge series from Isabellenhütte offers a zero ohm resistor with a 50A high current, and allows a track width of up to 1mm to run underneath. The Isabellenhütte SMK-R000 has a resistance value of less than 0.2mΩ with tin-plated copper terminals and enamel top and bottom.

  • Zero ohm jumper / power bridge
  • Surface-mount design in a 1206 chip size
  • Resistance value of <200µΩ
  • TCR of 3800 ppm/°C
  • Permanent power of 0.5W (at +120°C)
  • Constant current up to 50A DC
  • Temperature range from -65°C to +170°C
  • Inductance of <3nH
  • Dielectric withstanding voltage of 50VAC



Typical applications for the SMK-R000 zero ohm jumper / power bridge series include:

  • Jumper / power bridge
  • Multiple usage of the layout

Isabellenhütte SMK-R000 Series Specification Table

AttributesValue
Resistance value<0.2mΩ
TCR (20-60°C)≈3800 ppm/°C
Temperature range-65°C to +170°C
Load capacity0.5W
Internal heat resistance<25°C/W (Rthi)
Inductance<3nH

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
