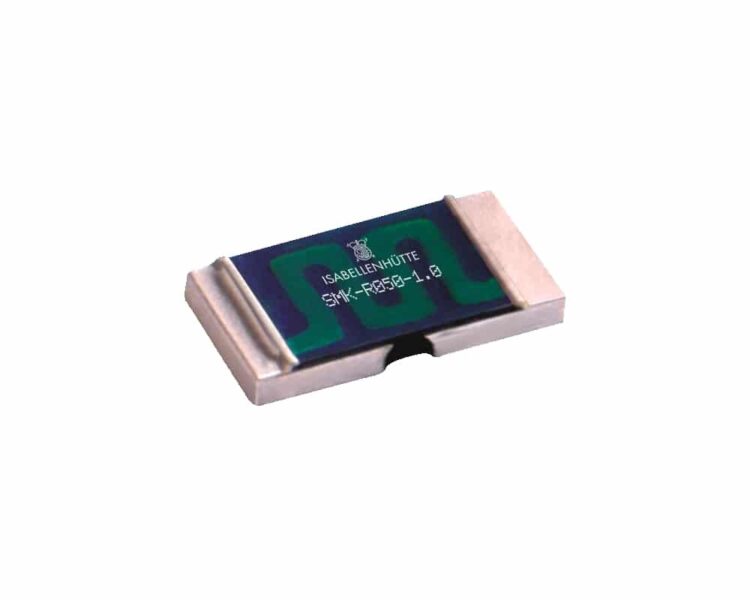

Isabellenhütte SMK Series

  • Isabellenhütte

Product Features

  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 1206 chip size
  • Resistance range from 0.008Ω to 0.5Ω
  • Tolerances of 1% and ±5%
  • TCR from <±50ppm/°C
  • Power rating of 1W (at 110°C)
  • Temperature range -65°C to +170°C
  • Automotive

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The SMK current sensing precision resistor series from Isabellenhütte offers the designer higher power ratings and low internal temperature rises due to the larger pad termination sizes. The MANGANIN® alloy resistance element with a resistance range of 0.008Ω to 0.5Ω, has a TC of below 50ppm/°C over the temperature range of between +20°C and +60°C for resistance values of 0.015Ω or more and offers excellent long term stability. The SMK model offers these capabilities in a 1206 chip size.

  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 1206 chip size
  • Resistance range from 0.008Ω to 0.5Ω
  • Tolerances of ±1% and ±5%
  • TCR values from <±50 ppm/°C (+20°C to +60°C)
  • Power rating of 1W (at 110°C)
  • Constant current up to 11A (0.008Ω)
  • Temperature range -65°C to +170°C
  • Inductance of <3nH
  • Stability of <0.5% (TK=80°C) / <01% (TK=110°C) (at rated power, deviation after 2000h)
  • Dielectric withstanding voltage of 200V AC/DC
  • AEC-Q200 qualified



Typical applications for the SMK current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Power modules
  • Frequency converters
  • Switch mode power supplies

Isabellenhütte SMK Series Specification Table

AttributesValue
Resistance value8mΩ to 500mΩ
Tolerance*±1% / ±5%
TCR (20-60°C)R<15mΩ: <100ppm/°C
R≥15mΩ: <50ppm/°C
Temperature range-65°C to +170°C
Power rating1W
Internal heat resistance<60°C/W (Rthi)
Inductance<3nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 80°C) / <1% (Tk=110 °C)
Tᴋ = Terminal Temperature

* For a full list of available tolerances, please see the Ordering Info tab

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de/en/ for more information.

Specifications

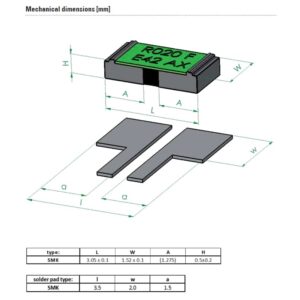

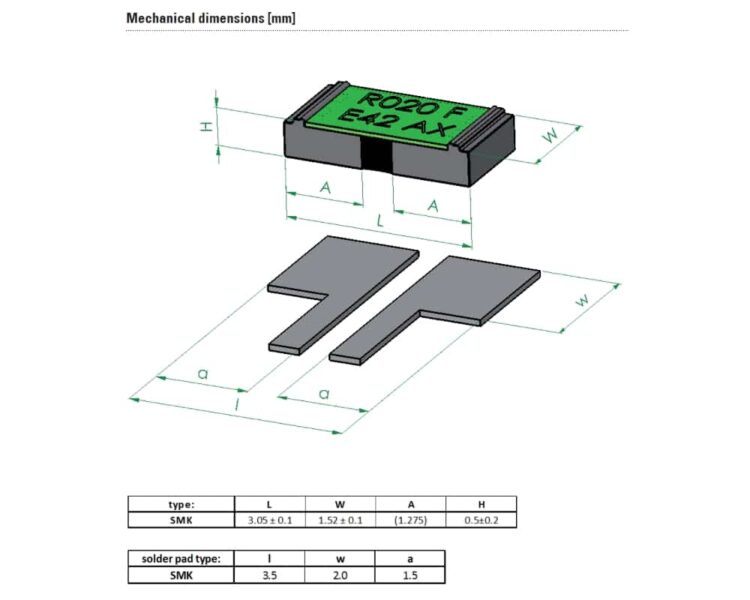

Dimensions 3.05 × 1.52 × 0.50 mm
Product Type

Temperature Coefficient

,

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

Resistance Value

, , , , , , , , , , , ,

Current Rating

Package / Size

,

Temperature Range (°C)

Isabellenhütte SMK Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Isabellenhütte SMK Series Ordering Info

The SMK resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the SMK resistor series:

SMK Series Ordering Info

Isabellenhütte SMK Series – Available Resistance Values and Tolerances *


Resistance Value Part Number Value 1% Tolerance 5% Tolerance
0.008Ω R008
0.010Ω R010
0.020Ω R020
0.25Ω R025
0.033Ω R033
0.050Ω R050
0.1Ω R100
0.17Ω R170
0.2Ω R200
0.22Ω R220
0.36Ω R360
0.5Ω R500
