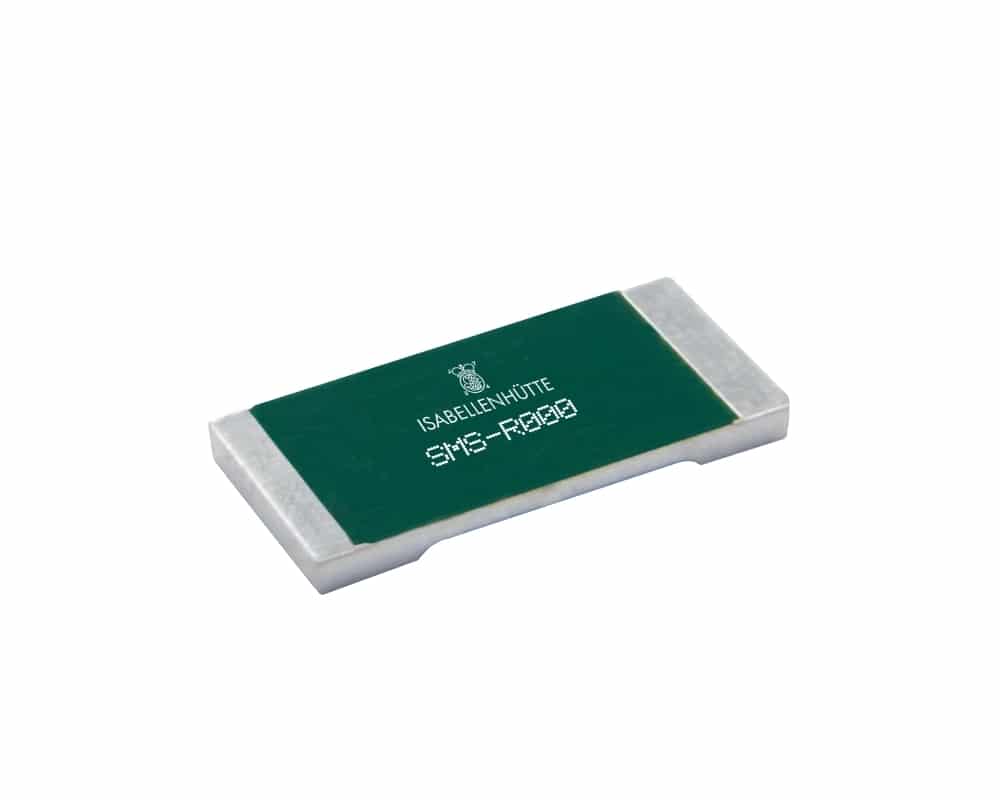

Isabellenhütte SMS-R000 Series

  • Isabellenhütte

Product Features

  • Zero ohm jumper / power bridge
  • 2-terminal surface-mount design in a 2512 chip size
  • Resistance value of <200µΩ
  • Power rating of 2W (at +120°C)
  • Current rating of up to 100A DC
  • Temperature range from -65°C to +170°C

Applications

  • Automotive
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The SMS-R000 zero ohm jumper / power bridge series from Isabellenhütte offers a surface-mount 2 terminal jumper / power bridge with up to 100A high current and allows a track width of up to 3mm to run underneath. The Isabellenhütte SMS-R000 has a resistance value of less than 0.0002Ω with tin-plated copper terminals and enamel top and bottom.

  • Zero ohm jumper / power bridge
  • Surface-mount design in a 2512 chip size
  • Resistance value of <200µΩ
  • Constant current up to 100A DC
  • Permanent power of 2W (at +120°C)
  • Temperature range from -65°C to +170°C
  • Inductance of <3nH
  • Dielectric withstanding voltage of 50VAC



Typical applications for the SMS-R000 zero ohm power bridge / jumper series include:

  • Jumper / Power bridge
  • Multiple usage of a layout



Isabellenhütte SMS-R000 Series Specification Table

AttributesValue
Resistance value<0.2mΩ
TCR (20-60°C)≈3800 ppm/°C
Temperature range-65°C to +170°C
Load capacity2W
Dielectric withstanding voltage50V AC
Inductance<3nH
DC current100A



Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

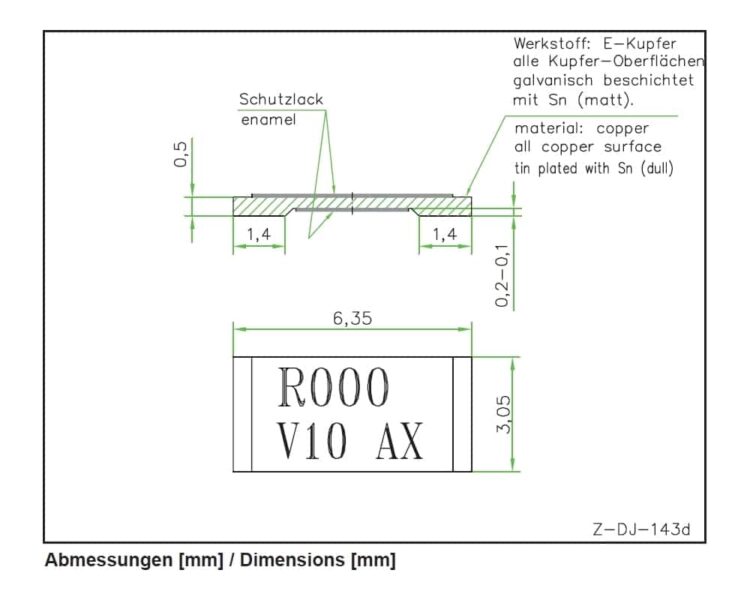

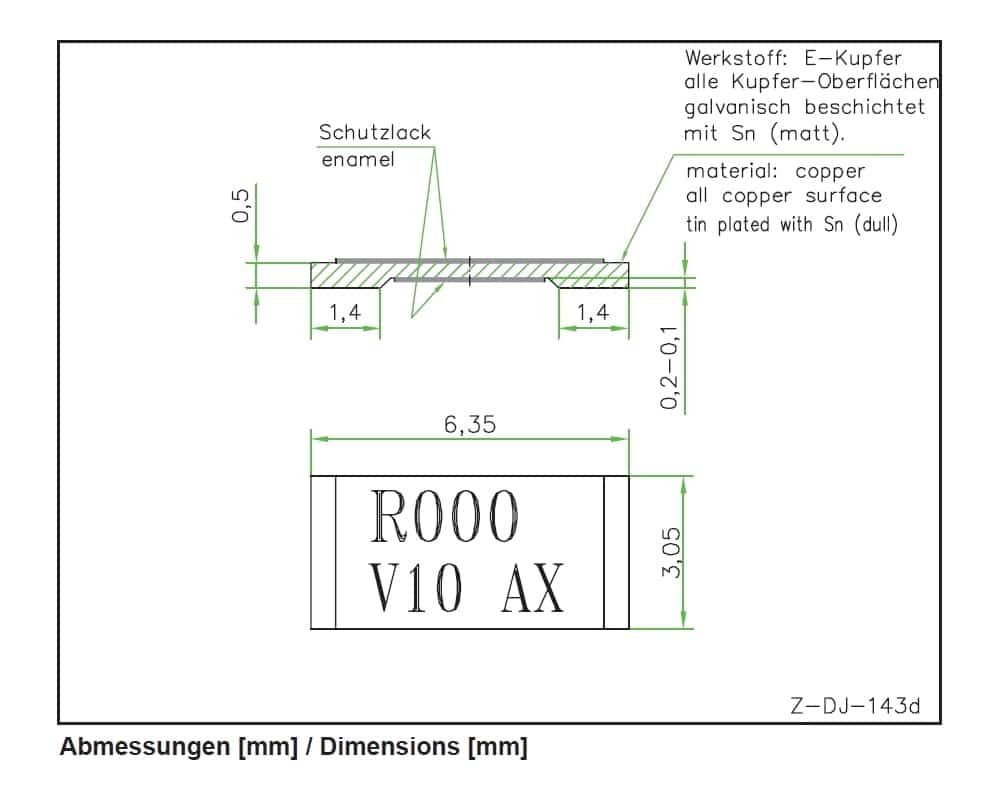

Dimensions 0.50 x 3.05 x 6.35mm
