Isabellenhütte SMT-R000 Series

  • Isabellenhütte

Product Features

  • Zero ohm jumper / power bridge
  • 2-terminal surface-mount design in a 2817 chip size
  • Resistance value of <200µΩ
  • Power rating of 2W (at +120°C)
  • Current rating of 100A
  • Temperature range from -65°C to +170°C

Applications

  • Power Control
  • Compliant

Description

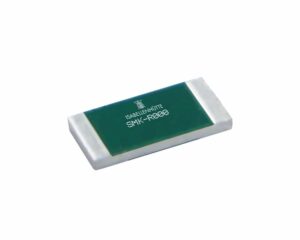

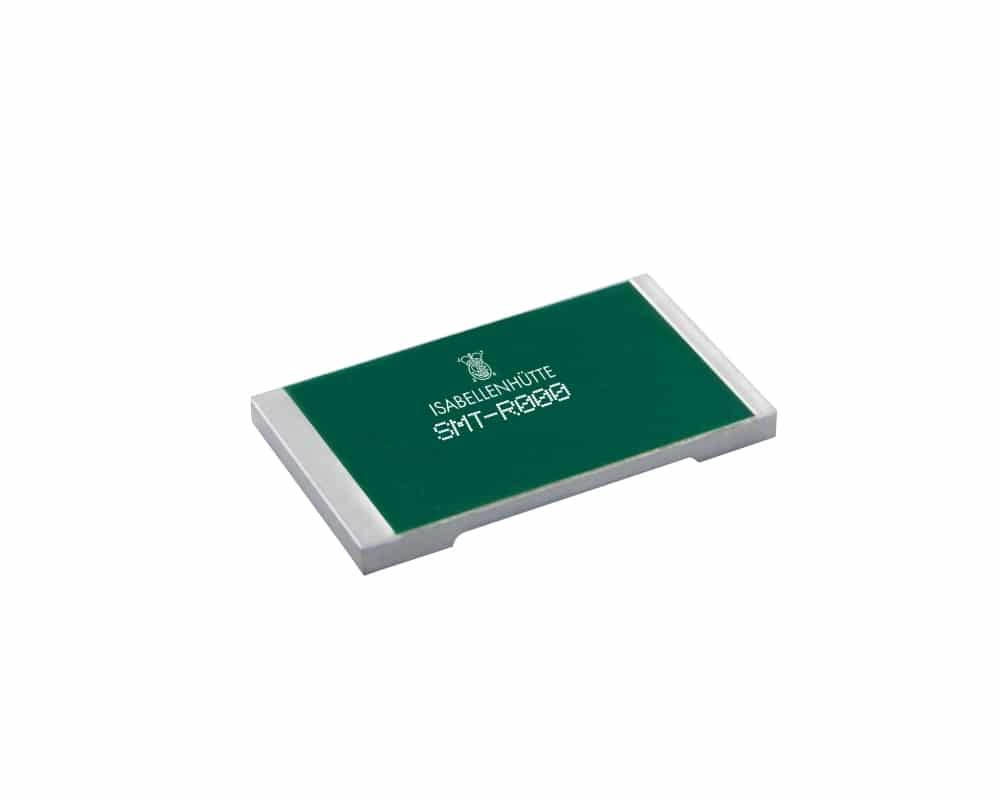

The SMT-R000 Zero ohm jumper / power bridge series from Isabellenhütte offers a 2 terminal surface-mount resistor with up to 100A high current and allows a track width of up to 3.5mm to run underneath. The Isabellenhütte SMT-R000 has a resistance value of <200µΩ with tin-plated copper terminals and enamel top and bottom.

  • Zero ohm jumper / power bridge
  • Surface-mount design in a 2817 chip size
  • Resistance value of <200µΩ
  • Permanent power of 2W (at +120°C)
  • Constant current up to 100A DC
  • Temperature range from -65°C to +170°C
  • Inductance of <3nH
  • Dielectric withstanding voltage of 50V AC/DC



Typical applications for the SMT-R000 Zero ohm jumper / power bridge series include:

  • Jumper / power bridge
  • Multiple usage of a layout



Isabellenhütte SMT-R000 Series Specification Table

AttributesValue
Resistance value<0.2mΩ
TCR (20-60°C)≈3800 ppm/°C
Temperature range-65°C to +170°C
Load capacity2W
Internal heat resistance<25°C/W (Rthi)
Inductance<3nH



Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

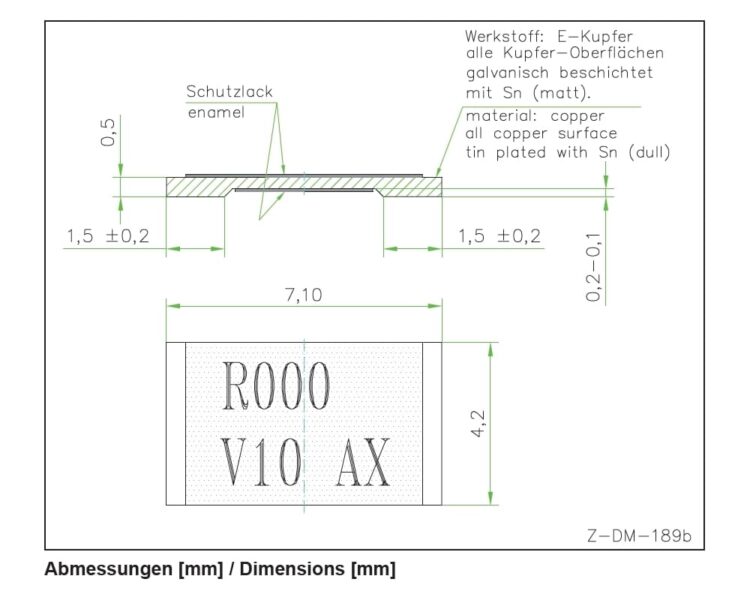

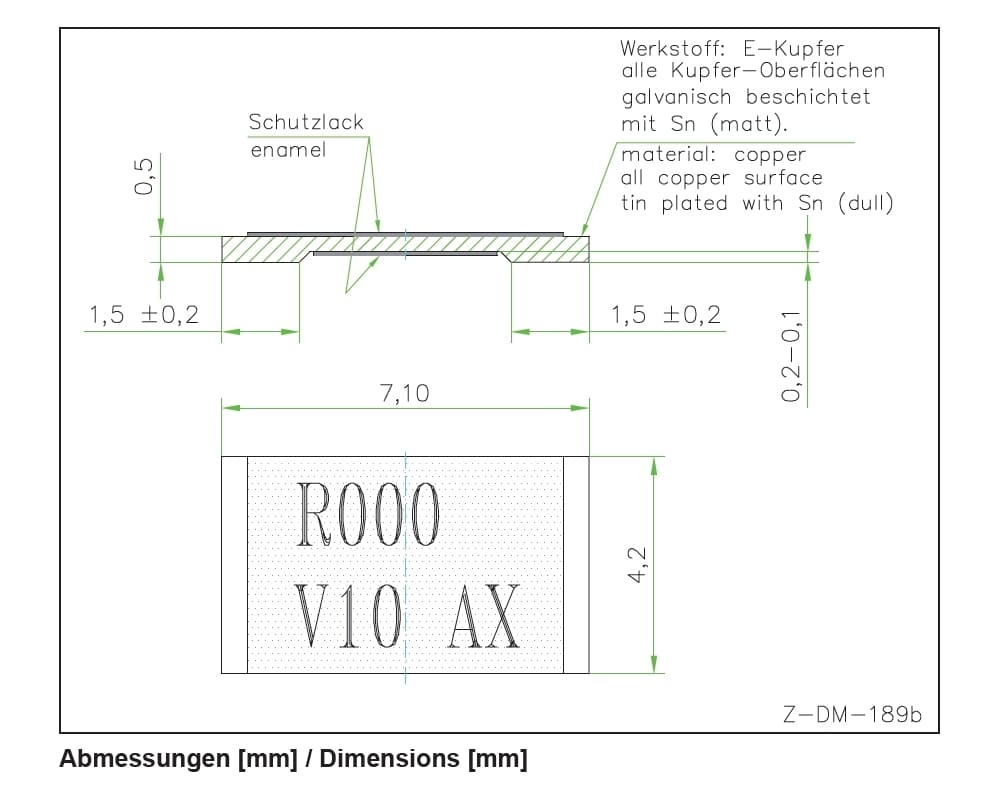

Dimensions 0.50 x 4.20 x 7.10mm
