Caddock USF270 Series

Caddock USF270 Series
Caddock USF270 Series
Caddock USF270 Series
  • Caddock

Product Features

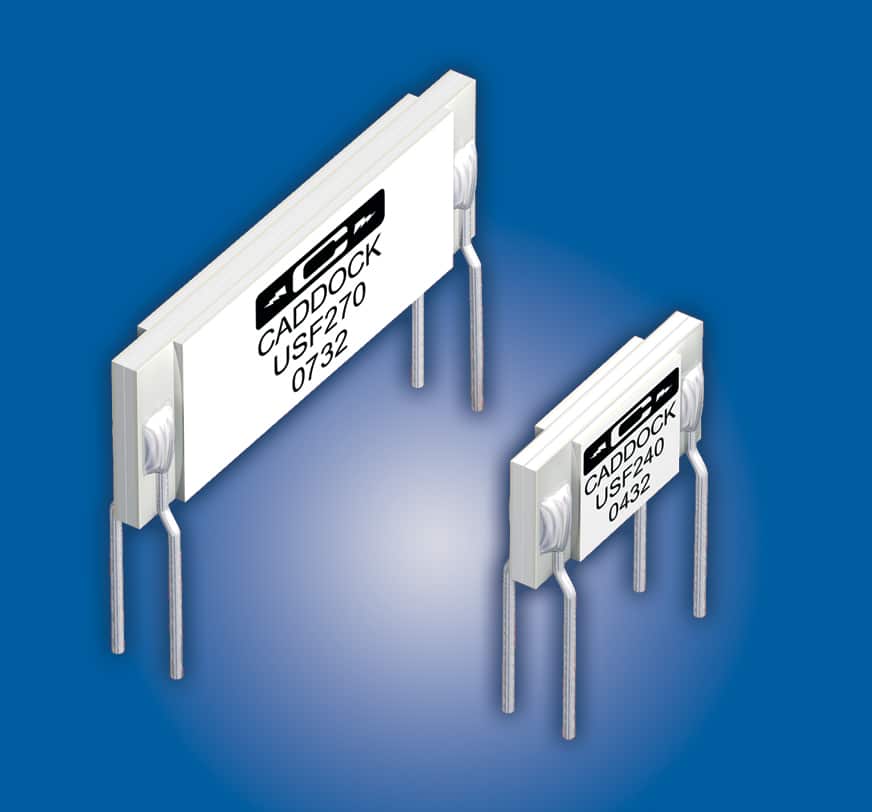

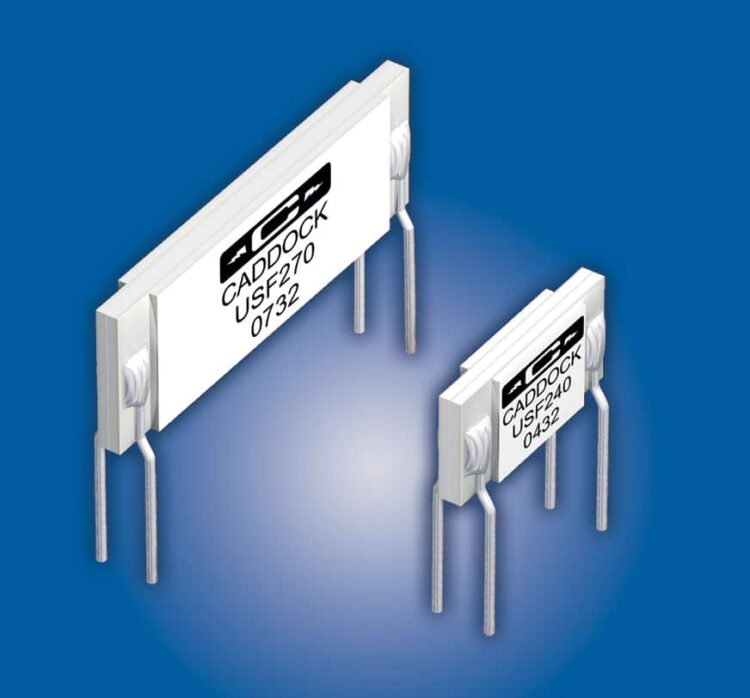

  • Ultra-stable radial leaded film through-hole resistors
  • Constructed with two selected USF300 series resistors bonded back to back for parallel connection on the PCB
  • Maximum working voltage of 1.4kV
  • Ceramic package provides cool operation
  • Utilising Caddock’s proprietary resistance film systems
  • Available in standard resistance values most commonly used in precision analog design
  • Zero nominal TCR
  • Temperature range from -40°C up to +85°C

Applications

  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The USF270 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 990KΩ and 5MΩ, low TCR of ±2 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF270 are constructed with two selected USF300 series resistors bonded back to back for parallel connection on the PCB and using a ceramic package provides cool operation. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.

  • Ultra-stable radial leaded film through-hole resistors
  • Resistance values available are between 990KΩ and 5MΩ
  • TCR of ±2 ppm/°C
  • Tolerance of ±0.01% or ±0.1%
  • Temperature range -40°C to +85°C
  • Maximum working voltage of 1,400V
  • Ceramic package provides cool operation
  • Maximum power rating of 0.75W at +85°C
  • Utilising Caddock’s proprietary resistance film systems



The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in

  • Precise amplifier gain setting
  • Precise resistor bridge circuits
  • Precise transducer sense circuits
  • Precise voltage dividers with up to 2500 volt input voltage



The below table gives the specifications available for the complete USF series including the USF270 model:

Caddock USF270 series Specifications

Specifications

Weight 0.00000 kg

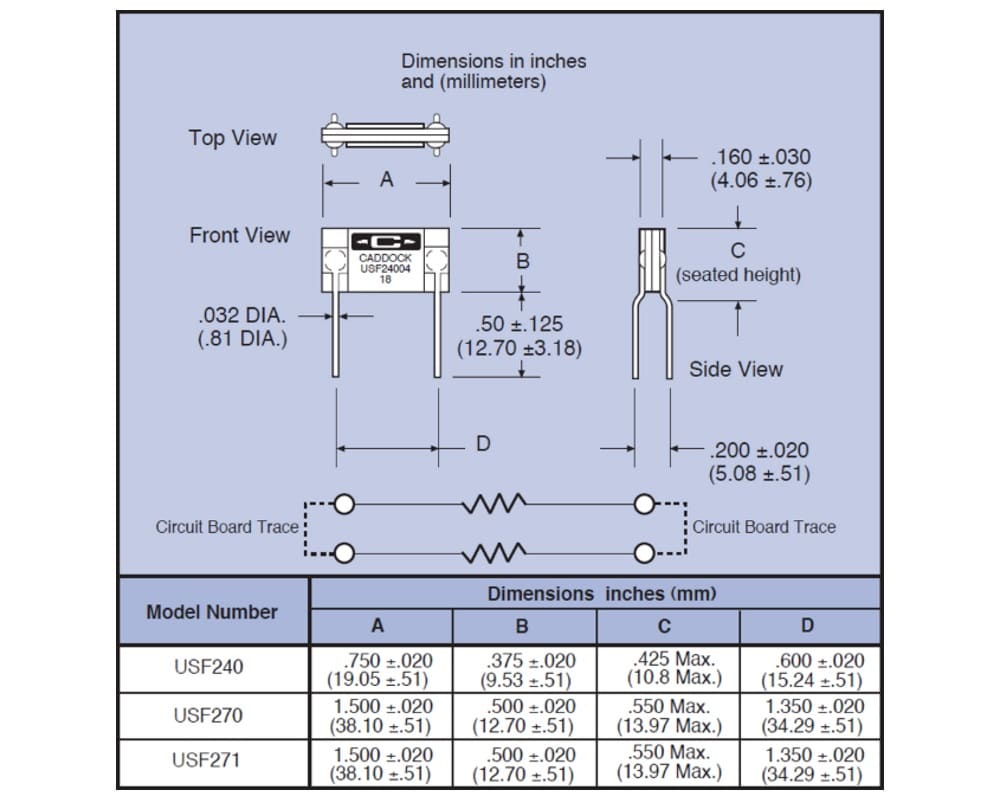

Dimensions 38.10 × 4.06 × 13.97 mm
Minimum Resistance

Series / Model

Maximum Resistance

Temperature Coefficient

Power Rating

Tolerance

,
