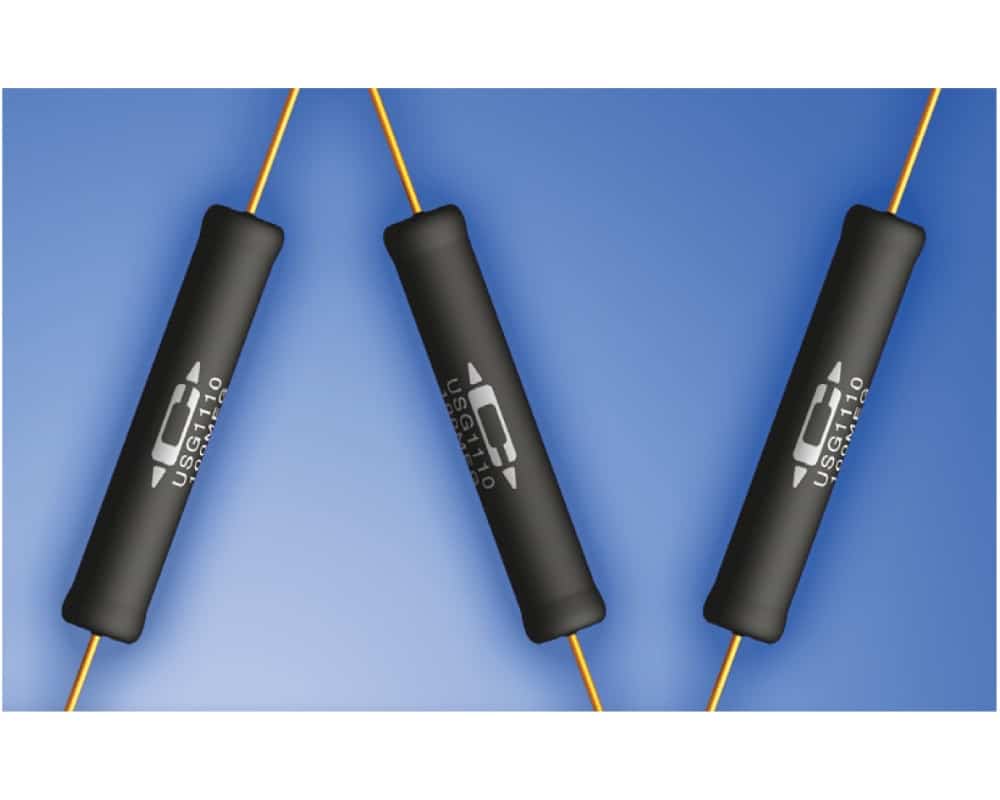

Caddock USGS Series

  • Caddock

Product Features

  • Ultra-stable axial leaded film through-hole resistor sets
  • Sets are available with either 3 or 5 selected USG1110 series resistors (model dependent)
  • Voltage coefficient as low as 0.02 ppm/V per resistor set (model dependent)
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Available in 300MΩ and 500MΩ sets
  • Multiple USGS selected resistor sets can be used in series to achieve higher total resistances and higher voltage ratings

Applications

Description

The USGS series from Caddock are high voltage, ultra stable, low TCR selected resistor sets. The resistance values available for the complete sets are 300MΩ and 500MΩ all with a TCR of 5 ppm/°C and a tolerance of ±0.10% for each set. The USGS resistor sets are designed for use in high voltage systems that require excellent temperature and long term stability. These are manufactured with Caddock’s Tetrinox® resistance film system, the individual resistors that form these sets are individually characterized using automated data acquisition systems and then selected to form a set resistance.

  • Ultra-stable axial leaded film through-hole resistor sets
  • Sets are available with either 3 or 5 selected USG1110 series resistor (model dependent)
  • Resistance values available for the complete sets are 300MΩ and 500MΩ
  • TCR for the complet sets of ±5 ppm/°C
  • Tolerance for the complete sets of ±0.1%
  • Operating temperature -40°C to +85°C
  • Voltage coefficient as low as 0.02 ppm/V per resistor set (500MΩ set) and 0.03 ppm/V per resistor set (300MΩ set)
  • Utilising Caddock’s Tetrinox® resistance film systems

Multiple USGS selected resistor sets can be used in series to form a string of resistors that achieve a higher total resistance and a higher voltage rating with 5 ppm/°C overall temperature coefficient.

The below table gives the specifications available for the complete USGS series:

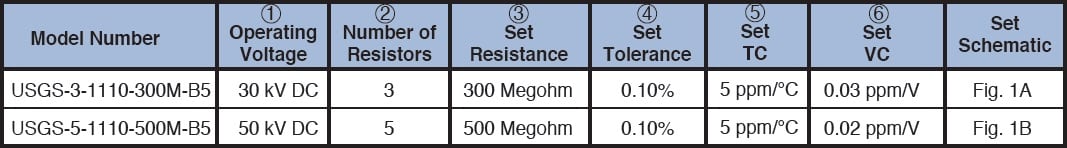

Caddock USGS series Specifications

* Please see the datasheet for the specification notes.


Specifications

Weight 0.00000 kg

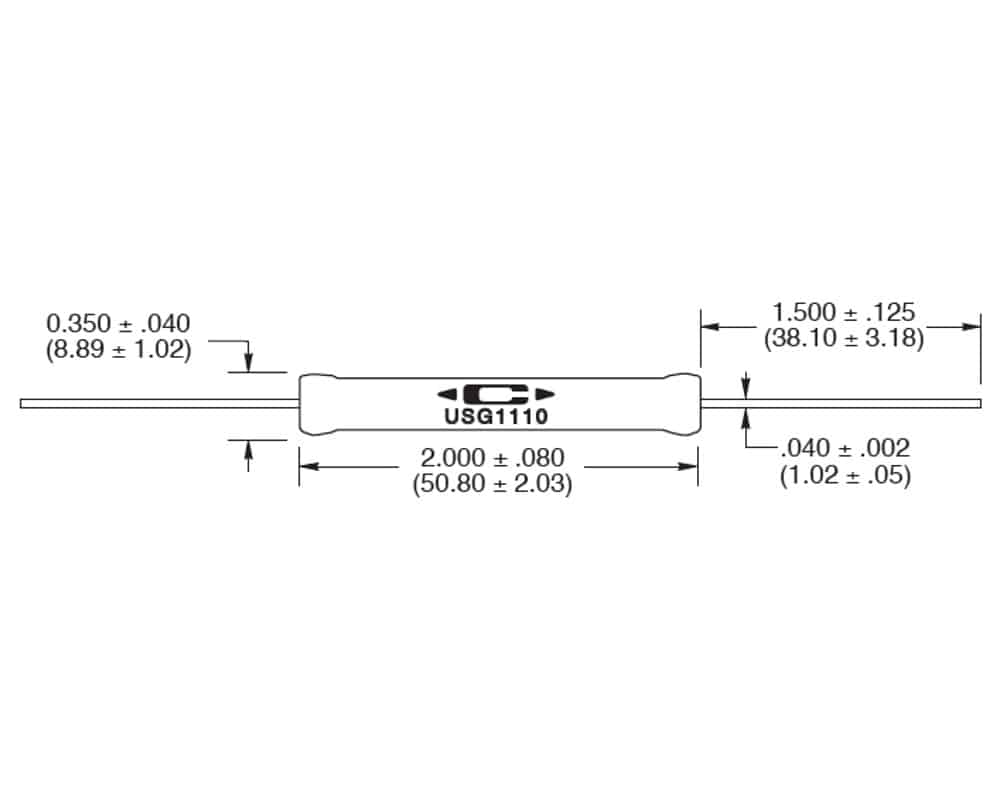

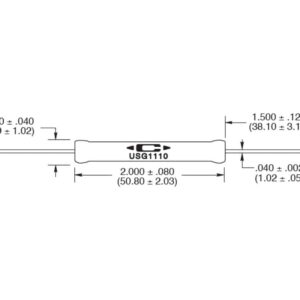

Dimensions 50.80 × 8.89 × 0.00 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

Additional Features

Ultra-stable axial leaded film through-hole resistor setsSets are available with either 3 or 5 selected USG1110 series resistors (model dependent)Voltage coefficient as low as 0.02 ppm/V per resistor

Tolerance

Voltage Rating

RoHS Compliant Product – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU and 2015/863/EU
