Caddock USG1105 Series

Product Features

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.
  • Exempt

The USG1105 series from Caddock are ultra-stable precision high voltage resistors. The resistance values available are 50MΩ and 75MΩ with a TCR of 10 ppm/°C or 20 ppm/°C and a tolerance of ±0.10% or ±0.20% depending on the resistance value required. The USG1105 series from Caddock uses the Tetrinox® resistance film system and was developed to optimise low temperature coefficient performance and long term stability performance.

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Resistance values available are 50MΩ and 75MΩ
  • TCR of 10 ppm/°C or 20 ppm/°C depending on the resistance value required
  • Tolerance of ±0.1% or ±0.2% depending on the resistance value required
  • Temperature range -40°C to +85°C
  • Maximum voltage rating 5KV
  • Typical load life stability 0.025% per 1,000 hours
  • Utilising Caddock’s Tetrinox® resistance film systems



The low TCR of the Type USG1105 resistors minimizes temperature related drift due to temperature gradients that may exist due to the placement of the resistor components in the high voltage assembly

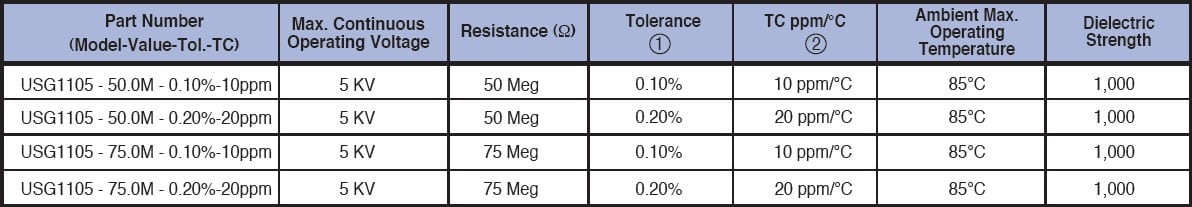

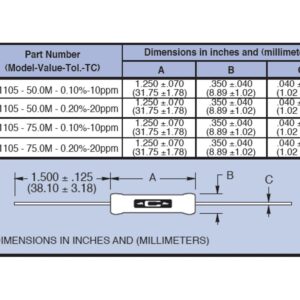

The below table gives the specifications available for the USG1105 series:

Caddock USG1105 series Specifications
* Please see the datasheet for the specification notes.





Specifications

Weight 0.00000 kg

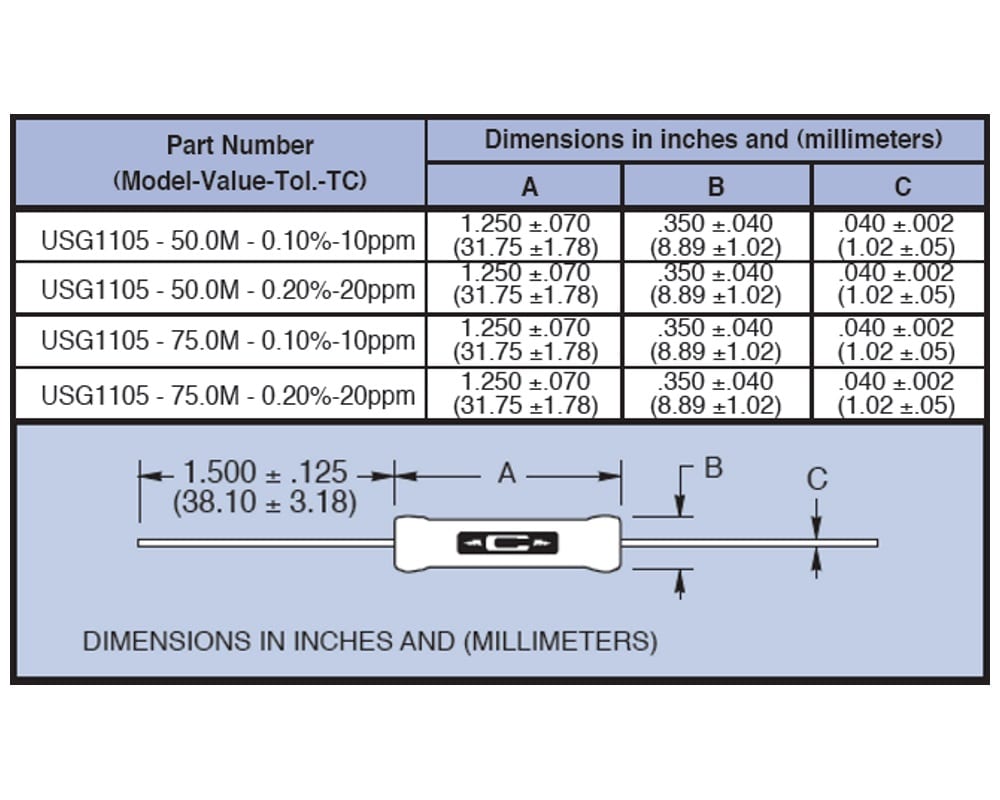

Dimensions 0.00 x 8.89 x 31.75mm
Maximum Resistance

75MΩ

Minimum Resistance

50MΩ

Series / Model

Temperature Coefficient

,

Tolerance

,

Voltage Rating
