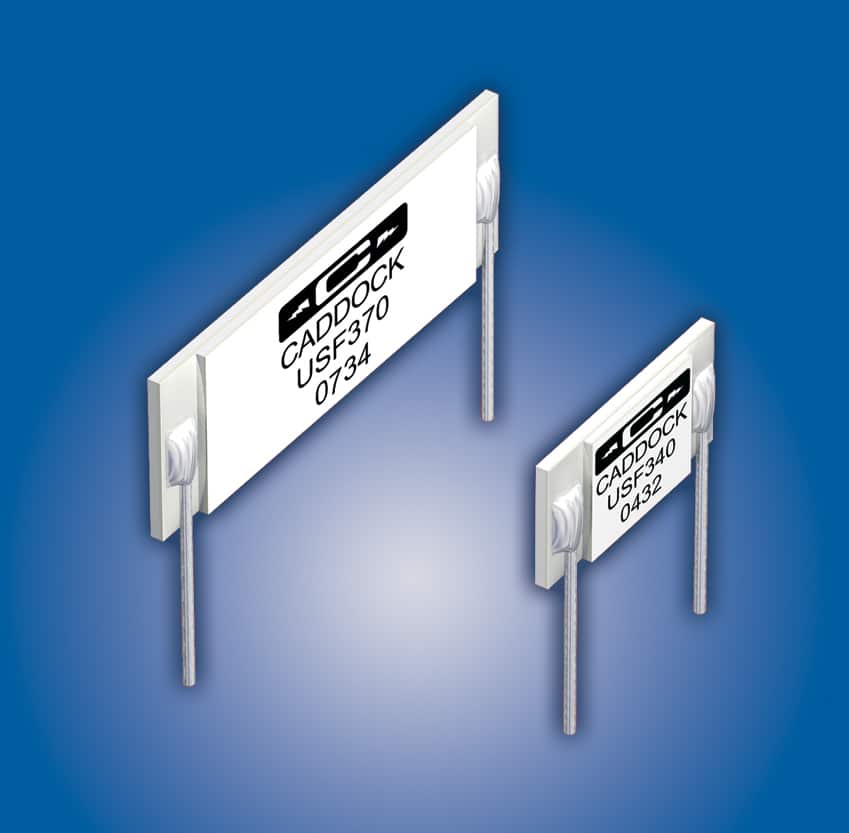

Caddock USF370 Series

Caddock USF370 Series
Caddock USF370 Series
Caddock USF370 Series
  • Caddock

Product Features

  • Ultra-stable radial leaded film through-hole resistors
  • Maximum working voltage of 1.4kV
  • Ceramic package provides cool operation
  • Utilising Caddock’s proprietary resistance film systems
  • Available in standard resistance values most commonly used in precision analog design
  • Zero nominal TCR
  • Temperature range from -40°C up to +85°C

Applications

  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The USF370 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 990KΩ and 10MΩ, low TCR of ±5 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF370 are constructed with an aluminum oxide ceramic sandwich which provides great thermal conductivity which very effectively minimizes the power coefficient drift. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.

  • Ultra-stable radial leaded film through-hole resistors
  • Resistance values available are between 990KΩ and 10MΩ
  • TCR of ±5 ppm/°C
  • Tolerance of ±0.01% or ±0.1%
  • Temperature range -40°C to +85°C
  • Maximum working voltage of 1,400V
  • Ceramic package provides cool operation
  • Maximum power rating of 0.75W at +85°C
  • Utilising Caddock’s proprietary resistance film systems



The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in

  • Precise amplifier gain setting
  • Precise resistor bridge circuits
  • Precise transducer sense circuits
  • Precise voltage dividers with up to 2500 volt input voltage



The below table gives the specifications available for the complete USF series including the USF370 model:

Caddock USF370 series Specifications

Specifications

Weight 0.00000 kg

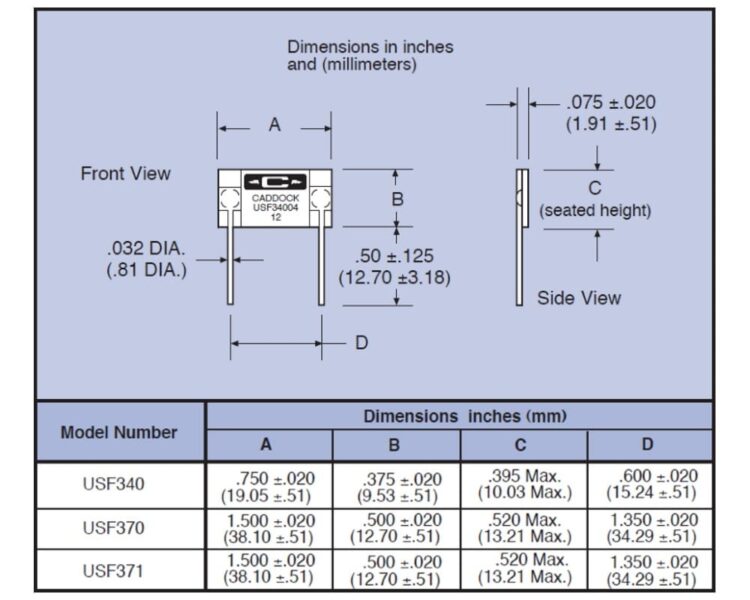

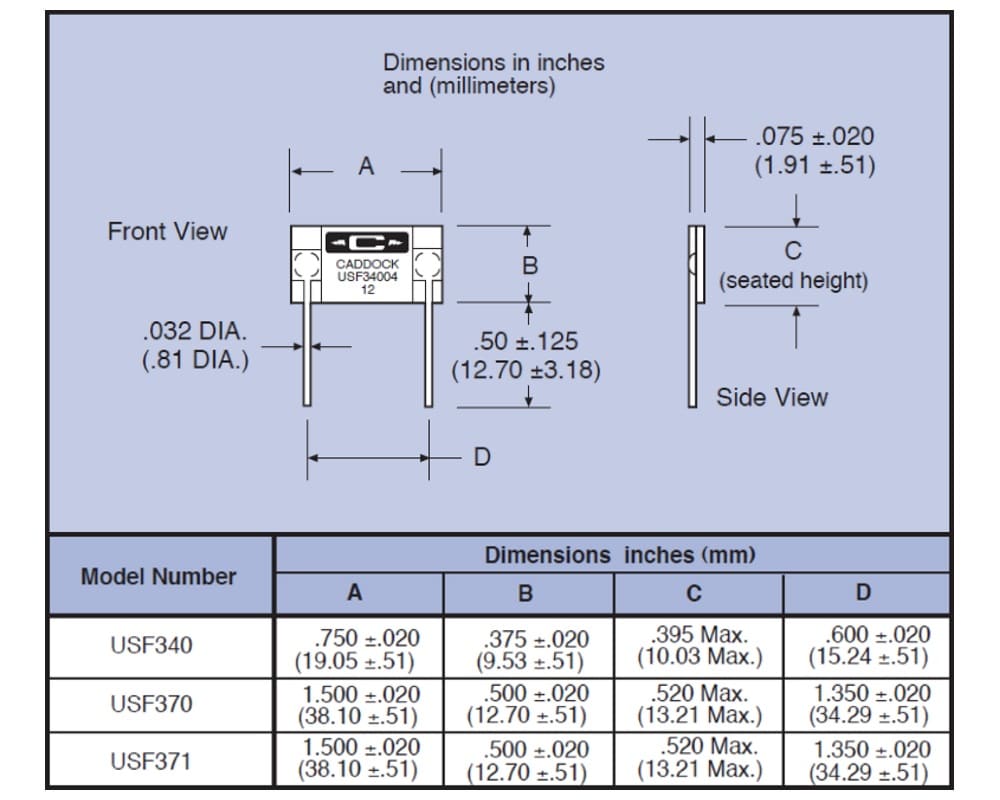

Dimensions 38.10 × 1.91 × 13.21 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

Power Rating

Tolerance

,

Caddock USF370 Series Resources

Product Datasheet

Supporting Manufacturer Information
