High Voltage Chip Resistors

Exxelia Ohmcraft HVC 0805

High Voltage SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.5% to ±20%
TCR of ±50 ppm/°C, ±100 ppm/°C or ±200 ppm/°C
Power rating of 0.2W
Voltage rating of 600V
Temperature range from -55°C to +150°C

Datasheet

Resistance Value

Tolerance

Temperature Coefficient

Termination / Connection

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

HVC Series Description

High Voltage SMD Resistors
Voltage ratings from 150V to 5kV
Power ratings from 0.4W to 2W
Available in any resistance from 10kΩ to 50GΩ *
Standard chip sizes of
0402, 0603, 0805, 1206, 2010, 2512, 3512, 4020 & 5020 *
Tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
TCR ratings of ±25ppm/°C, ±50ppm/°C, ±100ppm/°C or ±200ppm/°C
Ultra-high stability
Very low noise
VCR down to 1 ppm/V
Operating temperature range of -55°C to 150°C

* Custom configurations are available upon request The HVC High voltage chip resistor series from Exxelia Ohmcraft® offers voltage ratings from 150V, power ratings from 0.04W and a resistance range of 10kΩ up to 50GΩ, all in small surface mount packages. By utilising their patented Micropen® precision printing technology, Exxelia Ohmcraft are able to provide superior precision, thick-film SMD resistors with excellent electrical characteristics. The HVC resistor series offers very low noise and ultra-high stability with tolerances down to ±0.1%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.

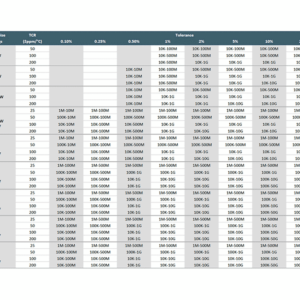

Specifications

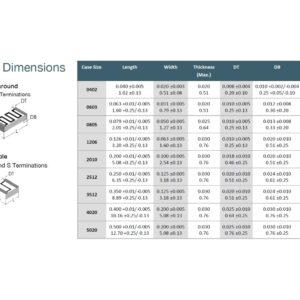

Dimensions	0.64 x 1.27 x 2.01mm
Product Type	High Voltage Resistor
Design Technology	SMD (surface mount)
Series / Model	HVC
Package / Size	0805
Minimum Resistance	10kΩ
Maximum Resistance	50GΩ
Tolerance	±1%, ±2%, ±5%, ±10%, ±20%
Temperature Coefficient	±100 ppm/°C, ±200 ppm/°C
Power Rating	0.2W
Voltage Rating	600V
Termination / Connection	Epoxy Bondable Gold Wraparound Over Nickel (RoHS), Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Single Surface Sn63Pb37 (Non-RoHS), Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
Temperature Range (°C)	-55 to +150°C

Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.

Series / Model (HVC)

HVC: HVC

Package / Size (XXXX)

0805: 0805

Temperature Coefficient (X)

K: ±100 ppm/°C
L: ±200 ppm/°C

Resistance Value (XXXX)

Resistance value is expressed as a four-digit number, where the first three numbers are the significant value, and the fourth number is the number of zeroes.

Tolerance (X)

F: ±1%
G: ±2%
J: ±5%
K: ±10%
L: ±20%

Termination / Connection (X)

B: Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
S: Solderable Single Surface Sn63Pb37 (Non-RoHS)
T: Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS)
U: Epoxy Bondable Gold Wraparound Over Nickel (RoHS)
Z: Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS)

Product Variations

SKU	Resistance Value	Tolerance	Temperature Coefficient
HVC0805X(10k-10M)XX	Custom (10kΩ - 10MΩ)
Exxelia Ohmcraft HVC 0805	Custom (10MΩ - 500MΩ)	±1%
Exxelia Ohmcraft HVC 0805	Custom (10MΩ - 500MΩ)	±2%
Exxelia Ohmcraft HVC 0805	Custom (10MΩ - 500MΩ)	±5%
Exxelia Ohmcraft HVC 0805	Custom (10MΩ - 500MΩ)	±10%
Exxelia Ohmcraft HVC 0805	Custom (10MΩ - 500MΩ)	±20%
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±1%	±100 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±2%	±100 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±5%	±100 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±10%	±100 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±20%	±100 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±1%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±2%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±5%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±10%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (500MΩ - 1GΩ)	±20%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (1GΩ - 10GΩ)	±5%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (1GΩ - 10GΩ)	±10%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (1GΩ - 10GΩ)	±20%	±200 ppm/°C
Exxelia Ohmcraft HVC 0805	Custom (10GΩ - 50GΩ)	±20%	±200 ppm/°C

HVC Series Products

Product name	Package / Size	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Power Rating	Voltage Rating
Exxelia Ohmcraft HVC 0402	0402	10kΩ	1GΩ	±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.04W	150V	View Product
Exxelia Ohmcraft HVC 0603	0603	10kΩ	50GΩ	±1%, ±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.06W	400V	View Product
Exxelia Ohmcraft HVC 0805	0805	10kΩ	50GΩ	±1%, ±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.2W	600V	View Product
Exxelia Ohmcraft HVC 1206	1206	10kΩ	50GΩ	±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	0.33W	1.5kV	View Product
Exxelia Ohmcraft HVC 2010	2010	10kΩ	50GΩ	±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	1W	2kV	View Product
Exxelia Ohmcraft HVC 2512	2512	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	3kV	View Product
Exxelia Ohmcraft HVC 3512	3512	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	3.5kV	View Product
Exxelia Ohmcraft HVC 4020	4020	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	4kV	View Product
Exxelia Ohmcraft HVC 5020	5020	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	5kV	View Product

Exxelia Ohmcraft Video Library

Resources

Product Datasheet

Exxelia Ohmcraft HVC Series Datasheet
Exxelia Ohmcraft HVC high voltage surface-mount resistor series datasheet

Supporting Product Information

Exxelia Ohmcraft Application Note – High-Voltage Resistor

Supporting Manufacturer Information

Application Note – Micropenning
Exxelia Ohmcraft Application Note – Case Size
Exxelia Ohmcraft Application Note – Glossary
Exxelia Ohmcraft Application Note – High-Frequency
Exxelia Ohmcraft Application Note – High-Voltage Resistor
Exxelia Ohmcraft Application Note – Lead Free Policy
Exxelia Ohmcraft Application Note – Solder Reflow
Exxelia Ohmcraft Application Note – Specifying Resistors
Exxelia Ohmcraft Application Note – Voltage Ratio And Coefficient
Exxelia Ohmcraft Product Catalogue
Exxelia Ohmcraft Resistors Catalogue
Exxelia Ohmcraft’s High-Value Resistor White Paper
Exxelia Ohmcraft’s precision high-value chip resistors white paper
Exxelia Ohmcraft’s High-Voltage White Paper
Exxelia Ohmcraft’s high-voltage chip resistors white paper
Exxelia Ohmcraft’s Low Current Noise White Paper
Exxelia Ohmcraft’s low current noise resistors white paper
Exxelia Ohmcraft’s Resistor Pulse White Paper
Exxelia Ohmcraft’s resistor pulse withstanding capability white paper
Exxelia Ohmcraft’s TCR Tracking White Paper
Exxelia Ohmcraft’s superior TCR tracking in resistor networks and dividers
Exxelia Ohmcraft’s Tight Ratio Tolerance White Paper
Exxelia Ohmcraft’s tight ratio tolerance resistor networks whitepaper
