* Custom configurations are available upon request The HVC High voltage chip resistor series from Exxelia Ohmcraft® offers voltage ratings from 150V, power ratings from 0.04W and a resistance range of 10kΩ up to 50GΩ, all in small surface mount packages. By utilising their patented Micropen® precision printing technology, Exxelia Ohmcraft are able to provide superior precision, thick-film SMD resistors with excellent electrical characteristics. The HVC resistor series offers very low noise and ultra-high stability with tolerances down to ±0.1%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.
| Dimensions | 0.51 x 0.51 x 1.02mm |
|---|---|
| Product Type | |
| Design Technology | SMD (surface mount) |
| Series / Model | |
| Package / Size | |
| Minimum Resistance | 10kΩ |
| Maximum Resistance | 1GΩ |
| Tolerance | |
| Temperature Coefficient | |
| Power Rating | |
| Voltage Rating | |
| Termination / Connection | Epoxy Bondable Gold Wraparound Over Nickel (RoHS), Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Single Surface Sn63Pb37 (Non-RoHS), Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS) |
| Temperature Range (°C) | -55 to +150°C |
Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.
Resistance value is expressed as a four-digit number, where the first three numbers are the significant value, and the fourth number is the number of zeroes.
| SKU | Resistance Value | Tolerance | Temperature Coefficient | Termination / Connection |
|---|---|---|---|---|
| HVC0402X(10k-100M)XX | Custom (10kΩ - 100MΩ) | |||
| HVC0402K(100M-500M)XX | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ||
| HVC0402L(100M-500M)XX | Custom (100MΩ - 500MΩ) | ±200 ppm/°C | ||
| HVC0402L(500M-1G)GX | Custom (500MΩ - 1GΩ) | ±2% | ±200 ppm/°C | |
| HVC0402L(500M-1G)JX | Custom (500MΩ - 1GΩ) | ±5% | ±200 ppm/°C | |
| HVC0402L(500M-1G)KX | Custom (500MΩ - 1GΩ) | ±10% | ±200 ppm/°C | |
| HVC0402L(500M-1G)LX | Custom (500MΩ - 1GΩ) | ±20% | ±200 ppm/°C |

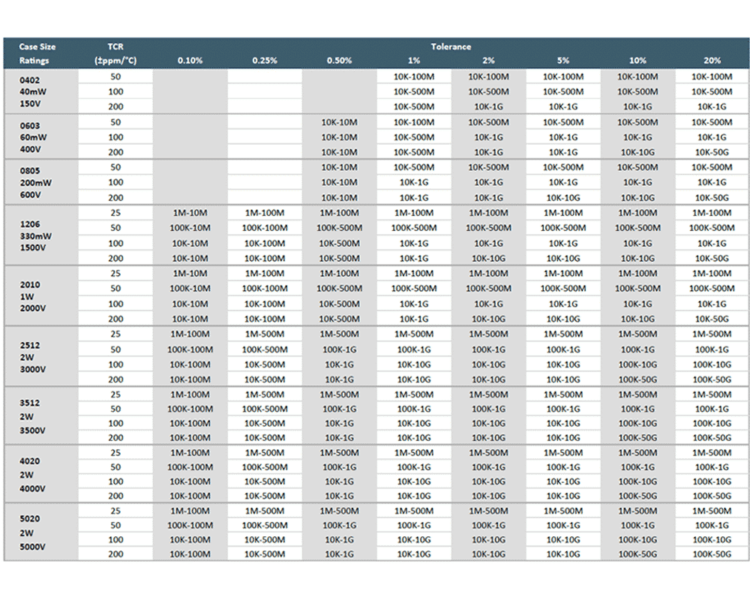

| Product name | Package / Size | Minimum Resistance | Maximum Resistance | Tolerance | Temperature Coefficient | Power Rating | Voltage Rating | ||
|---|---|---|---|---|---|---|---|---|---|
| Exxelia Ohmcraft HVC 0402 | 0402 | 10kΩ | 1GΩ | ±2%, ±5%, ±10%, ±20% | ±100 ppm/°C, ±200 ppm/°C | 0.04W | 150V | View Product |
|
| Exxelia Ohmcraft HVC 0603 | 0603 | 10kΩ | 50GΩ | ±1%, ±2%, ±5%, ±10%, ±20% | ±100 ppm/°C, ±200 ppm/°C | 0.06W | 400V | View Product |
|
| Exxelia Ohmcraft HVC 0805 | 0805 | 10kΩ | 50GΩ | ±1%, ±2%, ±5%, ±10%, ±20% | ±100 ppm/°C, ±200 ppm/°C | 0.2W | 600V | View Product |
|
| Exxelia Ohmcraft HVC 1206 | 1206 | 10kΩ | 50GΩ | ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 0.33W | 1.5kV | View Product |
|
| Exxelia Ohmcraft HVC 2010 | 2010 | 10kΩ | 50GΩ | ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 1W | 2kV | View Product |
|
| Exxelia Ohmcraft HVC 2512 | 2512 | 10kΩ | 50GΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 2W | 3kV | View Product |
|
| Exxelia Ohmcraft HVC 3512 | 3512 | 10kΩ | 50GΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 2W | 3.5kV | View Product |
|
| Exxelia Ohmcraft HVC 4020 | 4020 | 10kΩ | 50GΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 2W | 4kV | View Product |
|
| Exxelia Ohmcraft HVC 5020 | 5020 | 10kΩ | 50GΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C | 2W | 5kV | View Product |
