Exxelia Ohmcraft HVC 3512

Product Features

High Voltage SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to ±200 ppm/°C
Power rating of 2W
Voltage rating of 3.5kV
Temperature range from -55°C to +150°C

Datasheet

Resistance Value

Tolerance

Temperature Coefficient

Termination / Connection

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

HVC Series Description

High Voltage SMD Resistors
Voltage ratings from 150V to 5kV
Power ratings from 0.4W to 2W
Available in any resistance from 10kΩ to 50GΩ *
Standard chip sizes of
0402, 0603, 0805, 1206, 2010, 2512, 3512, 4020 & 5020 *
Tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
TCR ratings of ±25ppm/°C, ±50ppm/°C, ±100ppm/°C or ±200ppm/°C
Ultra-high stability
Very low noise
VCR down to 1 ppm/V
Operating temperature range of -55°C to 150°C

* Custom configurations are available upon request The HVC High voltage chip resistor series from Exxelia Ohmcraft® offers voltage ratings from 150V, power ratings from 0.04W and a resistance range of 10kΩ up to 50GΩ, all in small surface mount packages. By utilising their patented Micropen® precision printing technology, Exxelia Ohmcraft are able to provide superior precision, thick-film SMD resistors with excellent electrical characteristics. The HVC resistor series offers very low noise and ultra-high stability with tolerances down to ±0.1%, TCR as low as ±25 ppm/°C and VCR down to 1 ppm/V.

Specifications

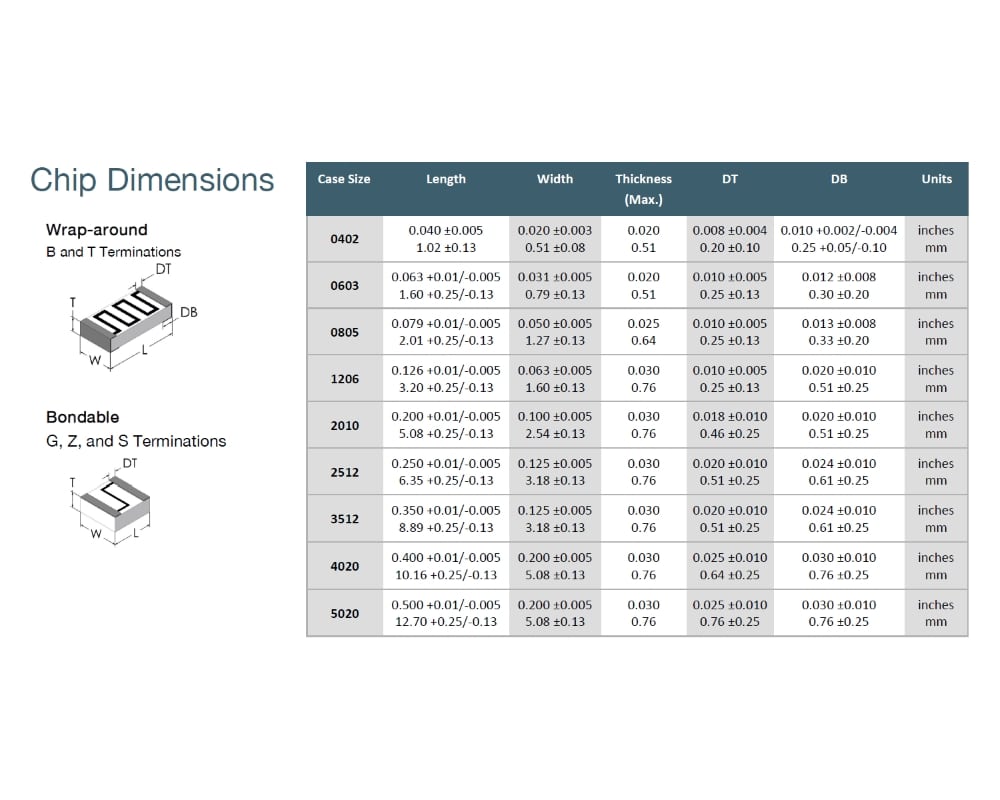

Dimensions	0.76 x 3.18 x 8.89mm
Product Type	High Voltage Resistor
Design Technology	SMD (surface mount)
Series / Model	HVC
Package / Size	3512
Minimum Resistance	10kΩ
Maximum Resistance	50GΩ
Tolerance	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%
Temperature Coefficient	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C
Power Rating	2W
Voltage Rating	3.5kV
Termination / Connection	Epoxy Bondable Gold Wraparound Over Nickel (RoHS), Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Single Surface Sn63Pb37 (Non-RoHS), Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
Temperature Range (°C)	-55 to +150°C

Series / Model (HVC)

HVC: HVC

Package / Size (XXXX)

3512: 3512

Temperature Coefficient (X)

H: ±50 ppm/°C
K: ±100 ppm/°C
L: ±200 ppm/°C

Resistance Value (XXXX)

Resistance value is expressed as a four-digit number, where the first three numbers are the significant value, and the fourth number is the number of zeroes.

Tolerance (X)

B: ±0.1%
C: ±0.25%
D: ±0.5%
F: ±1%
G: ±2%
J: ±5%
K: ±10%
L: ±20%

Termination / Connection (X)

B: Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
S: Solderable Single Surface Sn63Pb37 (Non-RoHS)
T: Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS)
U: Epoxy Bondable Gold Wraparound Over Nickel (RoHS)
Z: Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS)

Product Variations

SKU	Resistance Value	Tolerance	Temperature Coefficient
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.1%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.25%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.5%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±1%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±2%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±5%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.1%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.25%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±0.5%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±1%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±2%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10kΩ - 100kΩ)	±5%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (100kΩ - 1MΩ)		±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (100kΩ - 1MΩ)		±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (100kΩ - 1MΩ)		±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1MΩ - 100MΩ)
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±0.25%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±0.5%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±1%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±2%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±5%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±10%
Exxelia Ohmcraft HVC 3512	Custom (100MΩ - 500MΩ)	±20%
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±0.5%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±1%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±2%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±5%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±10%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±20%	±50 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±0.5%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±1%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±2%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±5%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±10%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±20%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±0.5%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±1%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±2%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±5%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±10%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (500MΩ - 1GΩ)	±20%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±1%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±2%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±5%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±10%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±20%	±100 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±1%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±2%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±5%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±10%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (1GΩ - 10GΩ)	±20%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10GΩ - 50GΩ)	±10%	±200 ppm/°C
Exxelia Ohmcraft HVC 3512	Custom (10GΩ - 50GΩ)	±20%	±200 ppm/°C

HVC Series Products

Product name	Package / Size	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Power Rating	Voltage Rating

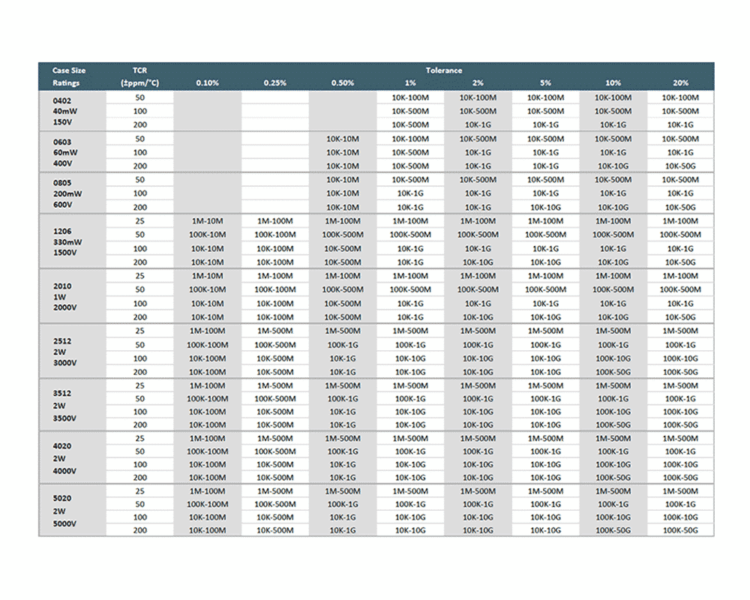

Exxelia Ohmcraft HVC 0402	0402	10kΩ	1GΩ	±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.04W	150V	View Product
