Non-Magnetic Trimmable Thick Film Chip Resistors

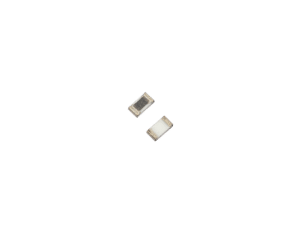

The CRB 0603 non-magnetic, trimmable chip resistor series from SRT Resistor Technology offers a resistance range from 1Ω up to 10MΩ, power rating of 0.1W and voltage rating of 75V trimmed or 220V untrimmed (trimming ratios 1.5/single cut), all in a small 0603 surface mount package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±5.0% and TCR as low as ±50 ppm/°C (between 10Ω and 10MΩ). The CRB 0603 resistor series is suitable for laser and air-abrasive trimming, and offers PtAg (Platinum-Silver), unpassivated contact areas suitable for soldering and conductive gluing. These resistors contain no organics, making them suitable for high vacuum applications.

• Trimmable thick film chip resistor
• Available in any resistance between 1Ω and 10MΩ
• 0603 package
• Power rating of 0.1W at +70°C
• Voltage rating of 75V trimmed or 220V untrimmed (trimming ratios 1.5/single cut)
• Tolerances as low as ±5.0% over the resistance range of 10Ω up to 10MΩ
• TCR as low as ±50 ppm/°C over the resistance range of 10Ω to 10MΩ
• Temperature range from -55°C up to +155°C
• Suitable for laser and air-abrasive trimming
• High trimming ratios by special geometries
• PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
• Non-magnetic
• No organics

Non-symmetric tolerances are also available (e.g. -0/+20%), please contact us for more information.

The CRB trimmable non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CRB-HT product pages for further information.

The below table gives full specifications for each resistor model available including the CRB 0603 series:

¹⁾ Detailed information on request
²⁾ TC50: Temperature range +25°C…+85°C; TK50 not in the resistance range<100R
³⁾Continuous operating voltage U=√(P*R)
