Caddock MP916 Series

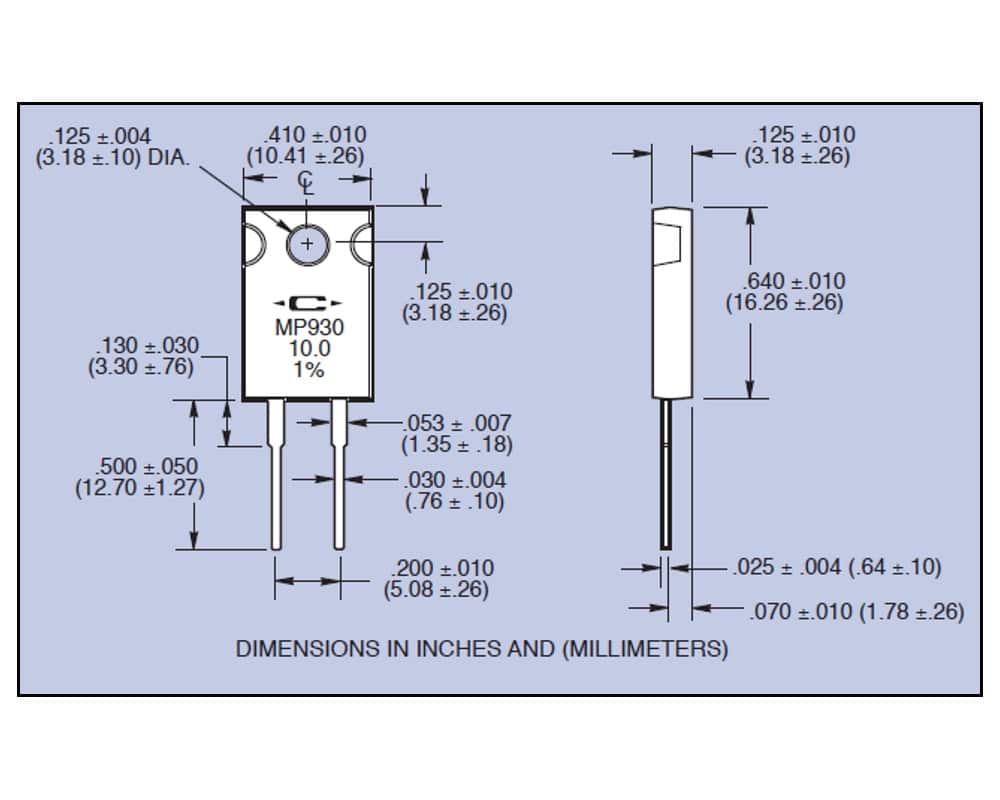

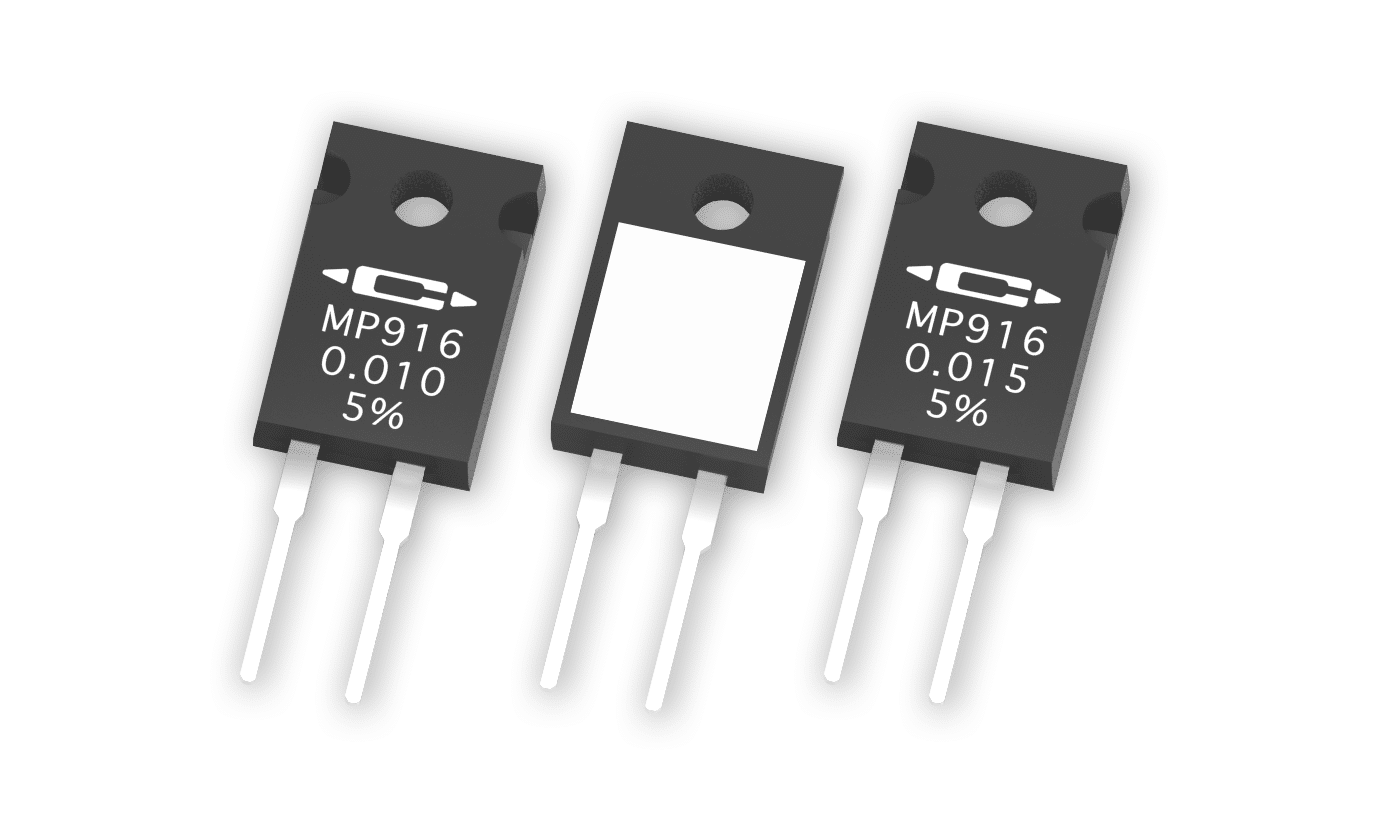

Caddock MP916 power film resistor
Caddock MP916 power film resistor
Caddock MP916 Series
  • Caddock

Product Features

  • TO-220 style Kool-Pak® power through-hole resistor
  • Heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Non-inductive design
  • Constructed with Caddock’s Micronox® resistance film technology
  • Maximum voltage rating is limited by the power
  • Operation up to +150°C case temperature

Applications

  • Power Control
  • Exempt

Description

The MP916 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The standard resistance values available are 0.01Ω and 0.015Ω with a power rating of up to 16W at +25°C case temperature derated to zero at +150°C. The MP916 series tolerance options available are ±5.0% ( standard) and ±20.0%. The MP915 series Kool-Pak® power film resistors are constructed with Caddock’s Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.

  • Kool-Pak® power film through-hole resistor
  • Low-cost heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface.
  • Standard resistance values available are 0.01Ω and 0.015Ω
  • Non-inductive design
  • TCR of 0 to +500 ppm/°C
  • Tolerance of ±5.0% (standard), ±20.0% is also available
  • Power rating of up to 16W at +25°C case temperature derated to zero at +150°C
  • Maximum temperature 150°C



Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.



The below table gives the specifications available for the complete MP900 resistor series including the MP916:

Caddock MP916 Specifications
* Please see the datasheet for the derating curve.



Specifications

Weight 0.00000 kg
Dimensions 10.41 × 3.18 × 19.56 mm
Minimum Resistance

Series / Model

,

Maximum Resistance

Temperature Coefficient

Power Rating

Tolerance
