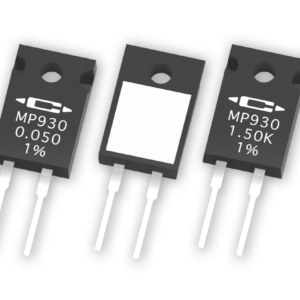

Caddock MP930-1.00k-1%

  • Exempt
  • Caddock

Product Features

  • TO-220 style Kool-Pak® power through-hole resistor
  • Heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Non-inductive design
  • Constructed with Caddock’s Micronox® resistance film technology
  • Maximum voltage rating of 250V
  • Operation up to +150°C case temperature

Applications

  • Power Control

Description

The MP930-1.00k-1% Kool-Pak® power film resistor from Caddock has a heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface and is available at a low cost. It has a  resistance of  1.00kΩ with a power rating of up to 30W at +25°C (case temperature derated to zero at +150°C). The MP930-1.00k-1% is a stocked item here at Rhopoint with a tolerance of ±1.0%, with ±5.0% and ±20.0% options available upon request. The MP930 series Kool-Pak® power film resistors are constructed with Caddock’s Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.

  • Kool-Pak® power film through-hole resistor
  • Low-cost heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Resistance of 1.00kΩ
  • Non-inductive design
  • TCR of -20 to +80 ppm/°C
  • Stocked in tolerance of ±1.0% (±5.0% and ±20.0% are available upon request)
  • Power rating of up to 30W at +25°C (case temperature derated to zero at +150°C)
  • Maximum voltage of 250V
  • Maximum temperature of 150°C



Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.



The below table gives the specifications available for the complete MP900 and MP9000 resistor series including the MP930:

Caddock MP930 Specifications
* Please see the datasheet for the derating curve.



Specifications

Weight 0.00000 kg
Dimensions 19.56 × 3.18 × 19.56 mm
Series / Model

,

Minimum Resistance

Maximum Resistance

Temperature Coefficient

Power Rating

Additional Features

TO-220 style Kool-Pak® power through-hole resistorHeat sink mountable design featuring an exposed ceramic heat dissipating mounting surfaceNon-inductive designConstructed with Caddock's Micronox® r

Tolerance

Caddock MP930-1.00k-1% Resources

Product Datasheet

Supporting Manufacturer Information

Caddock MP930 Series Ordering Info

The MP930 resistor series is available with various options including custom and standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options stocked here at Rhopoint Components or available on short lead times.

Below is an example of the part number breakdown for the Caddock MP900 and MP9000 series including the MP930 resistor models:

Caddock MP930 Series ordering information

The most popular models available from UK stock here at Rhopoint Components or available on short lead times include:



  Resistance Value Tolerance TCR Power Package
MP930-3.00-1% 1% -20 to +80 ppm/°C 30W TO-220
MP930-47.0-1% 47Ω 1% -20 to +80 ppm/°C 30W TO-220
MP930-100-1% 100Ω 1% -20 to +80 ppm/°C 30W TO-220
MP930-1.00K-1% 1kΩ 1% -20 to +80 ppm/°C 30W TO-220
MP930-1.50K-1% 1.5kΩ 1% -20 to +80 ppm/°C 30W TO-220



Caddock MP930-1.00k-1%
