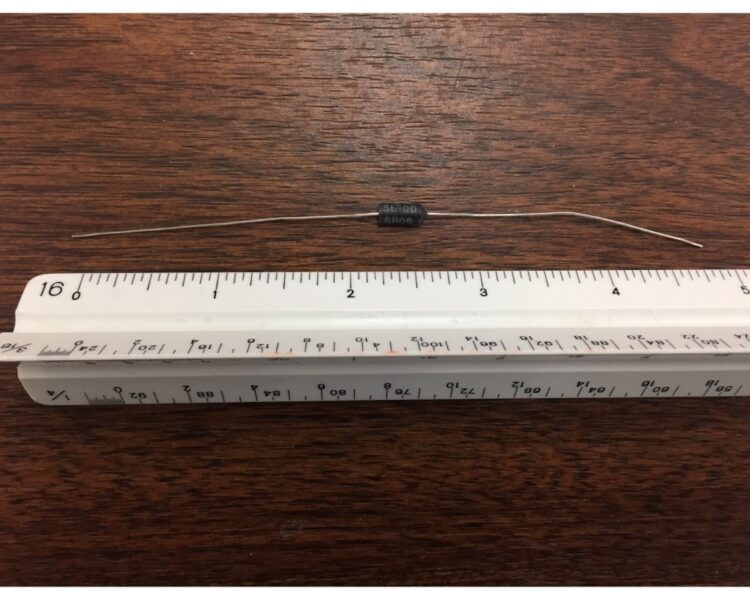

General Resistance 5E10 Mini-Ohm Series

  • Non-compliant
  • General Resistance

Product Features

  • Wirewound axial leaded precision resistor
  • Resistance range from 10Ω to 200kΩ
  • Tight tolerances of ±0.01% and ±0.1%
  • TCR of ±5 ppm/°C
  • Power rating from 0.125W
  • Temperature range from -55°C up to +160°C

Applications

  • Audio
  • Scientific Instrumentation
  • Test and Measurement

Description

The 5E10 Mini-Ohm wirewound axial leaded through-hole resistor series from General Resistance offers ultra-precision and excellent long term stability over temperature and time, with a resistance range from 10Ω up to 200kΩ. The 5E10 Mini-Ohm series utilises the highest quality copper alloy drawn from melts of known resistivity and controlled temperature coefficients. The windings are balanced multiple π for low reactance. Together these enable the 5E10 Mini-Ohm series to have excellent noise levels and lower TCR of ±5 ppm/°C maximum (from -55°C and +125°C).

  • Wirewound axial leaded precision resistor
  • Available in any resistance between 10Ω and 200kΩ including custom values
  • Stocked in many standard resistance values here at Rhopoint Components
  • Small axial leaded through-hole package
  • Excellent stability of ±50ppm/yr
  • Noise levels so small they are immeasurable
  • Wire gauge of 24AWG (0.4mm)
  • Tight tolerance options of ±0.01% (A) and ±0.1% (D) available for the full resistance range
  • TCR of ±5 ppm/°C maximum (from -55°C and +125°C)
  • Maximum working voltage of 175V
  • Power rating of 0.2W (at +85°C, 5E10D model) and 0.125W (at +85°C, 5E10A model)
  • Maximum rated operating temperature +85°C
  • Temperature range from -55°C up to +160°C



The General Resistance ultra-precision wirewound axial leaded resistor series have been used for over 50 years in precision measurement instruments by manufacturers around the world, and should be specified whenever precision circuit operation is to be maintained over a prolonged period of time.

The 5E10 Mini-Ohm series offers ultra-precision in a small compact through-hole package, making them the ideal solution for test and measurement applications including test and calibration equipment.

Any custom resistance value can be produced with a low minimum order requirement of 10 pcs for non standard product (30 pc minimum order quantity for standard parts).



The below table gives the full specifications for each resistor model available in the General Resistance wirewound resistor range including the 5E10 Mini-Ohm series:

General Resistance 5E10 Specifications✝ The 8G24 series has been made obsolete. Some older stock may be available in some instances, please contact us for further details
* For other tolerances, please contact us
** All leads are tinned copper



Specifications

Weight 0.00000 kg
Dimensions 7.90 × 4.00 × 0.00 mm
Product Type

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

,

Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Temperature Coefficient

Package / Size

Temperature Range (°C)

General Resistance Stocked Items

Stocked resistors are selectable from the above dropdown lists. For any other values and tolerances please choose the Custom option.

Non-RoHS Compliant Product – General Resistance

This product is not compliant to the RoHS EU directive 2011/65/EU.

General Resistance Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
General Resistance 8G16, 5G10 and GG102 wirewound through-hole precision resistor series datasheet
General Resistance Non-RoHS (8E16, 5E10 & GG102) to RoHS (8G16, 5G10 & GG102) compliance part number and physical changes document
