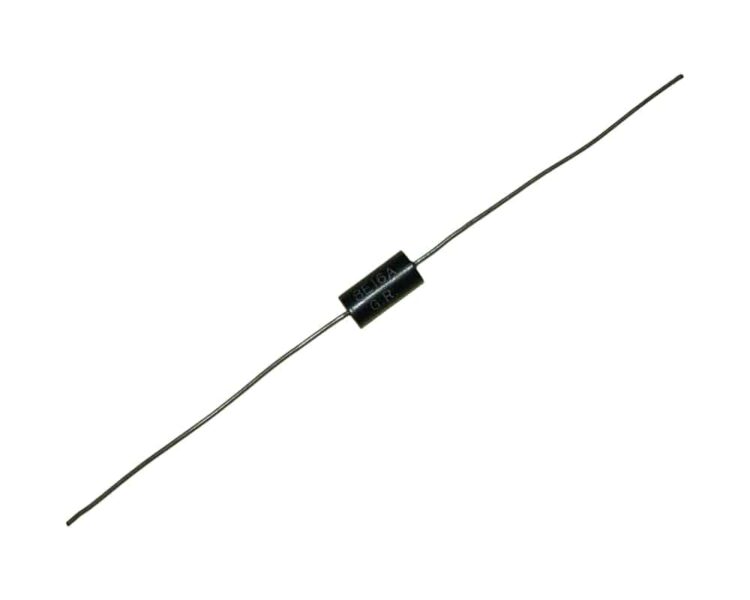

General Resistance 8E16 Econistor Series

  • General Resistance

Product Features

  • Wirewound axial leaded precision resistor
  • Resistance range from 1Ω up to 699kΩ
  • Tight tolerances of ±0.01% and ±0.1%
  • TCR of ±5 ppm/°C
  • Power rating up to 0.33W (8E16D model)
  • Temperature range from -55°C up to +160°C

Applications

  • Audio
  • Test and Measurement
  • Non-compliant

Description

The 8E16 Econistor axial wirewound precision resistor series from General Resistance offers ultra-precision and excellent long term stability over temperature and time, with a resistance range from 1Ω up to 699kΩ. The 8E16 Econistor series utilises the highest quality copper alloy drawn from melts of known resistivity and controlled temperature coefficients. The windings are balanced multiple π for low reactance. Together these enable the 8E16 Econistor series to have excellent noise levels and lower TCR of ±5 ppm/°C maximum (from -55°C and +125°C).

  • Wirewound axial leaded precision resistor
  • Available in any resistance between 1Ω and 699kΩ including custom values
  • Stocked in many standard resistors and RTD simulation values here at Rhopoint Components
  • Wire gauge of 20AWG (0.6mm)
  • Excellent stability of ±35ppm/yr
  • Noise levels so small they are immeasurable
  • Tight tolerance options of ±0.01% (A) and ±0.1% (D) available for the full resistance range
  • TCR of ±5 ppm/°C maximum (from -55°C and +125°C)
  • Maximum working voltage of 200V
  • Power rating of 0.33W (at +85°C, 8E16D model) or ≈0.2W (at +85°C, 8E16A model)
  • Maximum rated operating temperature +85°C
  • Temperature range from -55°C up to +160°C



The 8E16 Econistor axial wirewound precision resistor series is the ideal solution for test and measurement applications including RTD temperature simulation resistors and test and calibration equipment. We stock 21 Pt100 simulation resistance values as standard here at Rhopoint Components, with temperatures from -100°C up to +400°C.

Any custom resistance value between 1Ω and 699kΩ can be produced, with a low minimum order requirement of 10 pcs for non-standard parts, including additional RTD simulation values that are not standard stocked items (30 pc minimum order quantity for standard parts, where they are not stocked).



General Resistance 8G16 / 8E16 Econistor Series Specification Table

AttributesValue
Resistance value1Ω to 699kΩ
Tolerance *±0.01% / ±0.1%
TCR±5ppm/°C (-55 to +125°C)
Temperature range-55°C to +160°C
Power rating0.33W (±0.1%) / 0.2W (±0.01%)
Maximum Voltage200VDC (or AC peak)
Dielectric Withstanding Voltage1000Vrms (typical)
Stability±35ppm/yr.
Wire Gauge **22 AWG / 0.6mm

* For other tolerances, please contact us
** All leads are tinned copper

The General Resistance ultra-precision wirewound resistors have been used for over 50 years in precision measurement instruments by manufacturers around the world and should be specified whenever precision circuit operation is to be maintained over a prolonged period of time. Please visit www.primetechnology.com for more information on the General Resistance product line.

Specifications

Dimensions 12.70 × 6.40 × 0.00 mm
Product Type

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

,

Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , , ,

Temperature Coefficient

Package / Size

Temperature Range (°C)

General Resistance 8E16 Econistor Series Resources

Product Datasheet

Supporting Manufacturer Information

  • General Resistance Non-RoHS Information
    Document to explain the changes from General Resistance between Non-RoHS and RoHS compliant product. 8E16, 5E10 and GR102 are all Non-RoHS Compliant. 8G16, 5G10 and GG102 are all RoHS compliant.

General Resistance 8E16 Econistor Series Ordering Info

The 8E16 Econistor resistor series from General Resistance is available with any custom resistance value between the range of 1Ω and 699kΩ in ±0.1% or ±0.01% tolerances. The information below gives an example of the part numbering system used for these resistors and some standard options we currently hold in stock.

General Resistance 8E16 Econistor Series – Part Number Break Down

General Resistance 8E16 Ordering Info

General Resistance 8E16 Econistor Series – Standard Resistance Values and Tolerances


Resistance Value Part Number Value 0.01% Tolerance 0.1% Tolerance
2.5Ω 2R5
70Ω 70R
80Ω 80R
125Ω 125R
127.07Ω 127R07
130.89Ω 130R89
134.7Ω 134R7
150Ω 150R
220Ω 220R
300Ω 300R
560Ω 560R
680Ω 680R
800Ω 800R
820Ω 820R
2.2kΩΩ 2.2K
3.9kΩΩ 3.9K
5.6kΩΩ 5.6K
6.8kΩΩ 6.8K
9.9kΩΩ 9.9K
15kΩΩ 15K
27kΩΩ 27K
39kΩΩ 39K
60kΩΩ 60K
80kΩΩ 80K
80kΩΩ 80K
82kΩΩ 82K
99kΩΩ 99K
250kΩΩ 250K
