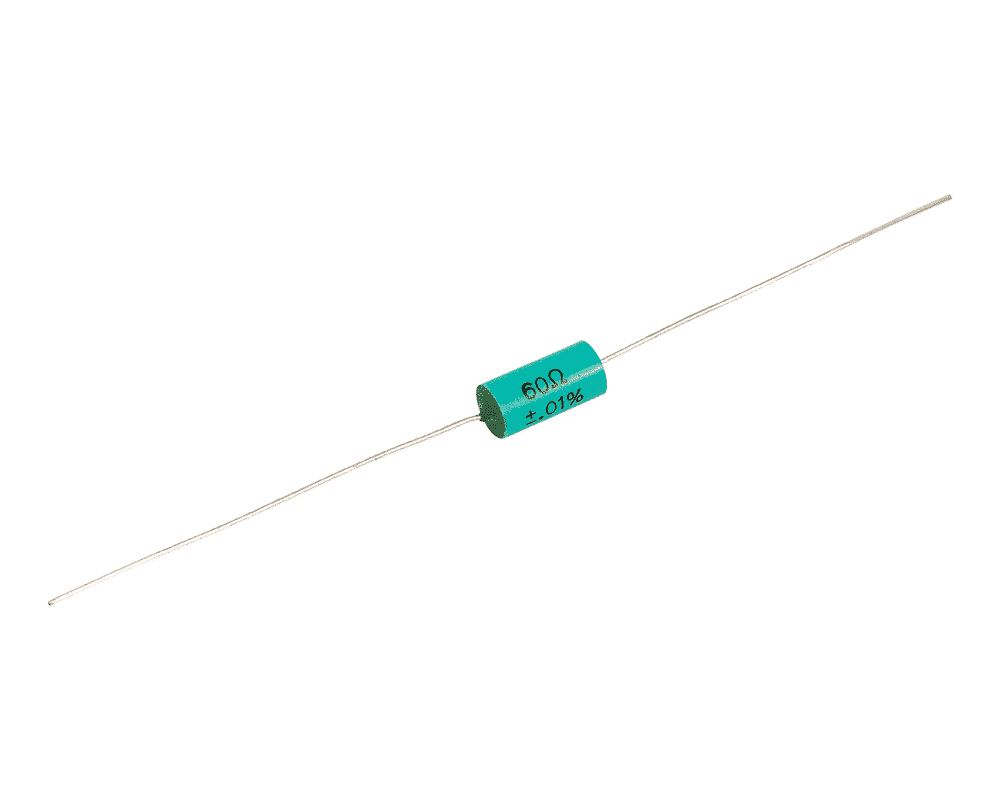

Mini-Ohm Axial Wirewound Precision Resistor

General Resistance 5G10 Mini-Ohm Series

  • Wirewound axial leaded precision resistor
  • Resistance range from 10ฮฉ up to 200kฮฉ
  • Tight tolerances of ยฑ0.01% and ยฑ0.1%
  • TCR of ยฑ5 ppm/ยฐC
  • Power rating up to 0.2W (5G10D model)
  • Temperature range from -55ยฐC up to +160ยฐC
  • Compliant
Datasheet
Any questions, contact us?
Why buy from Rhopoint?
Frequently Asked Questions
Application Notes

The 5G10 Mini-Ohm axial wirewound precision resistor series from General Resistance offers ultra-precision and excellent long term stability over temperature and time, with a resistance range from 10ฮฉ up to 200kฮฉ. The 5G10 Mini-Ohm series utilises the highest quality copper alloy drawn from melts of known resistivity and controlled temperature coefficients. The windings are balanced multiple ฯ€ for low reactance. Together these enable the 5G10 Mini-Ohm series to have excellent noise levels and lower TCR of ยฑ5 ppm/ยฐC maximum (from -55ยฐC and +125ยฐC).

  • Wirewound axial leaded precision resistor
  • Available in any resistance between 10ฮฉ and 200kฮฉ including custom values
  • Stocked in many standard resistance values here at Rhopoint Components
  • Small axial leaded through-hole package
  • Excellent stability of ยฑ50ppm/yr
  • Noise levels so small they are immeasurable
  • Wire gauge of 24AWG (0.4mm)
  • Tight tolerance options of ยฑ0.01% (A) and ยฑ0.1% (D) available for the full resistance range
  • TCR of ยฑ5 ppm/ยฐC maximum (from -55ยฐC and +125ยฐC)
  • Maximum working voltage of 175V
  • Power rating of 0.2W (ยฑ0.1%) and 0.125W (ยฑ0.01%) at +85ยฐC)
  • Maximum rated operating temperature +85ยฐC
  • Temperature range from -55ยฐC up to +160ยฐC



5G10 Mini-Ohm axial wirewound precision resistor series offers ultra-precision in a small compact through-hole package, making them the ideal solution for test and measurement applications including test and calibration equipment.

Any custom resistance value between 10ฮฉ and 200kฮฉ can be produced, with a low minimum order requirement of 10 pcs for non-standard parts (30 pc minimum order quantity for standard parts, where they are not stocked).



General Resistance 5G10 / 5E10 Mini-Ohm Series Specification Table

AttributesValue
Resistance value10ฮฉ to 200kฮฉ
Toleranceยฑ0.01% / ยฑ0.1%
TCRยฑ5ppm/ยฐC (-55 to +125ยฐC)
Temperature range-55ยฐC to +160ยฐC
Power rating *0.2W (ยฑ0.1%) / 0.125W (ยฑ0.01%)
Maximum Voltage175VDC (or AC peak)
Dielectric Withstanding Voltage1000Vrms (typical)
Stabilityยฑ50ppm/yr.
Wire Gauge **24 AWG / 0.4mm

* For other tolerances, please contact us
** All leads are tinned copper

The General Resistance ultra-precision wirewound axial leaded resistor series have been used for over 50 years in precision measurement instruments by manufacturers around the world and should be specified whenever precision circuit operation is to be maintained over a prolonged period of time. Please visit www.primetechnology.com for more information on the General Resistance product line.

Specifications

Dimensions 4.00 x 4.00 x 7.90mm
Product Type

Package / Size

Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Minimum Resistance

10ฮฉ
Maximum Resistance

200kฮฉ
Tolerance

,

Temperature Range (ยฐC)

-55 to +160ยฐC
Power Rating

,

Temperature Coefficient

Series / Model

Ordering Info

Below is the model number configuration for the 5G10 series from General Resistance.
Ordering example: 5G10A 2.5K
5G10X XXXXX

Series / Model (5G10)

5G10
5G10

Tolerance (X)

A
ยฑ0.01%
D
ยฑ0.1%

Resistance Value (XXXXX)

Any custom resistance value between the range of 10ฮฉ and 200kฮฉ. R (Ohms) or K (kOhms) designates the value range. For example 560R or 2.5K.

Product Variations

SKUResistance ValueTolerance
1AMK001K200D1.2kโ„ฆยฑ0.1%
1AMK001K500A1.5kโ„ฆยฑ0.01%
1AMK001K500D1.5kโ„ฆยฑ0.1%
1AMK001K800D1.8kโ„ฆยฑ0.1%
1AMK100K000A100kโ„ฆยฑ0.01%
1AMK100K000D100kโ„ฆยฑ0.1%
1AME100E000A100โ„ฆยฑ0.01%
1AME100E000D100โ„ฆยฑ0.1%
1AMK010K000A10kโ„ฆยฑ0.01%
1AMK010K000D10kโ„ฆยฑ0.1%
1AME010E000A10โ„ฆยฑ0.01%
1AME010E000D10โ„ฆยฑ0.1%
1AME120E000A120โ„ฆยฑ0.01%
1AME120E000D120โ„ฆยฑ0.1%
1AME125E000A125โ„ฆยฑ0.01%
1AME125E000D125โ„ฆยฑ0.1%
1AMK012K000D12kโ„ฆยฑ0.1%
1AME150E000D150โ„ฆยฑ0.1%
1AMK015K000D15kโ„ฆยฑ0.1%
1AME180E000D180โ„ฆยฑ0.1%
1AMK018K000D18kโ„ฆยฑ0.1%
1AMK001K000A1kโ„ฆยฑ0.01%
1AMK001K000D1kโ„ฆยฑ0.1%
1AMK002K200D2.2kโ„ฆยฑ0.1%
1AMK002K500A2.5kโ„ฆยฑ0.01%
1AMK002K500D2.5kโ„ฆยฑ0.1%
1AMK002K700D2.7kโ„ฆยฑ0.1%
1AME200E000A200โ„ฆยฑ0.01%
1AME200E000D200โ„ฆยฑ0.1%
1AMK020K000A20kโ„ฆยฑ0.01%
1AMK020K000D20kโ„ฆยฑ0.1%
1AME020E000A20โ„ฆยฑ0.01%
1AME020E000D20โ„ฆยฑ0.1%
1AME220E000D220โ„ฆยฑ0.1%
1AMK022K000D22kโ„ฆยฑ0.1%
1AME250E000A250โ„ฆยฑ0.01%
1AME250E000D250โ„ฆยฑ0.1%
1AMK025K000A25kโ„ฆยฑ0.01%
1AMK025K000D25kโ„ฆยฑ0.1%
1AME270E000D270โ„ฆยฑ0.1%
1AMK027K000D27kโ„ฆยฑ0.1%
1AMK002K000A2kโ„ฆยฑ0.01%
1AMK002K000D2kโ„ฆยฑ0.1%
1AMK003K300D3.3kโ„ฆยฑ0.1%
1AMK003K900D3.9kโ„ฆยฑ0.1%
1AME300E000A300โ„ฆยฑ0.01%
1AME300E000D300โ„ฆยฑ0.1%
1AMK030K000A30kโ„ฆยฑ0.01%
1AMK030K000D30kโ„ฆยฑ0.1%
1AME030E000A30โ„ฆยฑ0.01%
1AME030E000D30โ„ฆยฑ0.1%
1AME330E000D330โ„ฆยฑ0.1%
1AMK033K000D33kโ„ฆยฑ0.1%
1AME350E000A350โ„ฆยฑ0.01%
1AME350E000D350โ„ฆยฑ0.1%
1AME390E000D390โ„ฆยฑ0.1%
1AMK039K000D39kโ„ฆยฑ0.1%
1AMK003K000A3kโ„ฆยฑ0.01%
1AMK003K000D3kโ„ฆยฑ0.1%
1AMK004K700D4.7kโ„ฆยฑ0.1%
1AME400E000A400โ„ฆยฑ0.01%
1AME400E000D400โ„ฆยฑ0.1%
1AMK040K000A40kโ„ฆยฑ0.01%
1AMK040K000D40kโ„ฆยฑ0.1%
1AME040E000A40โ„ฆยฑ0.01%
1AME040E000D40โ„ฆยฑ0.1%
1AME470E000D470โ„ฆยฑ0.1%
1AMK047K000D47kโ„ฆยฑ0.1%
1AMK004K000A4kโ„ฆยฑ0.01%
1AMK004K000D4kโ„ฆยฑ0.1%
1AMK005K600D5.6kโ„ฆยฑ0.1%
1AME500E000A500โ„ฆยฑ0.01%
1AME500E000D500โ„ฆยฑ0.1%
1AMK050K000A50kโ„ฆยฑ0.01%
1AMK050K000D50kโ„ฆยฑ0.1%
1AME050E000A50โ„ฆยฑ0.01%
1AME050E000D50โ„ฆยฑ0.1%
1AME560E000D560โ„ฆยฑ0.1%
1AMK056K000D56kโ„ฆยฑ0.1%
1AMK005K000A5kโ„ฆยฑ0.01%
1AMK005K000D5kโ„ฆยฑ0.1%
1AMK006K800D6.8kโ„ฆยฑ0.1%
1AME600E000A600โ„ฆยฑ0.01%
1AME600E000D600โ„ฆยฑ0.1%
1AMK060K000A60kโ„ฆยฑ0.01%
1AMK060K000D60kโ„ฆยฑ0.1%
1AME060E000A60โ„ฆยฑ0.01%
1AME060E000D60โ„ฆยฑ0.1%
1AME062E500A62.5โ„ฆยฑ0.01%
1AME062E500D62.5โ„ฆยฑ0.1%
1AME680E000D680โ„ฆยฑ0.1%
1AMK068K000D68kโ„ฆยฑ0.1%
1AMK006K000A6kโ„ฆยฑ0.01%
1AMK006K000D6kโ„ฆยฑ0.1%
1AME700E000A700โ„ฆยฑ0.01%
1AME700E000D700โ„ฆยฑ0.1%
1AMK070K000A70kโ„ฆยฑ0.01%
1AMK070K000D70kโ„ฆยฑ0.1%
1AME070E000A70โ„ฆยฑ0.01%
1AME070E000D70โ„ฆยฑ0.1%
1AMK007K000A7kโ„ฆยฑ0.01%
1AMK007K000D7kโ„ฆยฑ0.1%
1AMK008K200D8.2kโ„ฆยฑ0.1%
1AME800E000A800โ„ฆยฑ0.01%
1AME800E000D800โ„ฆยฑ0.1%
1AMK080K000A80kโ„ฆยฑ0.01%
1AMK080K000D80kโ„ฆยฑ0.1%
1AME080E000A80โ„ฆยฑ0.01%
1AME080E000D80โ„ฆยฑ0.1%
1AME820E000D820โ„ฆยฑ0.1%
1AMK082K000D82kโ„ฆยฑ0.1%
1AMK008K000A8kโ„ฆยฑ0.01%
1AMK008K000D8kโ„ฆยฑ0.1%
1AMK009K900D9.9kโ„ฆยฑ0.1%
1AME900E000A900โ„ฆยฑ0.01%
1AME900E000D900โ„ฆยฑ0.1%
1AMK090K000A90kโ„ฆยฑ0.01%
1AMK090K000D90kโ„ฆยฑ0.1%
1AME090E000A90โ„ฆยฑ0.01%
1AME090E000D90โ„ฆยฑ0.1%
1AMK099K000D99kโ„ฆยฑ0.1%
1AMK009K000A9kโ„ฆยฑ0.01%
1AMK009K000D9kโ„ฆยฑ0.1%
5G10A (10R - 200K)Custom (10ฮฉ - 200kฮฉ)ยฑ0.01%
5G10D (10R - 200K)Custom (10ฮฉ - 200kฮฉ)ยฑ0.1%

Resources

Product Datasheet

Related Products

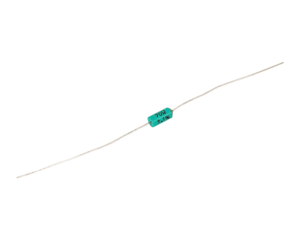

General Resistance 8G16 Econistor Series

View Product

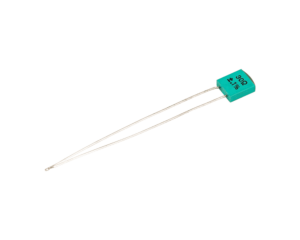

General Resistance GG102 Squaristor Series

View Product

General Resistance 5E10 Mini-Ohm Series

View Product

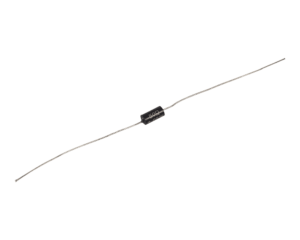

General Resistance 8E16 Econistor Series
