  • SRT Resistor Technology

Product Features

  • Non-magnetic, radial thick film resistor
  • Resistance range from 1MΩ to 100GΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +150°C

Applications

  • Medical
  • Exempt

Description

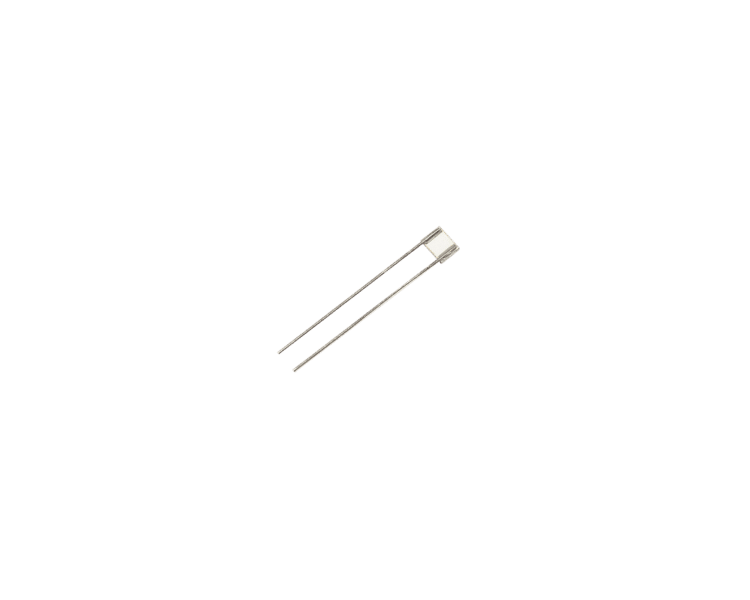

The GST 1210 high ohmic, non-magnetic, radial leaded resistor series from SRT Resistor Technology offers a wide resistance range from 1MΩ up to 100GΩ, power rating of 0.5W and voltage rating of 300V trimmed or 1000V untrimmed (tolerances ≥5%), all in a small 1210 package. By utilising SRT’s thick film resistor technology, these resistors are able to offer tolerances down to ±0.5% (between 1MΩ and 100MΩ) as well as a TCR of down to ±25 ppm/°C and a VCR as low as ±50 ppm/V (between 1MΩ and 100MΩ). The GST 1210 resistor series also features variable lead spacing and lacquer coating for climatic protection.

  • Radial leaded thick film chip resistor
  • Available in any resistance between 1MΩ and 100GΩ
  • 1210 package
  • Power rating of 0.5W at +70°C
  • Voltage rating of 300V trimmed or 1000V untrimmed (tolerances ≥5%)
  • Tolerances as low as ±0.5% over the resistance range of 1MΩ up to 100MΩ
  • TCR as low as ±25 ppm/°C over the resistance range of 1MΩ to 100MΩ
  • VCR as low as ±50 ppm/V over the resistance range of 1MΩ up to 100MΩ
  • Temperature range from -55°C up to +125°C
  • Non-magnetic
  • Variable lead spacing
  • Climatic protection by lacquer coating



Lower tolerance, TCR and VCR options and other dimensions are available upon request. Please contact us for further information and availability.



The below table gives full specifications for each resistor model available including the GST 1210 series:

SRT GST Specifications
1) TCR: in ppm/K; Temperature range +25°C…+125; TCR25/50 and values above 1G: Temp. range +25°C…80°C
2) VCR: typical values



Specifications

Weight 0.00000 kg
Dimensions 3.20 × 2.50 × 0.40 mm
Product Type

, ,

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

, , , , , ,

Power Rating

Resistance Value

, , , ,

Temperature Coefficient

, , , , ,

Termination / Connection Type

Package / Size

,

Temperature Range (°C)

RoHS Compliant Product – SRT with Exemption

This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:

  • No. 7(a) – 'Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)' used in leaded resistors
  • No. 7(c)-I – 'Electrical and electronic components containing lead in glass or ceramic…or in a glass or ceramic matrix compound' used in chip resistors and leaded thick film resistors

    SRT GST Technical Library

    We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





    DOCUMENTATION
    SRT GST high ohmic non magnetic radial leaded resistor datasheet







    SRT GST 1210 Series Resources
