SRT Microcéramique SMD High Voltage Class II Capacitors

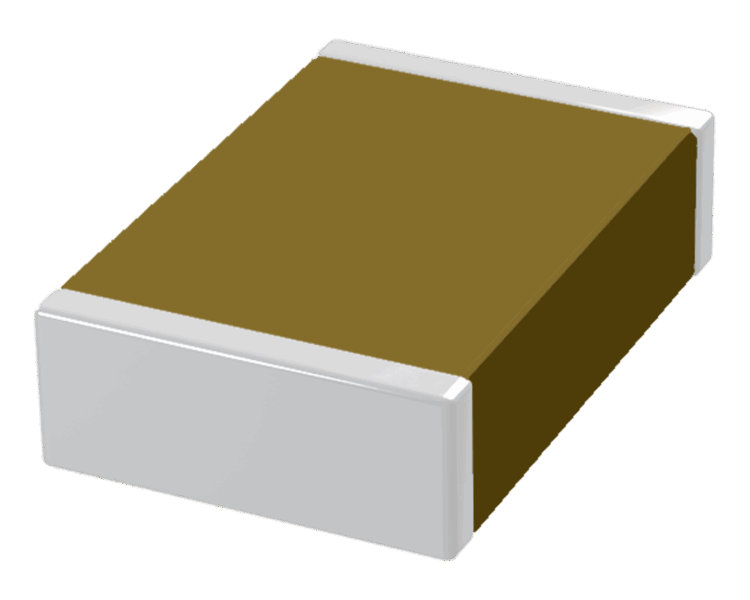

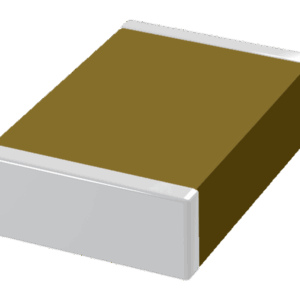

SRT Microcéramique’s SMD High Voltage Class II Capacitors are engineered for high-capacitance performance in compact surface-mount formats, optimized for high-voltage applications. Using Class II dielectric materials such as X7R, this series offers excellent capacitance density, making it ideal for filtering, decoupling, and energy storage in demanding power systems. These capacitors are available in voltage ratings from 1kV up to 15kV, with capacitance values ranging from 6.8pF to 10µF, depending on case size and dielectric type.

Designed to deliver high volumetric efficiency, these MLCCs offer dissipation factors of ≤2.5%, insulation resistance ≥10⁵ MΩ or 1000Ω-Farad, and support operating temperatures from -55°C to +125°C. While Class II ceramics exhibit greater capacitance change over temperature and voltage than Class I, they are well-suited for general-purpose high-voltage circuits where high capacitance in a small footprint is a priority.

These components are tested to CECC 32100 and AEC-Q200 qualification, ensuring suitability for automotive and other high-reliability environments.

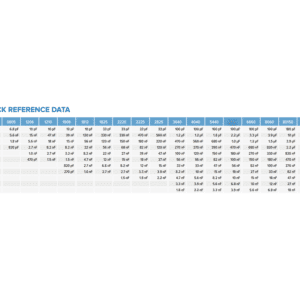

Key Features for SMD High Voltage Class II Capacitor:

• Capacitance range: 6.8pF to 10µF
• Voltage ratings: 1kV to 15kV
• Dielectric X7R
• Operating temperature: -55°C to +125°C
• Dissipation factor: ≤2.5%
• Insulation resistance: ≥10⁵ MΩ or 1000Ω-Farad
• Tolerances available: ±5%, ±10%, ±20%
• Available in SMD case sizes from 0805 to 15080
• Tested to CECC 32100 and AEC-Q200

Typical Applications for the SMD High Voltage Class II Capacitor:

• Industrial Equipment: EMI/RFI filtering and voltage regulation
• Medical Devices: High-voltage circuits in imaging and therapeutic systems
• Automotive Systems: High-voltage inverters, onboard chargers, and ECUs
• Aerospace & Defense: High-capacitance, space-constrained power modules

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
