MPT4A Miniature Pressure Transmitter MPT4A

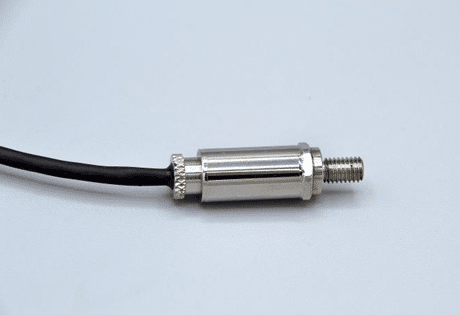

The ICS-NH MPT 4A is a miniature pressure transmitter designed for precise pressure measurement in space-constrained and demanding environments. Its extremely compact form factor, combined with robust stainless steel construction, makes it suitable for integration into systems where size, reliability and performance are critical.

The transmitter supports configurable pressure ranges from 0–30 psi up to 0–3,000 psi, providing flexibility across a wide range of applications. It delivers a ratiometric analogue output (0.5–4.5 V) at a 5 V supply, ensuring compatibility with standard electronic control systems and enabling accurate signal scaling. Built around a thin film stainless steel (17-4PH) pressure sensor with ASIC-based signal conditioning, the MPT 4A offers stable and repeatable performance. It features fast response times (0.1 ms), low hysteresis and excellent repeatability, making it suitable for both static and dynamic measurement applications. The integrated electronics provide reverse polarity protection, short-circuit protection, EMC/ESD robustness and high voltage protection up to 33 V, ensuring reliable operation in electrically demanding environments.

Key features of the  ICS-NH MPT4A Miniature Pressure Transmitter:

• Miniature stainless steel pressure transmitter
• Pressure range: 0–30 psi to 0–3,000 psi (customisable)
• Output: 0.5–4.5 V ratiometric
• Supply voltage: 4.5–5.5 V DC
• Supply current: <10 mA
• Fast response time: 0.1 ms
• Nonlinearity: <0.5% FS
• Hysteresis: <0.2% FS
• Repeatability: <0.1% FS
• Operating temperature: −55 °C to +127 °C (approx.)
• Overpressure capability: 2× nominal pressure
• Burst pressure: 5× nominal pressure
• Electrical connection options: cable, M4 connector, custom
• EMC/ESD robust with ASIC signal conditioning

Typical applications of the ICS-NH MPT4A Miniature Pressure Transmitter:

The MPT4A miniature pressure transmitter is suited for use in space-constrained and demanding environments, including pressure monitoring in pneumatic and hydraulic systems within industrial automation. It is also ideal for integration into automotive and mobility applications such as fuel, fluid and pressure control systems where compact size and fast response are critical. In addition, it is well suited to laboratory and test environments requiring high-speed, accurate pressure measurement and reliable signal output.

ICS-NH specialises in high-precision sensing technology, providing advanced pressure, flow and temperature sensors for demanding environments. With expertise in thin-film sensor technology and certified to EN9100 aerospace standards, ICS-NH develops solutions that deliver exceptional accuracy, reliability and long-term stability in critical applications such as aerospace, industrial systems and energy sectors. For more information visit https://www.ics-nh.de/en
