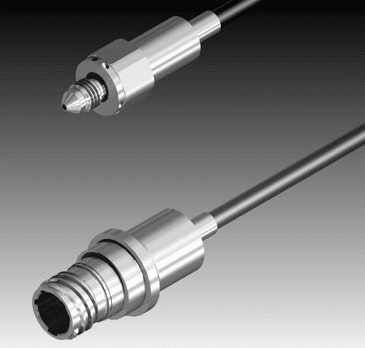

ICS-NH MPT6C Cryogenic Pressure Transmitter

The ICS-NH MPT6C Series is a cryogenic pressure transmitter designed for precise pressure measurement in extreme temperature environments. Engineered for applications such as liquid gas handling, propulsion systems and fuel storage, it combines miniature size with robust, fully welded stainless steel construction.

The sensor supports pressure ranges from 2 bar up to 2,000 bar, providing flexibility across both low- and high-pressure cryogenic systems. Its design separates the sensing head from the signal conditioning electronics via a shielded cable, allowing the sensing element to operate at temperatures as low as −200 °C, while maintaining stable electronics in a controlled environment.

Multiple output configurations are available, including ratiometric voltage (0.5–4.5 V), 0–10 V, 4–20 mA and digital interfaces, enabling integration into a wide range of control and monitoring systems. The transmitter also offers excellent measurement performance, with low hysteresis, high repeatability and strong long-term stability. Built using a thin film stainless steel sensing element (17-4PH) and fully welded construction, the MPT 6C Series eliminates internal seals, improving reliability and durability in harsh environments. It is also designed to withstand vibration and shock, meeting DO-160 Cat. H and R standards for aerospace and high-performance applications.

Key features of the  ICS-NH MPT6 Cryogenic Pressure Transmitter:

• Cryogenic miniature pressure transmitter
• Pressure range: 2 bar to 2,000 bar
• Output options:
  • 0.5–4.5 V ratiometric
  • 0–10 V fixed output
  • 4–20 mA current output
  • Digital interfaces (optional)
• Supply voltage: 5–32 V DC
• Operating temperature:
  • −200 °C to +260 °C (sensing head)
  • −40 °C to +125 °C (electronics)
• Accuracy: < ±0.5% FS
• Hysteresis: < ±0.2% FS
• Repeatability: < ±0.05% FS
• Overpressure capability: 2× nominal pressure
• Burst pressure: 5× nominal pressure
• Fully welded stainless steel construction
• Remote electronics via shielded cable
• Vibration tested to DO-160 Cat. H and R
• High EMC/ESD robustness and protection features

Typical applications of the ICS-NH MPT6C Cryogenic Pressure Transmitter:

The MPT6C series cryogenic pressure transmitter is suited for use in extreme temperature environments, including pressure measurement in cryogenic fuel systems, propulsion systems and liquid gas storage applications. It is ideal for vehicle-based installations and transport systems handling cryogenic fluids, as well as test stand monitoring and industrial process applications where accurate pressure measurement is required at very low temperatures.

ICS-NH specialises in high-precision sensing technology, providing advanced pressure, flow and temperature sensors for demanding environments. With expertise in thin-film sensor technology and certified to EN9100 aerospace standards, ICS-NH develops solutions that deliver exceptional accuracy, reliability and long-term stability in critical applications such as aerospace, industrial systems and energy sectors. For more information visit https://www.ics-nh.de/en
