SRT Microcéramique Radial Dipped X7R Capacitor Series (25V - 100V)

New SRT Microcéramique Radial Dipped X7R Capacitor Series (25V - 100V)
  • Dipped radial MLCC capacitors, 25V-100V
  • Two package sizes available – SRMC31 or SRMC41
  • Available in capacitance ratings between 100pF and 2.2nF
  • Dissipation factor under 0.025 at 1Vrms and 1kHz (or 1MHz)
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of tolerances: ±5%, ±10% or ±20%
  • Operating temperature between -55°C and +125°C

The X7R (Type 2) dipped radial condenser MLCC capacitor series is designed especially for severe environment applications, offering excellent shock and vibration resistance. The series features capacitance values between 100pF and 2.2µF across two package sizes (SRMC31 and SRMC41), option of voltage rating 25V, 50/63V or 100V, and tolerances ±5%, ±10% or ±20. The operating temperature of X7R radial capacitors is between -55°C and +125°C.

While this product series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

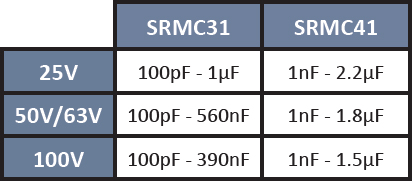

The below table gives the specifications overview for 25V-100V capacitor models available within the X7R dipped radial capacitor series:

SRT Microcéramique Radial Dipped Capacitor series (25V - 100V)
Specifications
Additional Features
  • Radial dipped X7R capacitor series
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
Capacitance 100pF - 2.2μF
Dielectric X7R
Operating Temperature -55°C to +125°C
Package/Size
  • SRMC31
  • SRMC41
TCR ± 15% with 0Vdc applied
Tolerance
  • ±5%
  • ±10%
  • ±20%
Type Radial
Voltage Reference
  • 25V
  • 50V / 63V
  • 100V

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microcéramique Radial Dipped X7R Capacitor (25V - 100V) Series Datasheet

Below is an example of the part number breakdown for the SRT Microcéramique Radial Dipped X7R Capacitor (25V- 100V) Series:

SRT Microcéramique Radial Dipped X7R Capacitor (25V- 100V) Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
