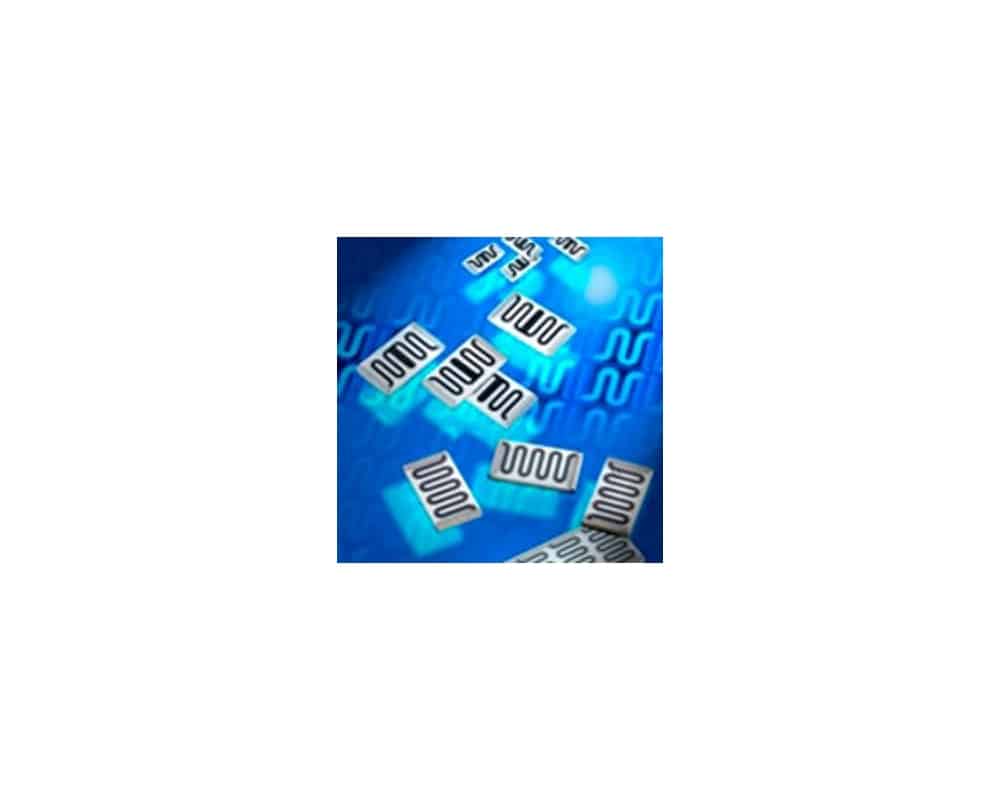

SRT CHM 2010 Series

  • SRT Resistor Technology

Product Features

  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±1000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +155°C

Applications

  • Exempt

The CHM 2010 high ohmic non-magnetic resistor series from SRT Resistor Technology offers a wide resistance range from 100kΩ up to 1TΩ, power rating of 0.5W and voltage rating of 1500V trimmed or 2000V untrimmed (tolerances ≥5%), all in a small 2010 surface mount package. By utilising SRT’s meander structured thick film resistor technology, these chip resistors are able to offer tolerances down to ±0.5% (between 100kΩ and 100MΩ) as well as a TCR of ±25 ppm/°C (between 100kΩ and 10GΩ) and a VCR as low as ±25 ppm/V (between 100kΩ and 100MΩ). The CHM 2010 resistor series contains no organics making them suitable for high vacuum applications and offer PtAg (platinum silver) terminations for conductive gluing and soldering.

  • Meander structured surface-mount thick film chip resistor
  • Available in any resistance between 100kΩ and 1TΩ
  • 2010 package
  • Power rating of 0.5W at +70°C
  • Voltage rating of 1500V trimmed or 2000V untrimmed (tolerances ≥5%)
  • Tolerances as low as ±0.5% over the resistance range of 100kΩ up to 100MΩ
  • TCR as low as ±25 ppm/°C over the resistance range of 100kΩ to 10GΩ
  • VCR as low as ±25 ppm/V over the resistance range of 100kΩ up to 100MΩ
  • Temperature range from -55°C up to +155°C
  • Non-magnetic
  • PtAg (platinum silver) terminations for conductive gluing and soldering
  • Low temperature and voltage dependency
  • No organics



The CHM high ohmic non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CHM-HT product pages for further information.

Lower tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.



The below table gives full specifications for each resistor model available including the CHM 2010 series:

SRT CHM Specifications
1) At continuous power dissipation the dimensions of solder-pads have to secure a sufficient heat removal
2) TCR: in ppm/K; +25°C…+125°C; TCR lower than standard TCR (highest value) or value >100G: +25°C…+85°C
3) VCR: typical values, all negative, not for all TCR values available



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

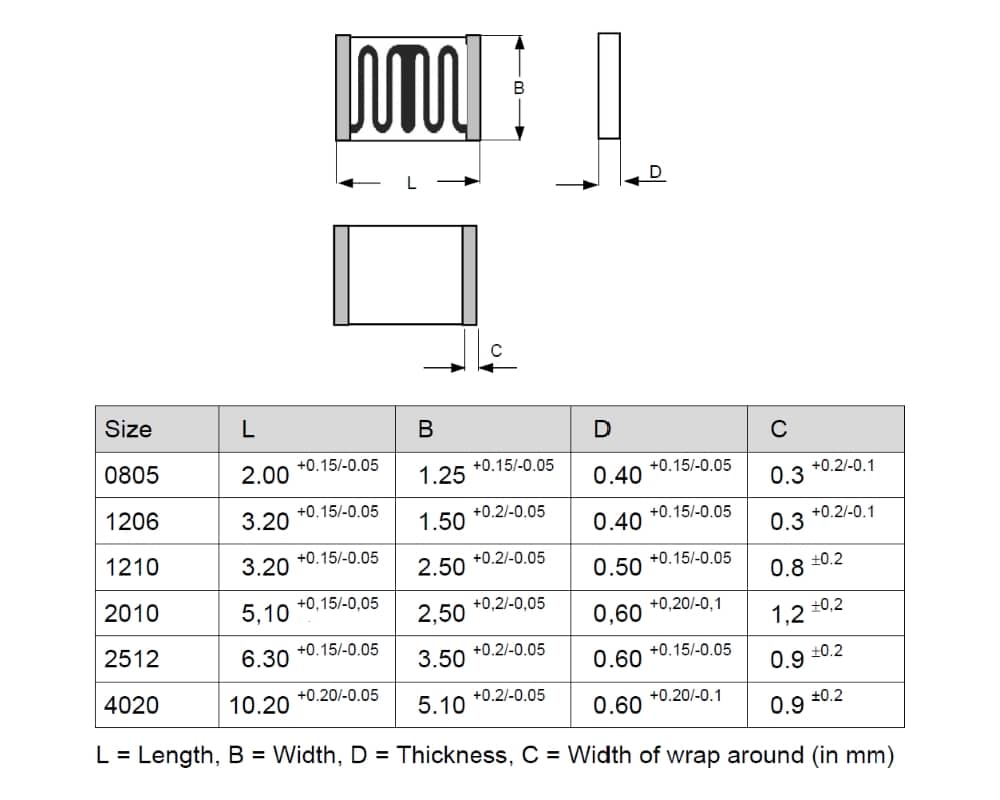

Dimensions 0.60 x 2.50 x 5.10mm
Maximum Resistance

Minimum Resistance

Package / Size

,

Power Rating

Product Type

, ,

Resistance Value

, , , ,

Series / Model

Temperature Coefficient

, , , ,

Temperature Range (°C)

Termination / Connection

Tolerance

, , , , , ,

RoHS Compliant Product – SRT with Exemption

This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:

  • No. 7(a) – 'Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)' used in leaded resistors
  • No. 7(c)-I – 'Electrical and electronic components containing lead in glass or ceramic…or in a glass or ceramic matrix compound' used in chip resistors and leaded thick film resistors

    SRT CHM Technical Library

    We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





    DOCUMENTATION
    SRT CHM high ohmic meander structured SMD chip resistor datasheet
