High-Temperature Pressure Sensors

  • ICS-NH

ICS-NH C10 Type

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.
View Product
Datasheet
Sample Request
ICS-NH C10PXXXXSXVXJX
  • ICS-NH

ICS-NH C8 Type

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65°C to +260°C.
View Product
Datasheet
Sample Request
ICS-NH C8
  • ICS-NH

ICS-NH DPH100 Series

SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65°C to +170°C operation.
View Product
Datasheet
Sample Request
ICS-NH DPH-100

ICS-NH MPT4A Miniature Pressure Transmitter

  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0–30 psi up to 0–3,000 psi
  • Ratiometric output 0.5–4.5 V @ 5 V supply
  • Supply voltage 4.5–5.5 V DC
  • Fast response time 0.1 ms
  • Stainless steel construction with multiple connection options
View Product
Datasheet
Sample Request
C8 Type-10
  • ICS-NH

ICS-NH MPT6 Series

Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, I²C and SPI outputs with DO-160 Cat. H/R vibration testing
View Product
Datasheet
Sample Request
ICS-NH MPT-6
  • ICS-NH

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from −200 °C to +260 °C
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R
View Product
Datasheet
Sample Request
ICS-NH MPT-6 Cryo
  • ICS-NH

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0–30 psig up to 0–8,700 psig
  • Ratiometric pressure output 0.5–4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range −40 °C to +150 °C (approx.)
  • Stainless steel housing with multiple connection options
View Product
Datasheet
Sample Request
ICS-NH PTM-10
  • Paine

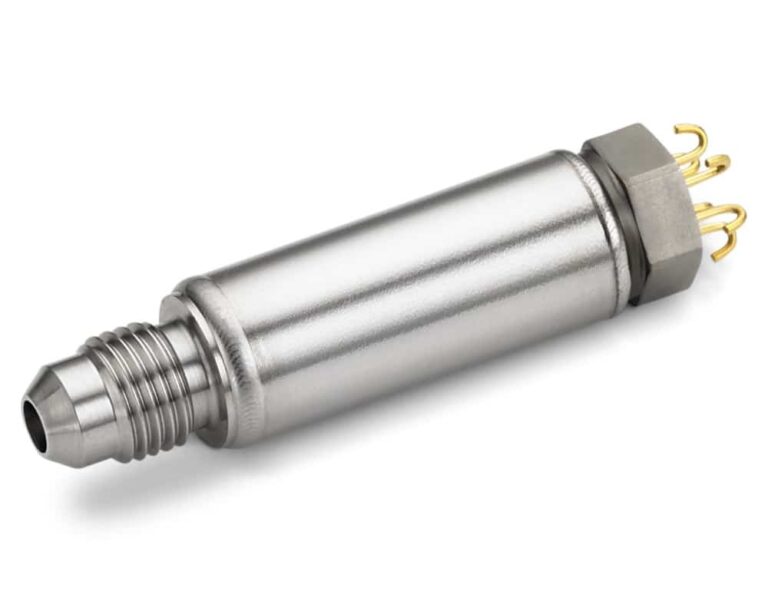

Emerson Paineâ„¢ 211-37-520 Series

  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Full scale (F.S.) sensitivity of 2.6mV/V ±0.2%
  • External case pressure up to 20,000 PSI
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
  • Non-linearity and hysteresis combined: ±0.15% F.S. max (BSLM)
View Product
Sample Request
Emerson Paineâ„¢ 211-37-520
  • Paine

Emerson Paineâ„¢ 211-50-070 Series

  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Offered in a small ½ inch diameter form factor
  • External case pressure up to 20,000 PSI
  • Custom designs available on request
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
View Product
Datasheet
Sample Request
Emerson Paine 211-50-070
  • Paine

Emerson Paineâ„¢ 212-40-020 Series

  • High pressure and temperature transducer
  • Compact and resilient design withstands harsh environments
  • Engineered with SOI technology for precise and continuous high temperature measurement
  • Performs in high pressure and temperature ranges (up to 30000 psia or 2069 bar) for a durable solution
  • Offered in a ½ inch diameter small form factor
  • Customisable transmitter options available for fit-for-use designs
View Product
Sample Request
Emerson Paine 212-40-020
  • Paine

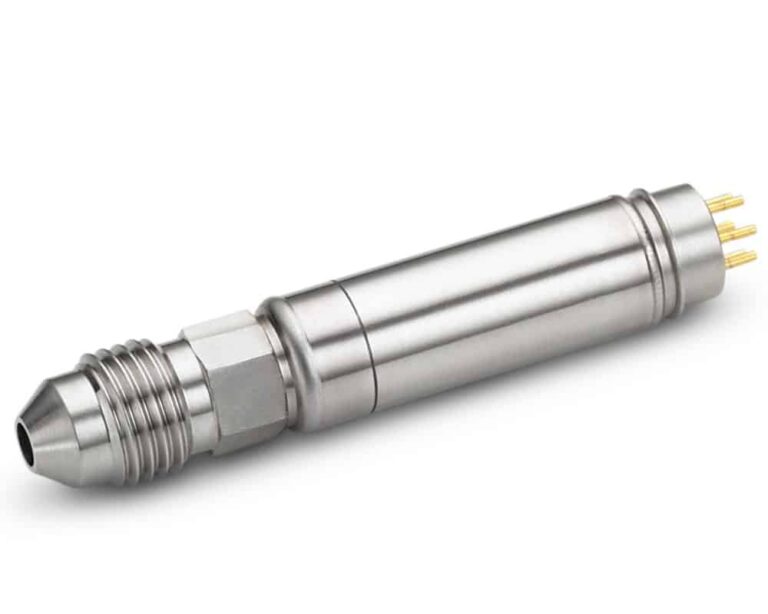

Emerson Paineâ„¢ 310-38-0050 Series

  • Ultra miniature high pressure transducer
  • Designed to withstand harsh environments  of high cycle, high pressure and high temperature applications
  • Drift less than 0.05% of full scale over 60 days
  • Output at zero pressure of 0.1 mv/v ±0.01 mv/v at 75°F or 23°C
  • Total Error Band is ±0.025 % of full scale sensitivity for exceptional accuracy
  • Customisable transducer options available for fit-for-use designs
View Product
Sample Request
Emerson Paine 310-38-0050
  • Paine

Emerson Paineâ„¢ 310-38-520 Series

  • High pressure and temperature transducer which is resistant to highly corrosive media
  • Provides real-time pressure and temperature measurement for enhanced control and monitoring
  • Engineered to measure pressures up to 35000 psi (2413 bar) for application adaptability
  • Class A Pt1000 RTD included
  • Small body diameter
  • Customisable transducer options available for fit-for-use designs
View Product
Sample Request
Emerson Paine 310-38-520
  • Paine

Emerson Paineâ„¢ 320-12-0010 Series

  • Precision pressure and temperature transmitter with a Temperature Output of °F or °C
  • Micro-processor based technology provides precise digital measurements for optimal accuracy and a temperature resolution of 12 Bits minimum
  • Designed with a simple and easy-to-use communication interface for enhanced efficiency
  • Engineered with long-term stability for consistent and reliable performance
  • Customisable transmitter options available for fit-for-use designs
View Product
Sample Request
Emerson Paine 320-12-0010

ICS-NH C10 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel… Read More
View Product
Datasheet

ICS-NH C8 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V… Read More
View Product
Datasheet

ICS-NH DPH100 Series

Differential pressure sensor
SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output,… Read More
View Product
Datasheet

ICS-NH MPT4A Miniature Pressure Transmitter

MPT4A Miniature Pressure Transmitter MPT4A
  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0–30… Read More
View Product
Datasheet

ICS-NH MPT6 Series

Actively compensated miniature pressure transmitter
Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC… Read More
View Product
Datasheet

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

ICS-NH MPT6C Cryogenic Pressure Transmitter
  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from <strong… Read More
View Product
Datasheet

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

ICS-NH PTM-10 Pressure Temperature Transmitter
  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from… Read More
View Product
Datasheet

Emerson Paineâ„¢ 211-37-520 Series

High Pressure and Temperature Transducer
  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Full scale… Read More
View Product
Datasheet

Emerson Paineâ„¢ 211-50-070 Series

High Pressure and Temperature Transducer
  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Offered in… Read More
View Product
Datasheet

Emerson Paineâ„¢ 212-40-020 Series

High Pressure and Temperature Transmitter
  • High pressure and temperature transducer
  • Compact and resilient design withstands harsh environments
  • Engineered with SOI technology for precise… Read More
View Product
Datasheet

Emerson Paineâ„¢ 310-38-0050 Series

High Pressure Transducer
  • Ultra miniature high pressure transducer
  • Designed to withstand harsh environments of high cycle, high pressure and high temperature… Read More
View Product
Datasheet

Emerson Paineâ„¢ 310-38-520 Series

High Pressure and Temperature Transducer
  • High pressure and temperature transducer which is resistant to highly corrosive media
  • Provides real-time pressure and temperature measurement… Read More
View Product
Datasheet

Emerson Paineâ„¢ 320-12-0010 Series

Precision Pressure and Temperature Transmitter
  • Precision pressure and temperature transmitter with a Temperature Output of °F or °C
  • Micro-processor based technology provides precise… Read More
View Product
Datasheet

Manufacturers

Looking for High-Temperature Pressure Sensors?

The below manufacturers are all of our authorised partners that produce High-Temperature Pressure Sensors or related products.
ICS-NH
Paine

High-Temperature Pressure Sensors

We offer a select range of High-Temperature Pressure Sensors designed for the harshest of environments. Some of the key features of these sensors are:

  • Pressure ranges available from 0 – 35,000 PSIA
  • Operating temperature -40°C to +260°C
  • High accuracy of up to 0.02% FS

The design can be customised to your requirement with various features and options. Speak to one of our technical advisors today to see how we can help find the bespoke solution for your requirements. Click here to get in touch.
