SRT Microcéramique Radial Dipped X7R Capacitors (1kV - 5kV)

SRT Microcéramique Radial Dipped X7R Capacitors (1kV - 5kV)
  • SRT Microcéramique

Product Features

  • Radial dipped X7R capacitor series
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The X7R (Type 2) high voltage dipped radial condenser MLCC capacitor series is designed especially for severe environment applications, offering excellent shock and vibration resistance and high voltage performance. The series features capacitance values between 1nF and 390nF across three package sizes (SRMC60, SRMC61 and SRMC62), option of high voltage ratings 1kV, 2kV, 3kV, 4kV or 5kV, and tolerances ±5%, ±10% or ±20. The operating temperature of X7R radial capacitors is between -55°C and +125°C.

  • High voltage dipped radial MLCC capacitors, 1kV – 5kV
  • Three package sizes available – SRMC60, SRMC61 or SRMC62
  • Available in capacitance ratings between 1nF and 390nF
  • Dissipation factor under 0.025
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of tolerances: ±5%, ±10% or ±20%
  • Temperature range between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

Typical applications for the SRT-MC X7R HV radial capacitor series include:

  • SMPS
  • Snubbers
  • Voltage multipliers
  • DC/AC converters

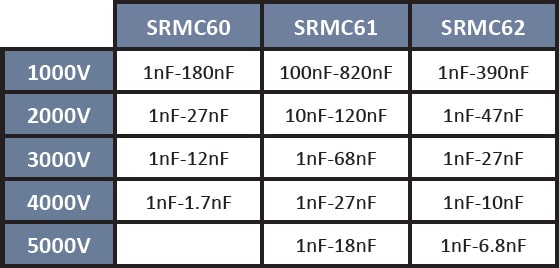

The below table gives the specifications overview for high voltage 1kV – 5kV capacitor models available within the X7R dipped radial capacitor series:

SRT Microcéramique Radial Dipped Capacitor series (1kV - 5kV)



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Tolerance

, ,

Temperature Range (°C)

Package / Size

Voltage Rating

, , , ,

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microcéramique Radial Dipped X7R Capacitor (1kV- 5kV) Series Ordering Info

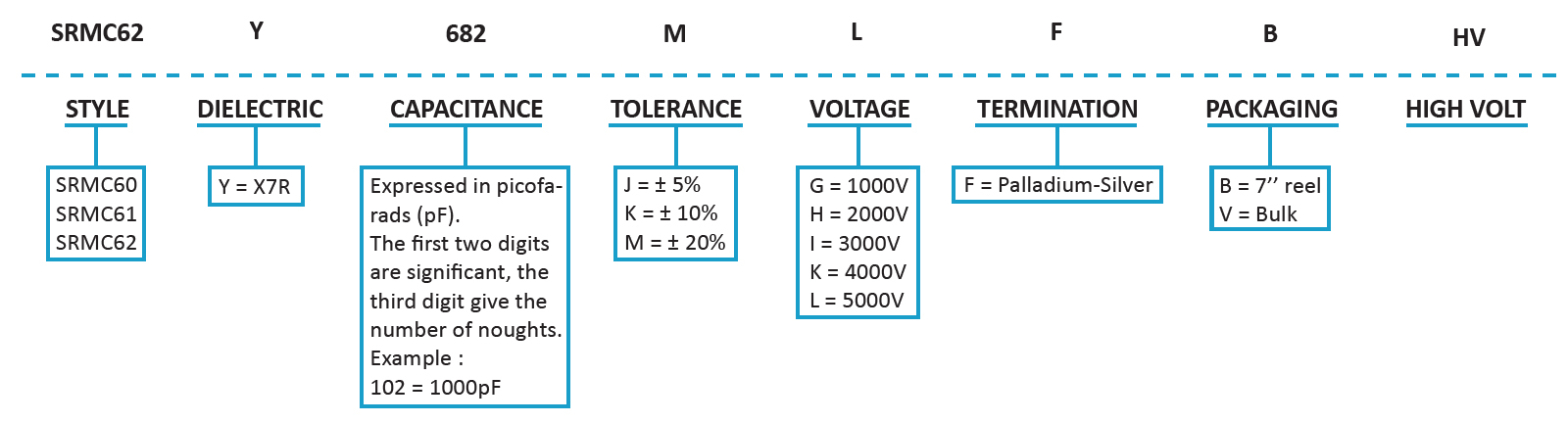

Below is an example of the part number breakdown for the SRT Microcéramique Radial Dipped X7R Capacitor (1kV- 5kV) Series:

SRT Microcéramique Radial Dipped X7R Capacitor (1kV- 5kV) Series

SRT Microcéramique Radial Dipped X7R Capacitor (1kV – 5kV) Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microcéramique Radial Dipped X7R Capacitor (1kV- 5kV) Series Datasheet

SRT Microcéramique Radial Dipped X7R Capacitors (1kV - 5kV)

SRT Microcéramique Radial Dipped X7R Capacitors (1kV - 5kV)
