SRT Microcéramique High Frequency Capacitor Series

NP0 Capacitor Series | High Voltage | SRT Microcéramique
  • SRT Microcéramique

Product Features

  • MLCC Capacitor for RF and Microwave communication
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz for values ≤ 1000pF and under 5.10-4 at 1Vrms and 1KHz for values > 1000pF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

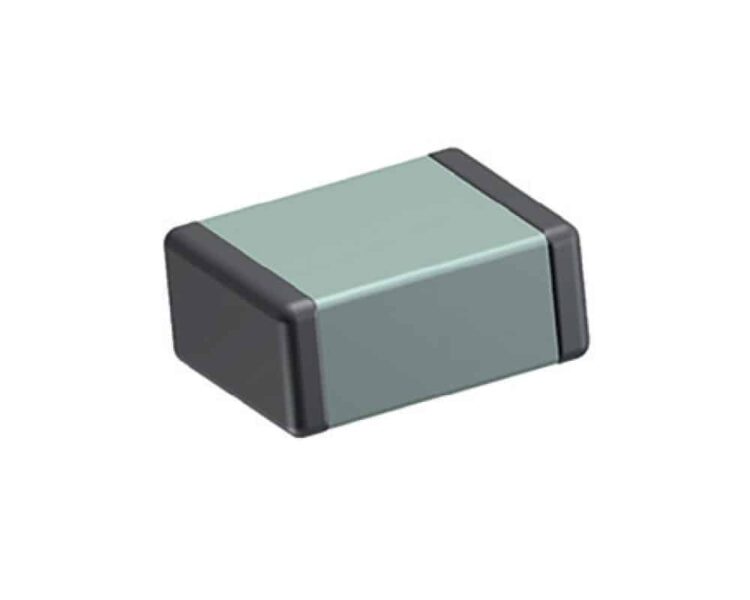

The high-frequency ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 0.47pF to1nF across a range of chip sizes from 0402 to 1210, selection of tolerances (±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%), voltage options (50V, 100V, 200V and 500V) and a range of terminations. As with all SRT-MC components, the SRT-MC high-frequency capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

  • High frequency ceramic chip MLCC capacitors
  • Available in capacitance ratings between 0.47pF and 1nF
  • Available in standard chip sizes from 0402 to 1210
  • Dissipation factor of ≤ 5.10-4 at 1Vrms and 1MHz (≤ 1000pF) or 1KHz (> 1000pF)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 50V, 100V, 200V and 500V
  • Selection of tolerances: ±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%
  • Temperature range between -55°C and +125°C

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a large number of standard options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

Typical applications for the SRT-MC high-frequency series of ceramic capacitors include:

  • RF and microwave communication (100MHz – 5GHz)
  • Satellite communication
  • Base station applications
  • Wireless devices
  • Radar applications



The below table gives the specifications overview for each capacitor model available within the high-frequency series:

SRT Microcéramique High Frequency Capacitor series



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Tolerance

, , , , , ,

Temperature Range (°C)

Package / Size

, , , , ,

Voltage Rating

, , ,

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique High Frequency Capacitor Series Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique High Frequency Capacitor Series :

SRT Microcéramique High Frequency Capacitor Series

SRT Microcéramique High Frequency Capacitor Series Technical Library
