SRT Microcéramique RF Power High Frequency Capacitor Series

  • SRT Microcéramique

Product Features

  • MLCC RF power, high frequency capacitors for RF instruments, lasers and similar applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz for values ≤ 1000pF and under 5.10-4 at 1Vrms and 1KHz for values > 1000pF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Rhopoint Energy
  • Scientific Instrumentation
  • Test and Measurement

Description

The RF power, high-frequency ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 1pF to 4.7nF across a range of chip sizes from 0505 to 4040, selection of tolerances (±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%), voltage options between 200V and 7.2kV and a range of terminations. As with all SRT-MC components, the SRT-MC RF, power high-frequency capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

  • RF Power, High frequency ceramic chip MLCC capacitors
  • Available in capacitance ratings between 1pF and 4.7nF
  • Available in standard chip sizes from 0505 to 4040
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz  (≤ 1000pF) or 1KHz (> 1000pF)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 200V, 250V, 300V, 500V, 630V, 1kV, 1.5kV, 2kV, 3kV, 4kV, 5kV and 7.2kV
  • Selection of tolerances: (±0.05pF, ±0.1pF, 0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%
  • Operating temperature between -55°C and +125°C

Termination options available include:

  • Nickel with 100% tin plating (matte finish)
  • Copper with 100% tin plating (matte finish)
  • Nickel banner with Tin (64%) and LCad (36%)

While this capacitor series offers a large number of standard options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

Typical applications for the SRT-MC RF Power, high-frequency series of ceramic capacitors include:

  • Lasers
  • CATV
  • RF Power amplifiers
  • Mixers
  • RF Instruments



The below table gives the specifications overview for each capacitor model available within the RF Power high-frequency series:

SRT Microcéramique High Frequency Capacitor series



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

MLCC RF power, high frequency capacitors for RF instruments, lasers and similar applicationsHighest quality and reliability, suitable for safety-critical industriesDissipation factor under 5.10-4 at

Tolerance

, , , , , , ,

Temperature Range (°C)

Package / Size

, , ,

Voltage Rating

, , , , , , , , , , ,

SRT Microceramique Capacitance Value note

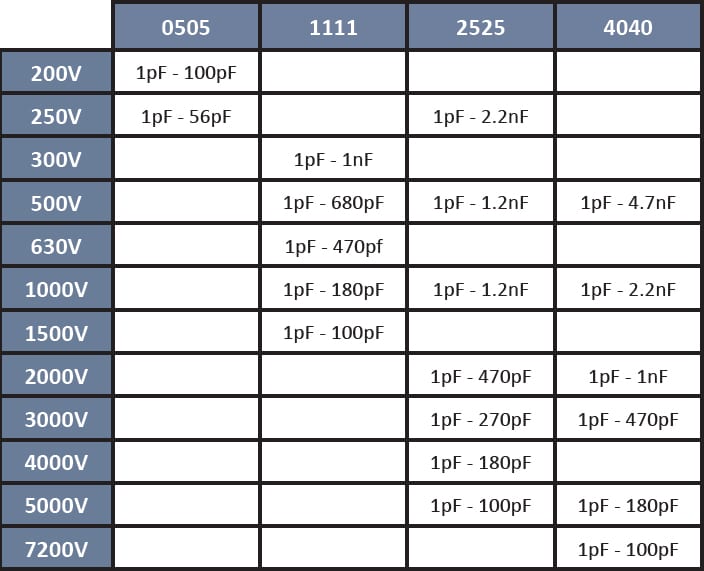

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique RF Power High Frequency Capacitor Series Ordering Info

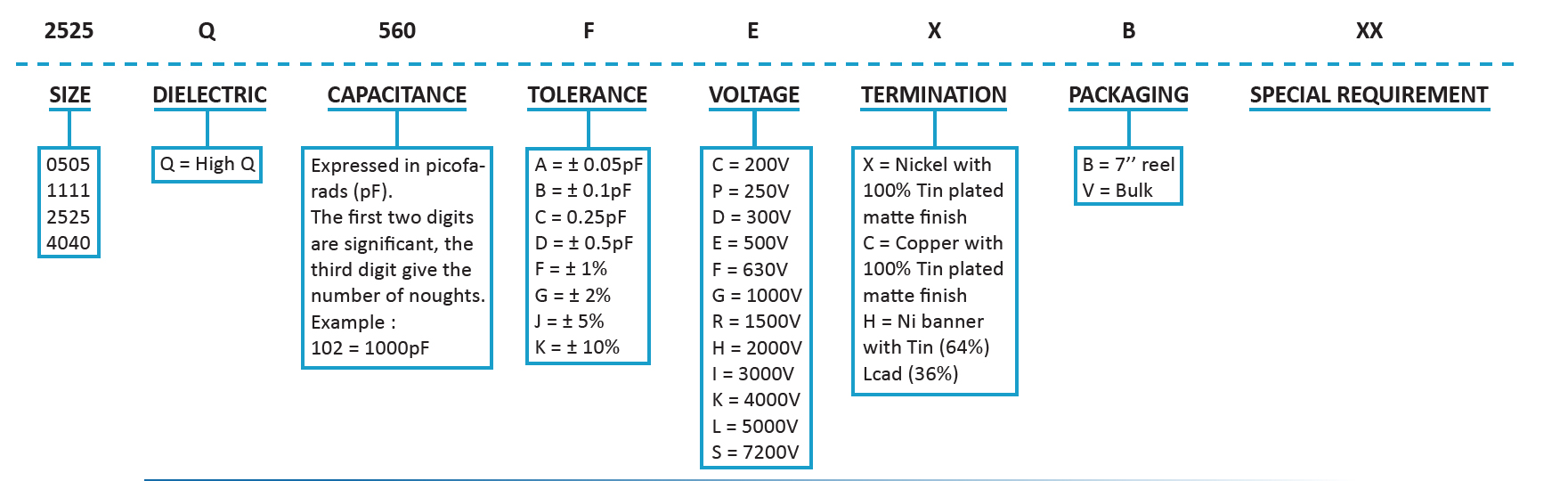

Below is an example of the part number breakdown for the SRT Microcéramique RF Power High Frequency Capacitor Series:

SRT Microcéramique RF Power High Frequency Capacitor Series
