High Speed digital isolators

The IL716E high speed digital isolator from NVE is a four channel CMOS device with typical data rate of 110Mbps. It features an isolation voltage of 2.5kV_rms and 600 V_rms working voltage per VDE V 0884-10. The IL716E isolators are available in an 16-pin SOIC package and are specified over a temperature range of −40°C to +100°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL716E series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL716 series, including IL716E is UL1577 recognised and certified to VDE V 0884-10.

• High speed digital isolator

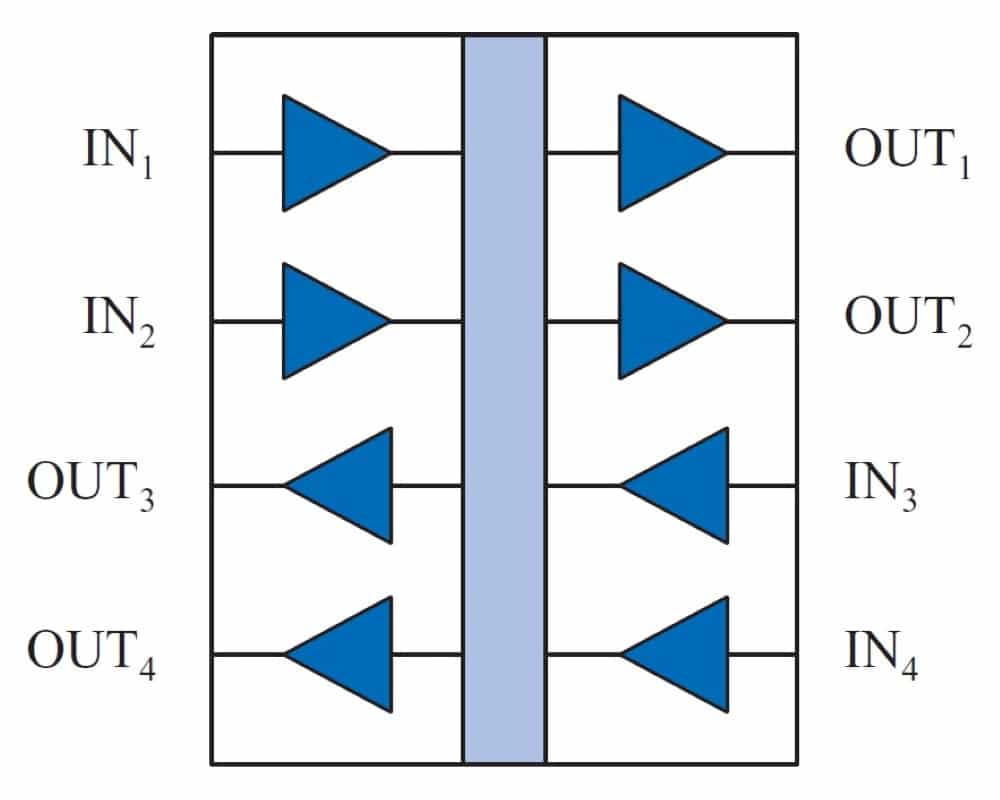

• Multidirectional four channel isolation (4 x transmit)
• High speed at 110 Mbps typical
• Isolation voltage of 2.5kV_rms
• Working voltage of 600 V_rms per VDE V 0884-10
• Temperature range of −40°C to +100°C
• 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
• No carrier or clock for low EMI emissions and susceptibility
• Typical quiescent current 0.0012A/channel
• Typical pulse width distortion of 2ns (at 5V)
• Pulse jitter 100ps
• Channel to channel skew 2ns
• Typical propagation delay of 10ns
• Barrier life of 44000 years
• Excellent magnetic immunity
• VDE V 0884-10 certified; UL 1577 recognised
• 16-pin, 0.3″ SOIC package

The NVE IL716E series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL716E series include:

• Digital fieldbus
• ADCs and DACs
• Ground loop elimination
• Multiplex data transmission
• Board-to-board communication
• Logic level shifting
• Equipment covered under IEC 61010-1 Edition 3
• 5 kV_RMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL716 high speed digital isolator series including the IL716E:
