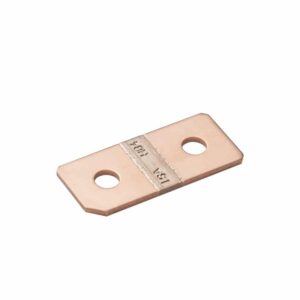

Isabellenhütte KVM Series

Isabellenhütte KVM Series
Isabellenhütte KVM Series
Isabellenhütte KVM Series
  • Isabellenhütte

Product Features

  • Current sensing resistor
  • Resistance values of 100µΩ or 50µΩ
  • Tolerance of ±5%
  • TCR from <50 ppm/°C
  • Power rating of 10W (at 70°C)
  • Temperature range from -55°C to +170°C
  • Automotive

Applications

  • Automotive
  • Compliant

Description

The KVM current sensing precision shunt resistor series from Isabellenhütte are designed for battery management systems and battery chargers, with a resistance value of either 0.0001Ω or 0.00005Ω. The KVM series from Isabellenhütte has heavy copper connections with a continuous current load up to 250A and is AEC-Q200 qualified.

  • Current sensing precision shunt resistor
  • 2-terminal heavy copper connections
  • Resistance values of 100µΩ or 50µΩ*
  • Tolerance of ±5%
  • TCR of <50 ppm/°C or <100 ppm/°C (+20°C to +60°C)
  • Power rating of 7W or 10W (at 70°C)
  • Continuous current load of up to 250A
  • Temperature range from -55°C to +170°C
  • Excellent long term stability
  • Inductance value of <5nH
  • Stability of <0.5% (TK=120°C) (at rated power, deviation after 2000h)
  • AEC-Q200 qualification



Typical applications for the KVM current sensing precision shunt resistor series include:

  • Current sensor for power hybrid applications
  • Battery management systems
  • Battery charging

Isabellenhütte KVM Series Specification Table

AttributesValue
Product Ordering CodeKVM-M-R0001KVM-Z-R00005*
Resistance Value 0.1mΩ0.05mΩ
Tolerance±5%±5%
TCR<±50 ppm/°C (20-60°C)<±100 ppm/°C (20-60°C)
Temperature range-55°C to +170°C-55°C to +170°C
Power rating (P70°C)7W10W
Power rating (P120°C)5W7W
Internal heat resistance<4°C/W (Rth)<3°C/W (Rth)
Inductance<3nH<3nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 120°C)
Tᴋ = Terminal Temperature
<0.5% (Tᴋ = 120°C)
Tᴋ = Terminal Temperature
Material TypeMANGANIN®ZERANIN®30

* KVM-Z-R00005 under development, B-samples available

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

Dimensions 35.00 × 15.50 × 1.42 mm
Series / Model

Product Type

Package / Size

Material Type

,

Resistance Value

,

Minimum Resistance

Maximum Resistance

Tolerance

Temperature Coefficient

,

Current Rating

Power Rating

, ,

Temperature Range (°C)

Isabellenhütte KVM Series Ordering Info

Below is the model number configuration for the KVM series from Isabellenhütte.

Ordering example: KVM-M-R0001-5.0
KVMXXXXXXX.X

Series / Model (KVM)

KVM
KVM

Material Type (X)

M
MANGANIN®
Z
ZERANIN®

Resistance Value (XXXXX)

Resistance value, in ohms, is expressed by a series of 5 or 6 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

5.0
±5%

Isabellenhütte KVM Series Available Resistance Values and Tolerances


Resistance Value Part Number Value 5% Tolerance
0.00005Ω R00005
0.0001Ω R0001

*KVM-Z-R00005 under development, B-samples available
