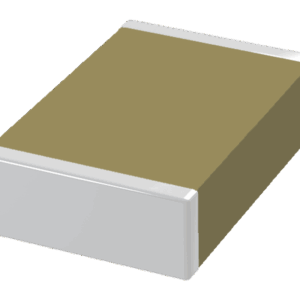

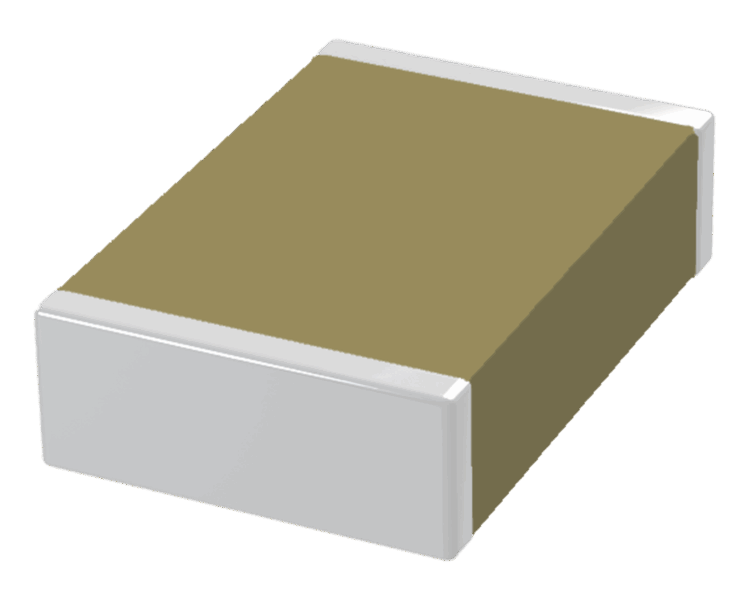

SRT Microcéramique SMD High Voltage N2T Capacitors

SRT Microcéramique’s SMD High Voltage N2T Capacitors are designed for high-reliability applications requiring excellent thermal stability, low loss, and high insulation resistance in compact SMD formats. Utilizing a Class I N2T dielectric, these capacitors offer a negative temperature coefficient (NTC) of capacitance, providing ultra-stable electrical behaviour across a wide range of frequencies and temperatures.

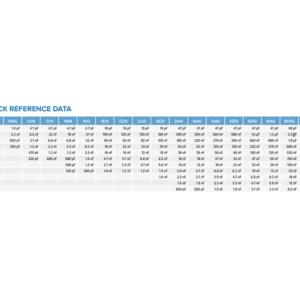

Capacitance values range from 1pF to 3.3µF , with voltage ratings from 1kV up to 15kV, making them ideal for RF, timing, and precision analogue applications in high-voltage environments. These capacitors deliver consistent and predictable performance, even in harsh thermal and electrical conditions.

The capacitors are available in standard SMD case sizes from 0805 up to 80150, tested to CECC 32100 specifications. Their high insulation resistance (25°C/Un 105 MOhm or 1000 Ohm-Farad) ensures long-term reliability, and they are capable of operating in temperatures from -55°C to +125°C.

Key Features for SMD High Voltage N2T Capacitor:

• Capacitance range: 1pF to 3.3µF
• Voltage ratings: 1kV to 15kV
• Dielectric: Class I N2T – Negative Temperature Coefficient
• Temperature coefficient: -2200 ± 350 ppm/C° with 0Vdc applied
• Operating temperature range: −55°C to +125°C
• Low dissipation factor:
  • ≤ 1.10⁻3 at 1Vrms and 1MHz for values ≤ 100pF
  • ≤ 1.10⁻3 at 1Vrms and 1KHz for values > 100pF
• High insulation resistance: 1
  • 25°C/Un 10⁵ MOhm or 1000 Ohm-Farad
  • 125°C/Un 10⁴MOhm or 100 Ohm-Farad w
• SMD case sizes: 0805 up to 80150
• Tested to: CECC 32100 standards

* Custom voltage, package size, capacitance value on request.

Typical Applications for the SMD High Voltage N2T Capacitor:

• Timing Circuits: Precision oscillators and clock circuits requiring thermal consistency
• High-Voltage Analog Electronics: Including voltage dividers and measurement equipment
• Aerospace & Defense: Mission-critical systems demanding high reliability
• Medical Devices: High-precision instrumentation requiring stable capacitance over temperature
• Automotive Electronics: High-voltage modules with tight capacitance tolerance needs

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
