Networks & Voltage Dividers

VPG SC Series

Ultra precision resistor network
Resistance range form 30Ω to 120kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±5 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

Datasheet

VPG SE Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 1W (at +70°C)
Temperature range from -25°C to +125°C

Datasheet

VPG SF Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 0.5W (at +70°C)
Temperature range from -25°C to +125°C

Datasheet

VPG SLD Series

Ultra precision, 2 element resistor network
Resistance range 50Ω and 30kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -25°C to +125°C

Datasheet

VPG SM Series

Ultra precision, 2 element resistor network
Resistance range 50Ω and 30kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Power rating of 0.3W (at +125°C)
Temperature range from -65°C to +150°C

Datasheet

VPG SS Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 0.5W (at +70°C)
Temperature range from -25°C to +125°C

Datasheet

Caddock 1776 Series

Precision voltage dividers
Resistance ranges from 900Ω to 10MΩ
Absolute Tolerance of +0 -0.5%, ±0.1% or ±0.25%
VCR from ±0.02 ppm/V to ±0.5 ppm/V
Voltage rating of 750V up to 1.2kV
Temperature range 1 from -40°C to +85°C Temperature range 2 from 0°C to +70°C

Datasheet

Caddock 1787 Series

Current sensing resistor network
Resistance ranges from 0.9Ω to 1kΩ
Absolute Tolerance of ±0.05%, ±0.1% or ±0.25%
TCR from ±50 ppm/°C to ±100 ppm/°C
Power rating of 1W depending on the model
Temperature range from -55°C to +85°C

Datasheet

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Datasheet

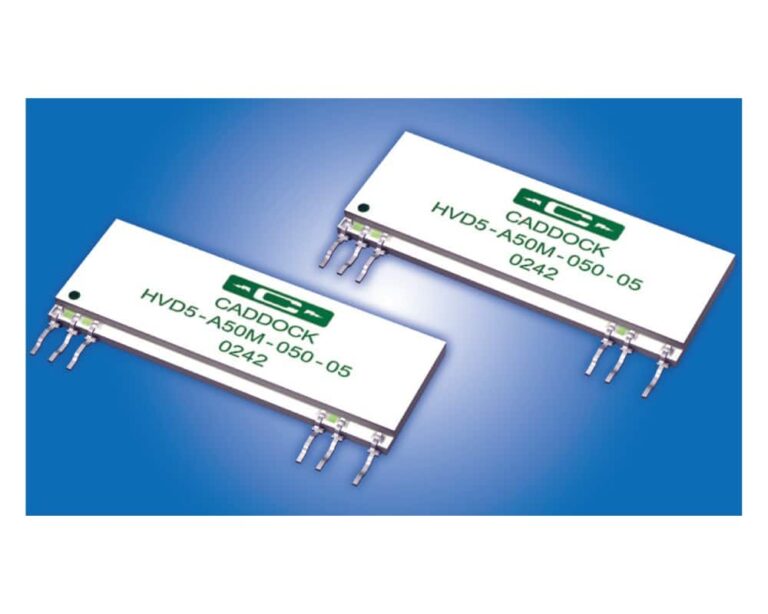

Caddock HVD Series

Ultra-precision through-hole high voltage divider
6 standard models of the HVD series
Monolithic voltage dividers built with ceramic sandwich construction
Ratios (R_T:R₂) of 100:1 or 1,000:1
Ideal for high performance voltage division applications in medical equipment, laboratory equipment and analytical instruments
Over voltage of 1.5 times rated voltage for 5s

Datasheet

Caddock T1794 Series

Custom through-hole low TCR precision SIP resistor networks
Ratio-of-ratios as required down to as close to 0.025%
Unique thin-profile, single-in-line edge-mounted package
Utilises Caddock’s Tetrinox® resistance technology

Datasheet

Caddock T912 Series

Through-hole precision resistor network
2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁ or R₂
Custom options and configurations are available upon request

Datasheet

Caddock T914 Series

Through-hole precision resistor network
4 resistor elements, with a ratio of 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁, R₂, R₃ or R₄
Custom options and configurations are available upon request

Datasheet

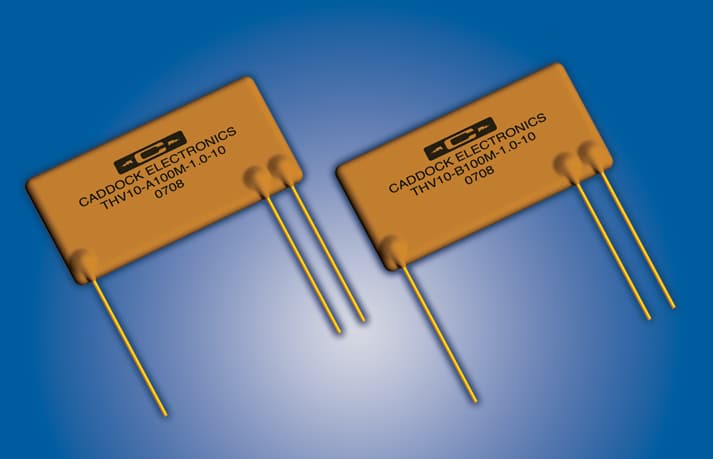

Caddock THV10 Series

Precision through-hole high voltage divider network
Total resistance of 100MΩ
Ratios of 100:1 or 1,000:1
Tighter ratio TCR and ratio tolerances than with standard high voltage divider products
Utilises Caddock’s Tetrinox® resistance films

Datasheet

Caddock THV15 Series

Precision through-hole high voltage divider network
Total resistance of 150MΩ
Ratios of 100:1 or 1,000:1
Tighter ratio TCR and ratio tolerances than with standard high voltage divider products
Utilises Caddock’s Tetrinox® resistance films

Datasheet

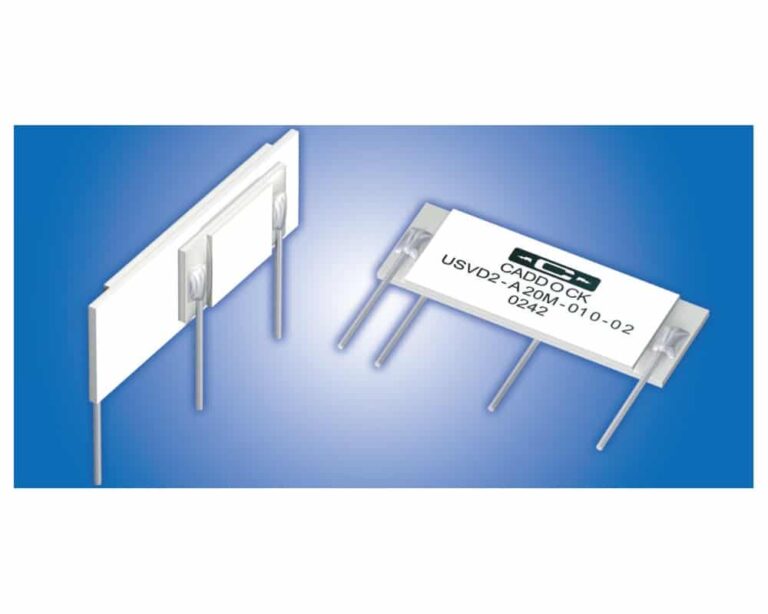

Caddock USVD Series

Ultra-precision through-hole high voltage divider
12 standard models of the USVD series
Formed by bonding together two selected USF ultra-precision resistors
Ratios (RT:R2) of 100:1 or 1,000:1
Over voltage of 1.5 times rated voltage for 5s

Datasheet

VPG SC Series

Ultra precision resistor network
Resistance range form 30Ω to 120kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±5 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

VPG SE Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 1W (at +70°C)
Temperature range from -25°C to +125°C

VPG SF Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 0.5W (at +70°C)
Temperature range from -25°C to +125°C

VPG SLD Series

Ultra precision, 2 element resistor network
Resistance range 50Ω and 30kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -25°C to +125°C

VPG SM Series

Ultra precision, 2 element resistor network
Resistance range 50Ω and 30kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Power rating of 0.3W (at +125°C)
Temperature range from -65°C to +150°C

VPG SS Series

Conformally coated precision resistor network
Resistance range 30Ω and 120kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±5 ppm/°C
Power rating of 0.5W (at +70°C)
Temperature range from -25°C to +125°C

Caddock 1776 Series

Precision voltage dividers
Resistance ranges from 900Ω to 10MΩ
Absolute Tolerance of +0 -0.5%, ±0.1% or ±0.25%
VCR from ±0.02 ppm/V to ±0.5 ppm/V
Voltage rating of 750V up to 1.2kV
Temperature range 1 from -40°C to +85°C Temperature range 2 from 0°C to +70°C

Caddock 1787 Series

Current sensing resistor network
Resistance ranges from 0.9Ω to 1kΩ
Absolute Tolerance of ±0.05%, ±0.1% or ±0.25%
TCR from ±50 ppm/°C to ±100 ppm/°C
Power rating of 1W depending on the model
Temperature range from -55°C to +85°C

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Caddock HVD Series

Ultra-precision through-hole high voltage divider
6 standard models of the HVD series
Monolithic voltage dividers built with ceramic sandwich construction
Ratios (R_T:R₂) of 100:1 or 1,000:1
Ideal for high performance voltage division applications in medical equipment, laboratory equipment and analytical instruments
Over voltage of 1.5 times rated voltage for 5s

Caddock T1794 Series

Custom through-hole low TCR precision SIP resistor networks
Ratio-of-ratios as required down to as close to 0.025%
Unique thin-profile, single-in-line edge-mounted package
Utilises Caddock’s Tetrinox® resistance technology

Caddock T912 Series

Through-hole precision resistor network
2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁ or R₂
Custom options and configurations are available upon request

Caddock T914 Series

Through-hole precision resistor network
4 resistor elements, with a ratio of 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁, R₂, R₃ or R₄
Custom options and configurations are available upon request

Caddock THV10 Series

Precision through-hole high voltage divider network
Total resistance of 100MΩ
Ratios of 100:1 or 1,000:1
Tighter ratio TCR and ratio tolerances than with standard high voltage divider products
Utilises Caddock’s Tetrinox® resistance films

Caddock THV15 Series

Precision through-hole high voltage divider network
Total resistance of 150MΩ
Ratios of 100:1 or 1,000:1
Tighter ratio TCR and ratio tolerances than with standard high voltage divider products
Utilises Caddock’s Tetrinox® resistance films

Caddock USVD Series

Ultra-precision through-hole high voltage divider
12 standard models of the USVD series
Formed by bonding together two selected USF ultra-precision resistors
Ratios (RT:R2) of 100:1 or 1,000:1
Over voltage of 1.5 times rated voltage for 5s

Manufacturers

Looking for Networks & Voltage Dividers?

The below manufacturers are all of our authorised partners that produce Networks & Voltage Dividers or related products.

Networks & Voltage Dividers

Here at Rhopoint Components, we can offer a range of through-hole (THT) and surface-mount (SMD) resistor networks and voltage dividers by industry-leading manufacturers Alpha Electronics, Caddock, Ohmcraft and Susumu. With flexible circuit design options, range of tolerances and ratings, we can help find the right resistor network for your project. Our range includes high voltage dividers and high precision, current sensing, high and low ohmic resistor networks, including fully customisable solutions.
