Precision High Voltage Resistors

Caddock MG Standard Range

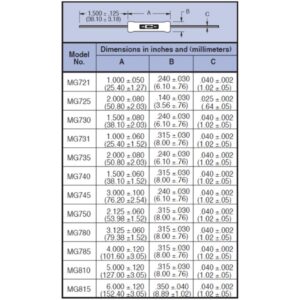

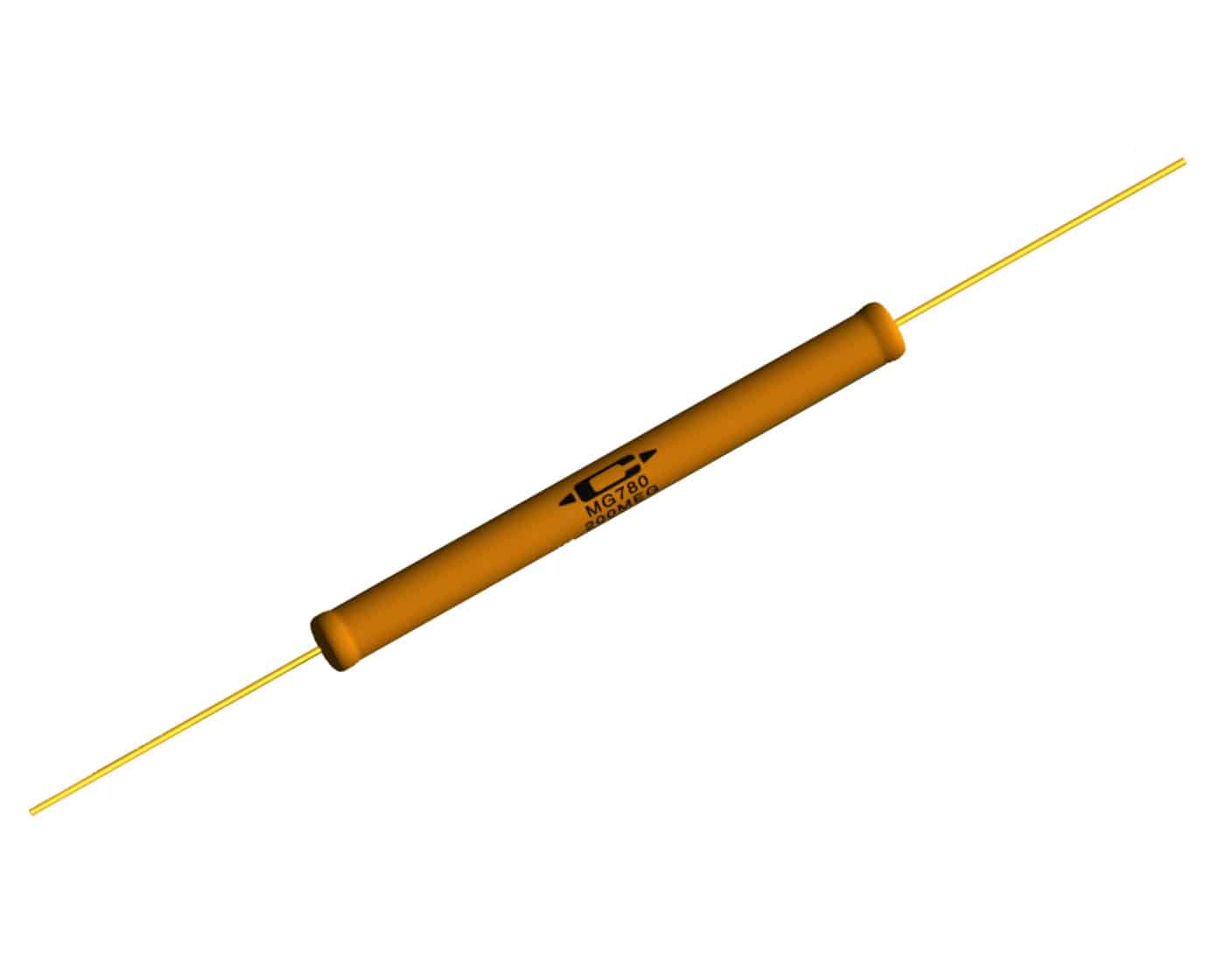

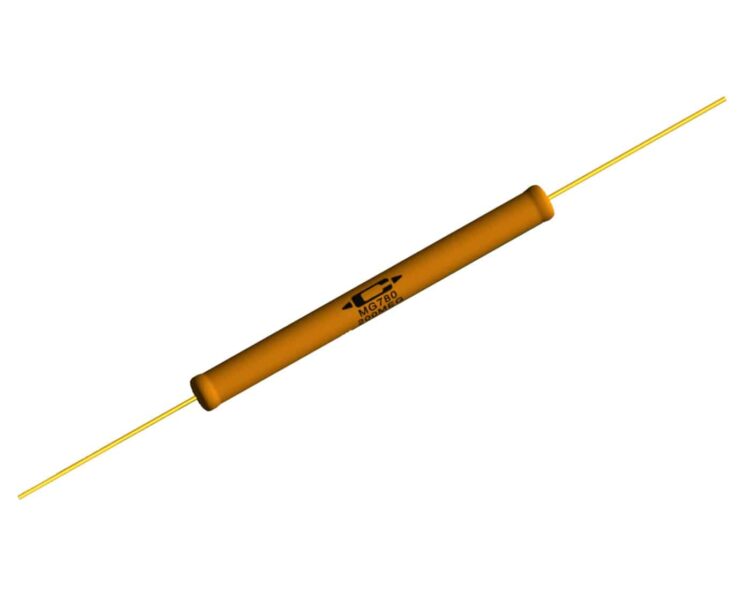

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 600V up to 30kV *
Resistance values from 200Ω up to 2GΩ *
Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
TCR as tight as ±80 ppm/°C from -15°C to +105°C
Maximum power rating from 0.5W up to 15W *
Operating Temperature Range of -55°C to +225°C

_{* Dependant on selected resistor model}

Datasheet

The MG precision high-voltage axial standard resistor range from Caddock offers a resistance range from 200Ω up to 2GΩ and a voltage rating up to 30kV with the possibility of 1.5 times maximum continuous operating voltage for 5 seconds. The power rating for these resistors is up to 15W with the possibility of 5 times rated power for 5 seconds (not exceeding maximum voltage). The MG series offers tolerances from ±1% down to ±0.1% and has demonstrated stability of 0.01% per 1,000 hours in extended load life testing. Caddock’s Micronox^® resistance films are the source of their outstanding combination of performance features.

Cylindrical high voltage axial leaded resistor
Resistance values from 200Ω up to 2GΩ *
Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
TCR as tight as ±80 ppm/°C from -15°C to +105°C, referenced to +25°C
Operating Temperature Range of -55°C to +225°C
Maximum operating voltage from 600V up to 30kV *
Maximum power rating from 0.5W up to 15W *
Excellent long-term stability of 0.01% per 1,000 hours

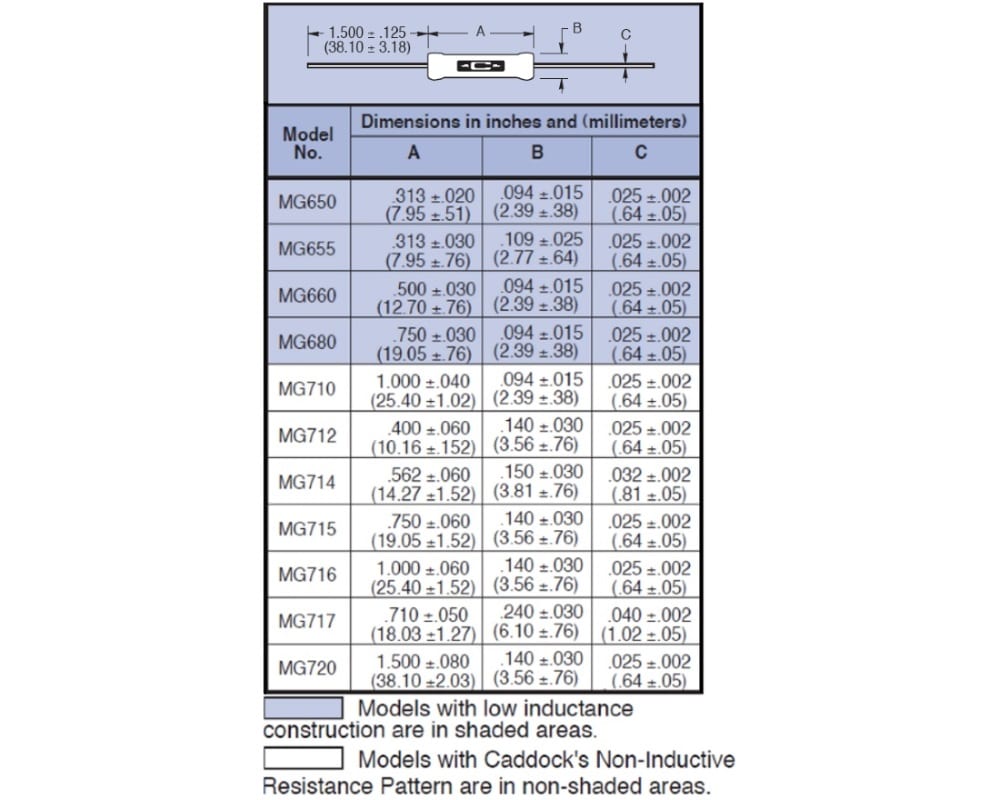

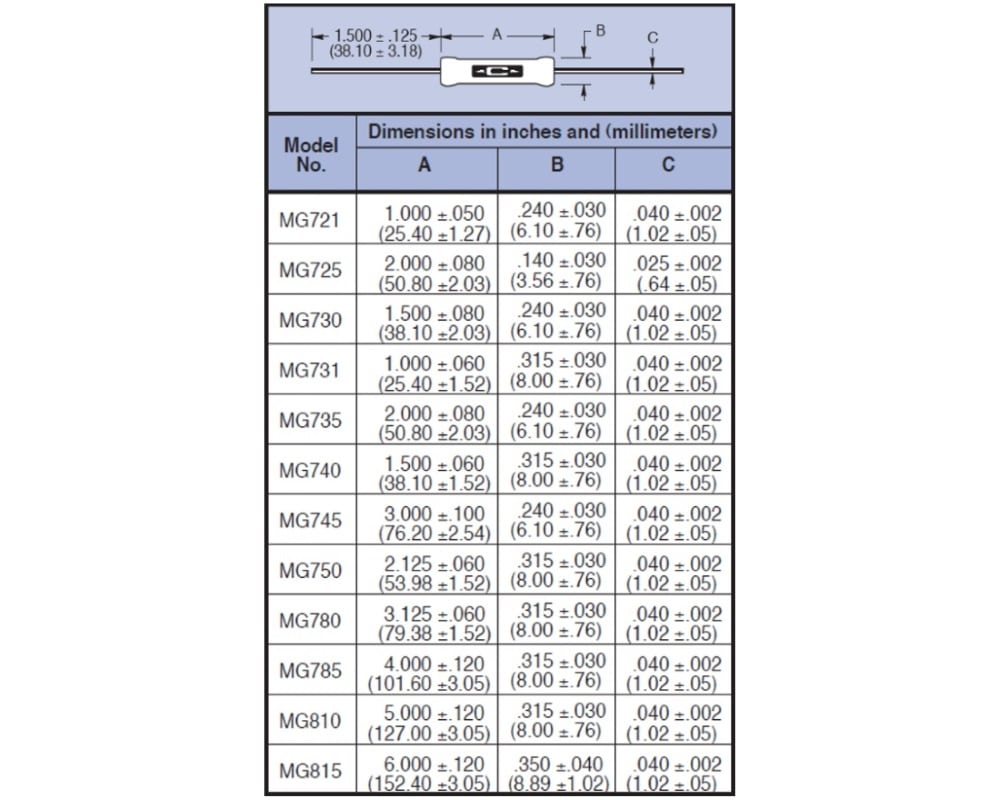

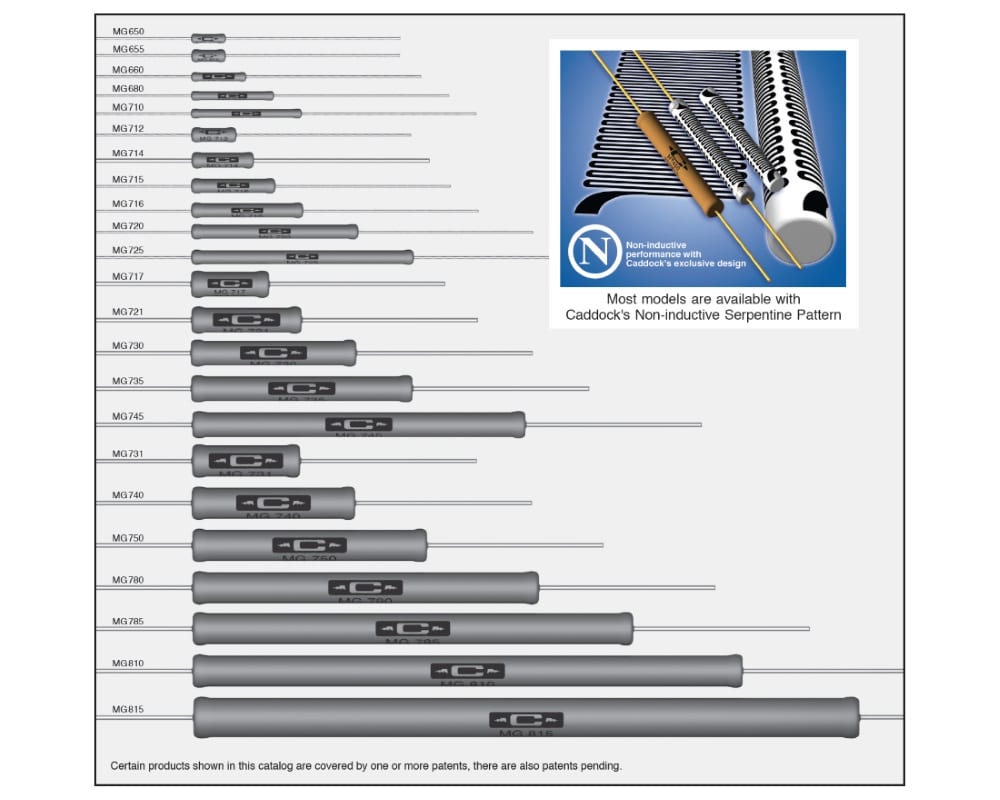

All models are manufactured with Caddock’s non-inductive design

_{* Dependant on selected resistor model}

Typical applications for the MG precision high-voltage axial standard resistor range include:

TWT HV power supplies
Electron microscopes
E-beam equipment
Electrical distribution HV monitor dividers
X-ray systems
Geophysical instruments
Medical electronics
HV & Compact instrument probes

Additional options to the standard resistor ranges include extended resistance values and the -15 option for increased maximum operating voltages.

Caddock MG Standard Range Specification Table

Model No.	Wattage	Max voltage	Coating dielectric strength	Resistance range	Tolerance	TCR
MG650	0.5W	600V	750AC_rms	200Ω to 5MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG655	0.5W	600V	750AC_rms	200Ω to 8MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG660	0.6W	1kV	750AC_rms	400Ω to 10MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG680	0.8W	2kV	750AC_rms	600Ω to 20MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG710	1W	4kV	750AC_rms	800Ω to 50MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG712	0.6W	1kV	750AC_rms	800Ω to 20MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG714	1W	1kV	750AC_rms	200Ω to 20MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG715	1W	2kV	750AC_rms	400Ω to 50MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG716	1.5W	4kV	750AC_rms	600Ω to 75MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG717	1.5W	2kV	750AC_rms	600Ω to 75MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG720	2W	6kV	750AC_rms	1kΩ to 150MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG721	2W	4kV	750AC_rms	200Ω to 100MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG725	2.5W	10kV	750AC_rms	1.5kΩ to 200MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG730	3W	6kV	1000AC_rms	500Ω to 250MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG731	2.6W	4kV	1000AC_rms	200Ω to 150MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG735	3.6W	10kV	1000AC_rms	750Ω to 300MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG740	3.6W	6kV	1000AC_rms	300Ω to 300MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG745	5W	15kV	1000AC_rms	1kΩ to 500MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG750	5W	10kV	1000AC_rms	400Ω to 500MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG780	7.5W	15kV	1000AC_rms	600Ω to 750MΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG785	8W	20kV	1000AC_rms	800Ω to 1GΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG810	10W	25kV	1000AC_rms	1kΩ to 1.25GΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)
MG815	15W	30kV	1000AC_rms	1kΩ to 2GΩ	±0.1% / ±0.25% / ±0.5% / ±1%	±80 ppm/°C from -15°C to +105°C (Referenced to +25°C)

Caddock Electronics, Inc. manufactures High Performance, High Stability Film Resistors designed for precision applications. Caddock uses unique resistance film technologies and process technologies to create solutions for performance demanding applications. Their product line consists of over 250 models, spanning a multitude of series, all of which are manufactured at their facilities in Roseburg, Oregon, USA. Please visit www.caddock.com for more information.

Specifications

Maximum Resistance	2GΩ
Minimum Resistance	200Ω
Power Rating	0.5W, 0.6W, 0.8W, 1W, 1.5W, 2.5W, 2W, 2.6W, 3W, 3.6W, 5W, 7.5W, 8W, 10W, 15W
Series / Model	MG
Temperature Coefficient	±80 ppm/°C
Tolerance	±0.1%, ±0.25%, ±0.5%, ±1%
Voltage Rating	600V, 1kV, 2kV, 4kV, 6kV, 10kV, 15kV, 20kV, 25kV, 30kV

Caddock MG Series Ordering Info

The MG range is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.

MG Series Products

Product name	SKU
Caddock MG Standard Range	Caddock MG Series	View Product
Caddock MG -15 Range	Caddock MG Series-1	View Product
Caddock MG Extended Range	Caddock MG Series-1	View Product

Caddock MG Series Ordering Info

The MG range is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.
