SRT CRB 1210

Product Features

  • Trimmable non-magnetic, thick film chip resistor
  • Resistance range from 1Ω to 10MΩ
  • Tolerances from ±5% to ±30%
  • TCR from ±50 ppm/°C to ±250 ppm/°C
  • Power rating of 0.35W (at +70°C)
  • Temperature range from -55°C up to +155°C
  • Exempt

The CRB 1210 non-magnetic, trimmable chip resistor series from SRT Resistor Technology offers a resistance range from 1Ω up to 10MΩ, power rating of 0.35W and voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 3/single cut), all in a small 1210 surface mount package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±5.0% and TCR as low as ±50 ppm/°C (between 10Ω and 10MΩ). The CRB 1210 resistor series is suitable for laser and air-abrasive trimming, and offers PtAg (Platinum-Silver), unpassivated contact areas suitable for soldering and conductive gluing. These resistors contain no organics, making them suitable for high vacuum applications.

  • Trimmable thick film chip resistor
  • Available in any resistance between 1Ω and 10MΩ
  • 1210 package
  • Power rating of 0.35W at +70°C
  • Voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 3/single cut)
  • Tolerances as low as ±5.0% over the resistance range of 10Ω up to 10MΩ
  • TCR as low as ±50 ppm/°C over the resistance range of 10Ω to 10MΩ
  • Temperature range from -55°C up to +155°C
  • Suitable for laser and air-abrasive trimming
  • High trimming ratios by special geometries
  • PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
  • Non-magnetic
  • No organics



Non-symmetric tolerances are also available (e.g. -0/+20%), please contact us for more information.

The CRB trimmable non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CRB-HT product pages for further information.

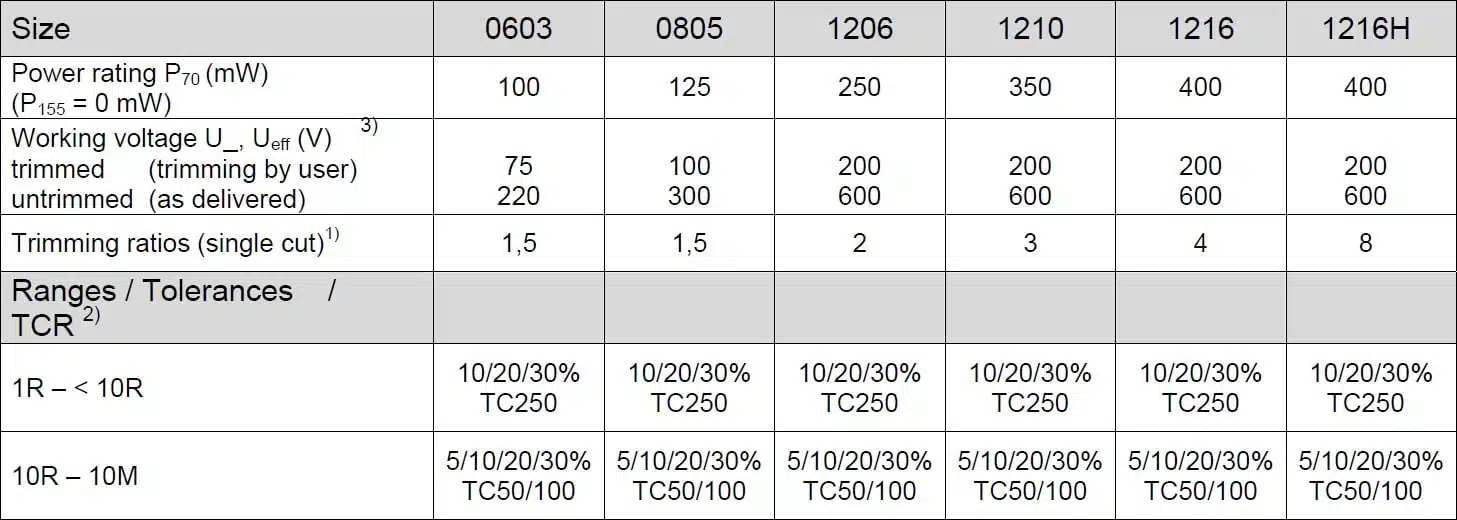

The below table gives full specifications for each resistor model available including the CRB 1210 series:

SRT CRB Specifications
1) Detailed information on request
2) TC50: Temperature range +25°C…+85°C; TK50 not in the resistance range<100R
3)Continuous operating voltage U=√(P*R)



Specifications

Weight 0.00000 kg
Dimensions 0.40 x 2.50 x 3.20mm
Maximum Resistance

10MΩ

Minimum Resistance

Package / Size

Power Rating

Product Type

, , ,

Resistance Value

,

Series / Model

Temperature Coefficient

, ,

Temperature Range (°C)

-55 to +155°C

Termination / Connection

PtAg

Tolerance

, , ,

SKUResistance ValueTemperature CoefficientTolerance
SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±100 ppm/°C±10%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±50 ppm/°C±10%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±100 ppm/°C±20%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±50 ppm/°C±20%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±100 ppm/°C±30%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±50 ppm/°C±30%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±100 ppm/°C±5%

Request Quote

SRT CRB 1210 SeriesCustom (10Ω - 10MΩ)±50 ppm/°C±5%

Request Quote

SRT CRB 1210 SeriesCustom (1Ω - 10Ω)±250 ppm/°C±10%

Request Quote

SRT CRB 1210 SeriesCustom (1Ω - 10Ω)±250 ppm/°C±20%

Request Quote

SRT CRB 1210 SeriesCustom (1Ω - 10Ω)±250 ppm/°C±30%

Request Quote
