SRT Microcéramique High Voltage NP0 Capacitor Series (200V-1kV)

The NP0 (Type 1) high voltage, ultra-stable ceramic chip MLCC capacitor series from SRT Microcéramique offers a vast range of options to suit any demand, including capacitance between 0.47pF to 100nF across a range of chip sizes from 0603 to 3640, selection of tolerances (±0.25pF, ±0.5pF, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%), voltages (200V, 500V and 1000V) and a wide range of terminations. As with all SRT-MC components, the NP0 capacitors are popular in safety-critical industries thanks to their excellent quality and reliability, as well as zero ageing rate up to 10000 hours, zero voltage coefficient of capacitance and change of capacitance with frequency, and very low-temperature coefficient of capacitance. Their operating temperature is between -55°C and +125°C.

• High voltage, ultra-stable ceramic, chip MLCC capacitors
• Available in capacitance ratings between 0.47pF and 100nF
• Available in standard chip sizes from 0603 to 3640
• Dissipation factor under 10.10^-4 at 1V_rms and 1kH (or 1MHz)
• Temperature coefficient of ±30ppm
• Selection of Voltage ratings: 200V, 500V or 1kV
• Selection of tolerances: ±0.25pF, ±0.5pF, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%
• Temperature range between -55°C and +125°C

Termination options available include:

• Palladium-Silver
• Gold-plated Silver
• Tin-plated Nickel
• Tin-plated Copper
• Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a large number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

The dielectric strength test for the NP0 capacitors is performed per method 103 or EIA 198-2-E. For the 200Vdc models, 250% of rated voltage is applied; for the 500Vdc model it is a minimum of 200% of the rated voltage and for the 1000Vdc models the applied voltage is minimum 150% of the rated voltage.

Typical applications for the SRT-MC NP0 series of high voltage ceramic capacitors include:

• Surge suppression
• High voltage applications
• Low dissipation applications

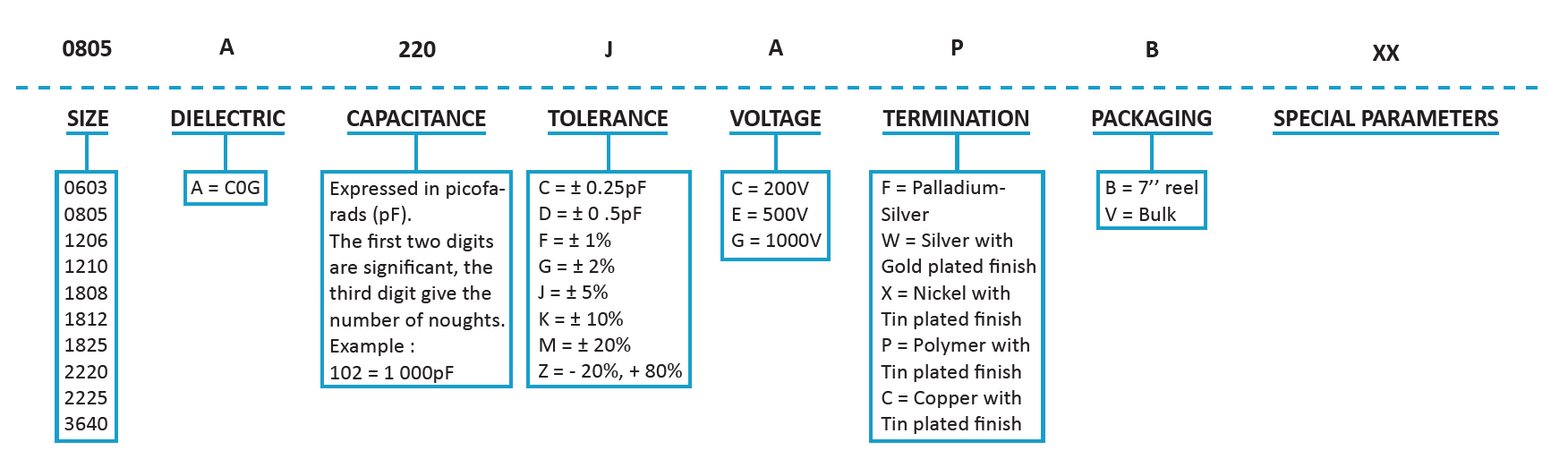

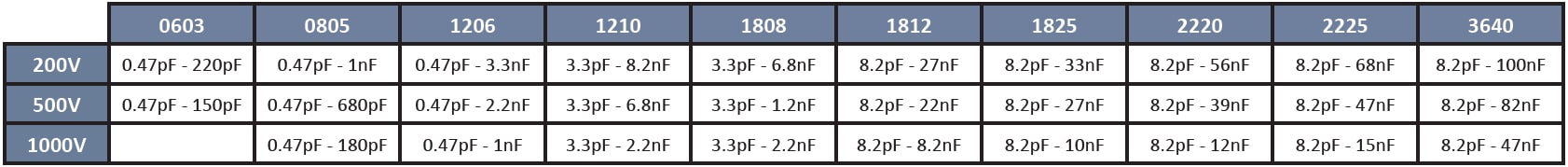

The below table gives the specifications overview for each capacitor model available within the NP0 series between 200V and 1000V:
